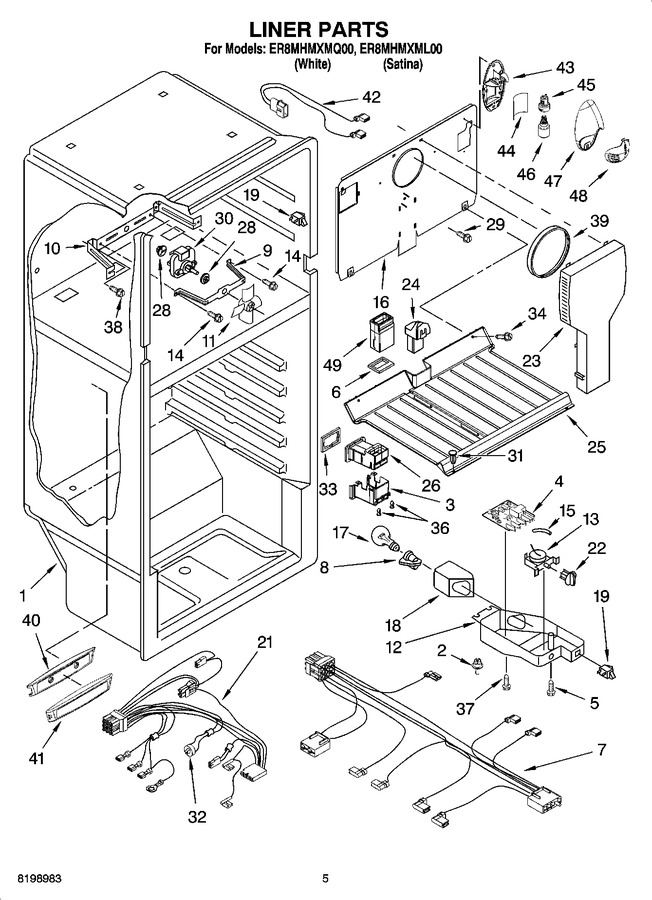

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 939962 | Rivet |
|
$ 11.83 | |||||
| 3 | 2252837 | Cover, Air Diffuser |
|
$ 210.11 | |||||
| 4 | 4388931 | Adaptive Defrost Control (Replaces: 2188160) |
|
Immediately | $ 243.98 | ||||
| 5 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.95 | |||||
| 6 | 2263075 | Gasket, Air Duct |
|
$ 95.40 | |||||
| 7 | 2262434 | Wire Assembly Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 9 | WPW10180172 | Fan Support Bracket (Replaces: 2197404) |
|
$ 40.27 | |||||
| 10 | 2197405 | Fan Mounting Bracket |
|
$ 30.23 | |||||
| 11 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 12 | 2263083 | Control Box |
|
$ 130.74 | |||||
| 13 | WPW10511937 | Thermostat (Replaces: 2201754) |
|
Immediately | $ 180.41 | ||||
| 14 | WP489399 | Screw (Replaces: 489399) |
|
$ 6.95 | |||||
| 15 | WP2196003 | Thermostat Tube Barrier (Replaces: 1118680) |
|
$ 7.95 | |||||
| 16 | 2222030 | Cover, Evaporator |
|
- | |||||
| 17 | W11679940 | Light Bulb (Replaces: 2252970) |
|
Immediately | $ 11.30 | ||||
| 18 | W11034434 | Light Shield (Replaces: 9791702) |
|
Immediately | $ 103.73 | ||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 21 | 2261881 | Wiring, Freezer |
|
- | |||||
| 22 | WP2202885 | Control Knob (Replaces: 2202885) |
|
$ 26.38 | |||||
| 23 | 9790408 | Air Tower |
|
$ 85.98 | |||||
| 24 | 2197052 | Hood And Foil Assembly |
|
- | |||||
| 25 | 2174798 | Freezer Floor |
|
$ 70.51 | |||||
| 26 | 2256715 | Air Diffuser |
|
$ 84.13 | |||||
| 28 | WP2264462 | Grommet-motor (Replaces: 2197380) |
|
Immediately | $ 43.97 | ||||
| 29 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 30 | WPW10188389 | Evaporator Fan Motor (Replaces: 2201212) |
|
Immediately | $ 76.83 | ||||
| 31 | 489115 | Fastener-snap In |
|
$ 5.51 | |||||
| 32 | WP2211224 | Defrost, Bi-metal (Replaces: 2211224) |
|
$ 115.01 | |||||
| 33 | 2252846 | Gasket, Body Air Diffuser |
|
- | |||||
| 34 | WP489474 | Screw (Replaces: 2262178) |
|
Immediately | $ 7.97 | ||||
| 36 | 2256983 | Rivet |
|
$ 38.78 | |||||
| 37 | WP487353 | Screw (Replaces: 488693) |
|
$ 7.57 | |||||
| 38 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 39 | 2213999 | Ring, Evaporator Cover |
|
- | |||||
| 40 | 2256958 | Insulation (4) |
|
- | |||||
| 41 | 2263082 | Grill (4) |
|
$ 67.42 | |||||
| 42 | 2261879 | Wiring Harness, Freezer Light |
|
- | |||||
| 43 | 2256949 | Light Holder |
|
- | |||||
| 44 | 2256948 | Deflector, Light |
|
$ 38.16 | |||||
| 45 | W10545295 | Light Socket (Replaces: 2263413) |
|
- | |||||
| 46 | W10888319 | Light Bulb (Replaces: R-31244) |
|
Immediately | $ 14.41 | ||||
| 47 | 2256946 | Cover, Light Holder |
|
- | |||||
| 48 | 2256947 | Lens, Light |
|
- | |||||
| 49 | 2252831 | Air Duct Assembly |
|
$ 102.03 |
