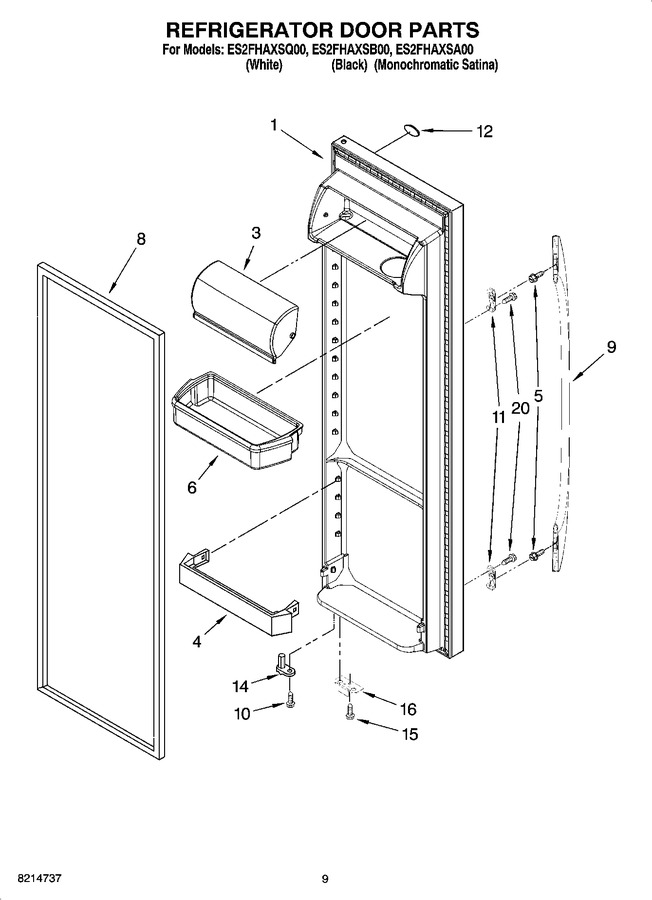

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2305969B		Refrigerator Door (includes Item 8) (black)		Appelez-nous	-
1	2305969LA		Refrigerator Door (includes Item 8) (monochromatic Satina)		Appelez-nous	-
1	2305969W		Refrigerator Door (includes Item 8) (white)		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 72.80
5	8533920		Screw				$ 5.27
6	WPW10321304		Door Bin (3)   (Replaces: 2179607K)			Immediately	$ 44.73
8	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221300)				$ 317.32
8	2159081		Door Gasket, Magnetic (black)   (Replaces: 2221311)				$ 319.60
9	2313345US		Handle (universal Silver)		Appelez-nous	-
9	2313345W		Handle (white)		Appelez-nous	-
9	W10187086		Handle (black)   (Replaces: 2313345B)				$ 377.97
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
11	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
12	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 10.87
16	2200082		Bracket, Door Stop (chrome)				$ 5.83
16	2200082B		Bracket, Door Stop (black)				$ 42.44
20	WP489491		Screw (4)   (Replaces: 489491)				$ 6.95
