SELECT A DIAGRAM

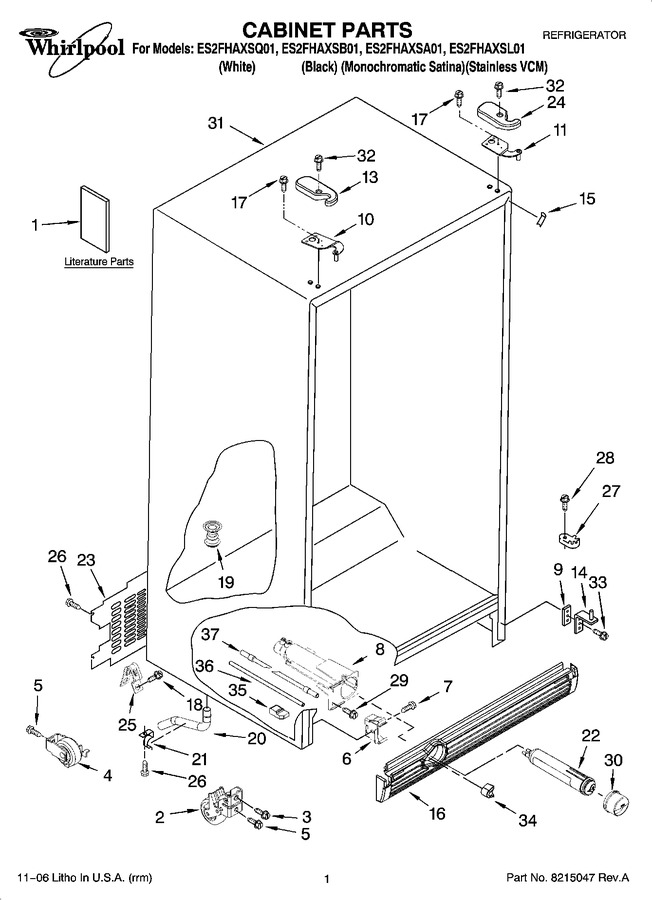

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Control Parts


12 - Air Flow Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2261037		Instruction Sheet, Door Removal		Appelez-nous	-
1	2305869		Service & Wiring Sheet		Appelez-nous	-
1	2318626		Energy Guide		Appelez-nous	-
1	2220407		Modular Icemaker Service Sheet		Appelez-nous	-
1	2318584		Use & Care Guide		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489478		Screw   (Replaces: 489478)				$ 7.75
8	WPW10121138		Housing, Water Filter   (Replaces: 2260507)			Immediately	$ 112.91
9	2209697		Shim (2)				$ 41.25
10	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
11	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
13	WP2203407B		Hinge Cover (fc) (black)   (Replaces: 2203407B)				$ 19.52
13	2203407AP		Hinge Cover, Fc (apollo Gray)		Appelez-nous	-
13	WP2203407W		Hinge Cover (fc) (white)   (Replaces: 2203407W)				$ 20.75
14	8201707		Hinge Bottom (2)   (Replaces: 2304322)				$ 88.90
15	2315169		Filler, Wrapper (apollo Gray)		Appelez-nous	-
15	2196097		Filler, Wrapper (black)		Appelez-nous	-
15	2196094		Filler, Wrapper (white)		Appelez-nous	-
16	2260501B		Grille (black)		Appelez-nous	-
16	2260501AP		Grille (apollo Gray)		Appelez-nous	-
16	WPW10283955		Grille (white)   (Replaces: 2260501W)				$ 119.15
17	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
18	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
19	W11566763		Drain Fitting   (Replaces: 940139)			Immediately	$ 50.90
20	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
21	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
22	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
23	WP2188756		Cover, Unit   (Replaces: 2200455)				$ 141.67
24	WP2203408B		Hinge Cover (rc) (black)   (Replaces: 2203408B)				$ 18.63
24	WP2203408W		Hinge Cover (rc) (white)   (Replaces: 2203408W)				$ 20.97
24	2203408AP		Hinge Cover, Rc (apollo Gray)				$ 94.47
25	549193		Clamp-service Cord				$ 13.39
26	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
27	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
28	WP489483		Screw   (Replaces: 489483)				$ 10.87
29	WP489500		Screw   (Replaces: 489500)				$ 7.78
30	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 28.26
30	WP2260518AP		Cap, Water Filter (apollo Gray)   (Replaces: 2260502AP)				$ 54.84
30	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 31.90
32	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
33	WP489497		Screw (4)   (Replaces: 3400113)			Immediately	$ 29.09
34	2260503W		Button, Water Filter (white)			Immediately	$ 34.16
34	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 72.78
34	2260503AP		Button, Water Filter (apollo Gray)				$ 11.15
35	2260519		Block, Housing Support		Appelez-nous	-
36	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 115.54
37	WP2304697		Tube, Filter Inlet   (Replaces: 2304697)				$ 137.59

    View Diagram in Separate Window       Print Part List
