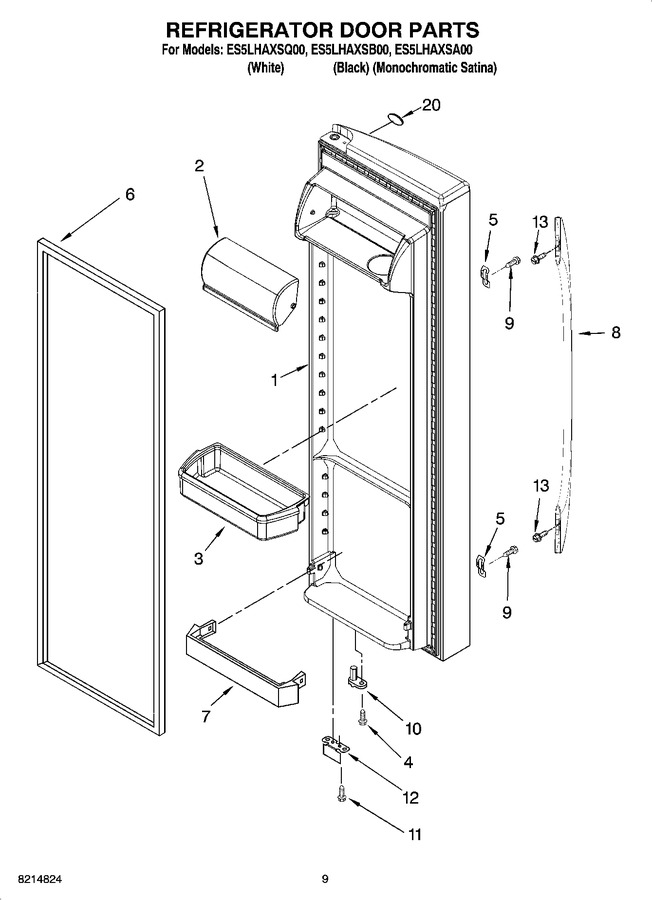

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2315328W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	2315328B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	2315328LA		Refrigerator Door (includes Item 6) (monochromatic Satina)		Appelez-nous	-
2	WP2256101		Compartment Door   (Replaces: 2256101)			Immediately	$ 85.16
3	WPW10321304		Door Bin (3)   (Replaces: 2304235K)			Immediately	$ 44.73
4	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
5	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 317.14
7	WP2156022		Shelf Bin   (Replaces: 2156022)			Immediately	$ 72.80
8	2313345W		Handle (white)		Appelez-nous	-
8	W10187086		Handle (black)   (Replaces: 2313345B)				$ 377.97
8	2313345US		Handle (universal Silver)		Appelez-nous	-
9	WP489491		Screw   (Replaces: 489491)				$ 6.95
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	2200082B		Bracket, Door Stop (black)				$ 42.44
12	2200082		Bracket, Door Stop (chrome)				$ 5.83
13	8533920		Screw				$ 5.27
20	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
