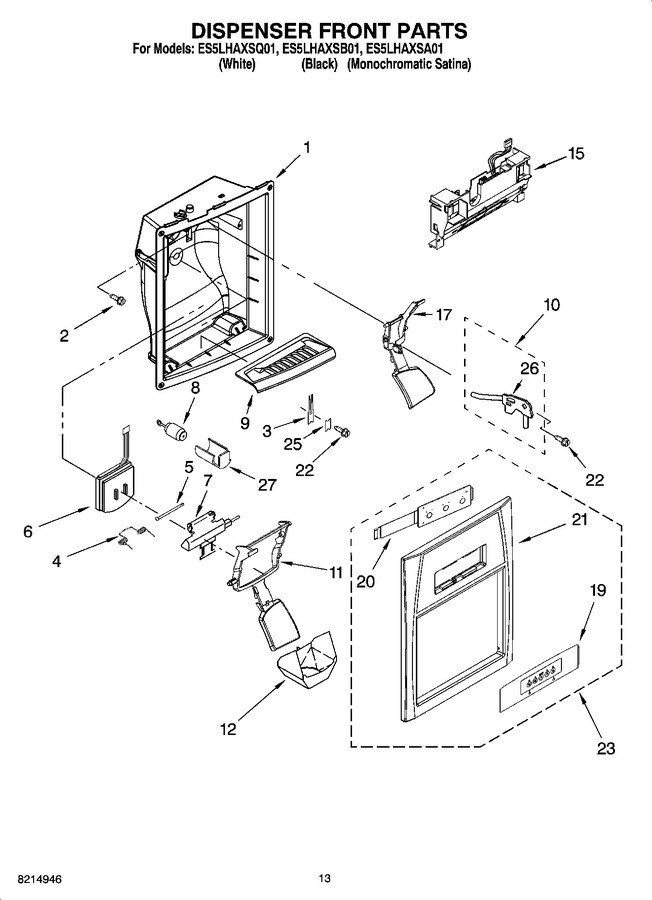

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 12.36
4	WPW10224328		Spring, Torsion   (Replaces: 2180209)				$ 87.40
5	WP2196195		Pin   (Replaces: 2196195)				$ 15.31
6	WP2180353		Door, Ice   (Replaces: 2180353)			Immediately	$ 26.83
7	2304355		Door Mechanism Assembly		Appelez-nous	-
8	2205686		Mechanism Delay		Appelez-nous	-
9	WP2207007B		Grille, Overflow (black)   (Replaces: 2207007B)				$ 74.04
9	2207007W		Grille, Overflow (white)				$ 29.56
9	2207007AP		Grille, Overflow (apollo Gray)		Appelez-nous	-
10	8201537		Water Fitting Assembly (includes Water Tube)   (Replaces: 2304317)				$ 140.84
11	2255431AP		Lever, Ice Dispenser (apollo Gray)				$ 49.57
11	WP2255431B		Lever, Ice Dispenser (black)   (Replaces: 2255431B)				$ 110.69
11	WP2255431W		Lever, Ice Dispenser (white)   (Replaces: 2255431W)				$ 107.19
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 30.02
15	2303942		Control Mounting Bracket		Appelez-nous	-
17	WP2255432AP		Lever, Water Dispenser (apollo Gray)   (Replaces: 2255432AP)				$ 122.03
17	WP2255432B		Lever, Water Dispenser (black)   (Replaces: 2255432B)				$ 111.36
17	WP2255432W		Lever, Water Dispenser (white)   (Replaces: 2255432W)				$ 106.00
22	WP3400906		Screw   (Replaces: 489000)				$ 9.05
23	2318433W		Front Cover Assembly (includes Items 19, 20 & 21) (white)		Appelez-nous	-
23	2318433B		Front Cover Assembly (includes Items 19, 20 & 21) (black)		Appelez-nous	-
23	2318433AP		Front Cover Assembly (includes Items 19, 20 & 21) (apollo Gray)		Appelez-nous	-
25	WP2195051		Strain Relief   (Replaces: 2195051)				$ 12.54
26	WP2304673		Bracket, Dispenser   (Replaces: 2304673)				$ 16.38
27	2252127		Sleeve, Display Mechanism				$ 22.00

    View Diagram in Separate Window       Print Part List
