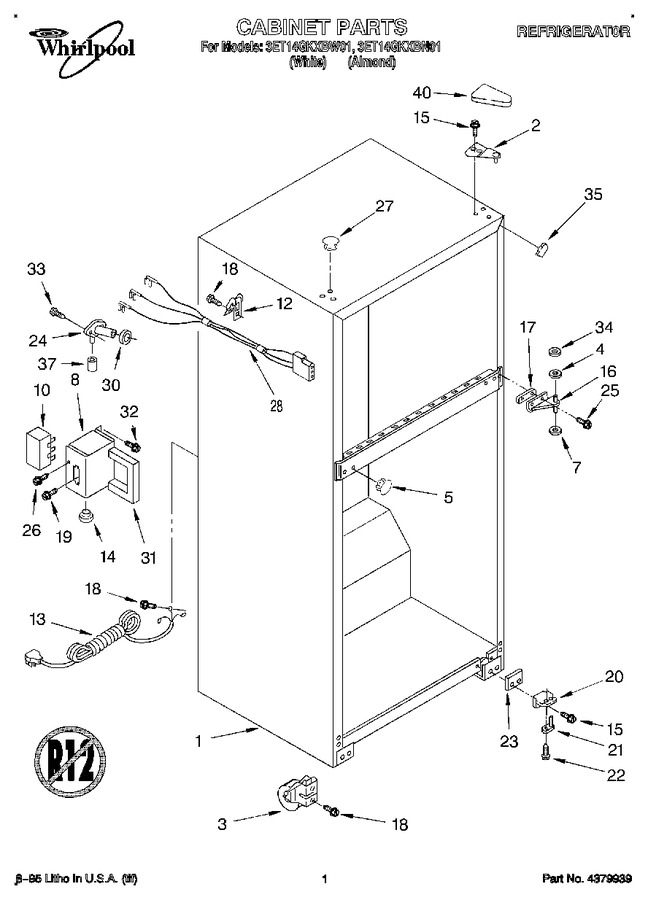

01 - Cabinet
02 - Door
03 - Liner, Lit/optional
04 - Unit
05 - Shelf
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | WP2189412 | Hinge, Top (Replaces: 2157591) |
|
$ 120.23 | |||||
| 3 | 9790461 | Roller-front |
|
- | |||||
| 4 | WP487576 | Washer, 1/16 (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 5 | 1129062 | Hole Plug |
|
- | |||||
| 7 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 8 | 2158579 | Enclosure, Terminal Block |
|
- | |||||
| 10 | 1129346 | Terminal Block |
|
- | |||||
| 12 | 489348 | Clamp-cord |
|
- | |||||
| 13 | 1129332 | Service Cord |
|
- | |||||
| 14 | 1129449 | Bushing |
|
- | |||||
| 15 | WP999367 | Screw (Replaces: 489367) |
|
$ 8.56 | |||||
| 16 | WP2166037 | Hinge, Center (Replaces: 2166037) |
|
$ 85.08 | |||||
| 17 | 2166043 | Shim, Hinge Center |
|
$ 69.76 | |||||
| 18 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 | |||||
| 19 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 11.36 | ||||
| 20 | WP2325482 | Hinge Butt (Replaces: 2166094) |
|
Immediately | $ 80.00 | ||||
| 21 | 9791682 | Hinge-pin Bott. |
|
$ 26.60 | |||||
| 22 | 488714 | Screw |
|
$ 5.48 | |||||
| 23 | WP2201567 | Shim, Bottom Hinge (Replaces: 2166047) |
|
Immediately | $ 8.16 | ||||
| 24 | WP2196157 | Fitting,water Tube (Replaces: 2174760) |
|
Immediately | $ 12.59 | ||||
| 25 | WP999367 | Screw (Replaces: 489105) |
|
$ 8.56 | |||||
| 26 | 00489346 | Screw (Replaces: 489346) |
|
$ 380.15 | |||||
| 27 | WP2151652 | Hole Plug (white) (Replaces: 2151652) |
|
$ 22.87 | |||||
| 27 | 2151653 | Hole Plug (almond) |
|
- | |||||
| 28 | 2209657 | Wire Assembly (Replaces: 2174913) |
|
- | |||||
| 30 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 31 | 2167227 | Gasket |
|
- | |||||
| 32 | WP250830 | Screw (Replaces: 489048) |
|
$ 8.78 | |||||
| 33 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 34 | 489200 | Washer, Black (7/32) |
|
$ 7.75 | |||||
| 35 | W10859322 | Corner Filler (white) (Replaces: 2166003) |
|
$ 8.09 | |||||
| 35 | 2166004 | Corner Filler (almond) |
|
- | |||||
| 37 | WP487996 | Cap Bushing (Replaces: 487996) |
|
$ 8.67 | |||||
| 40 | 2160404 | Cover, Hinge (almond) |
|
- | |||||
| 40 | WP2213360 | Cover-hinge (white) (Replaces: 2160403) |
|
$ 20.19 |
