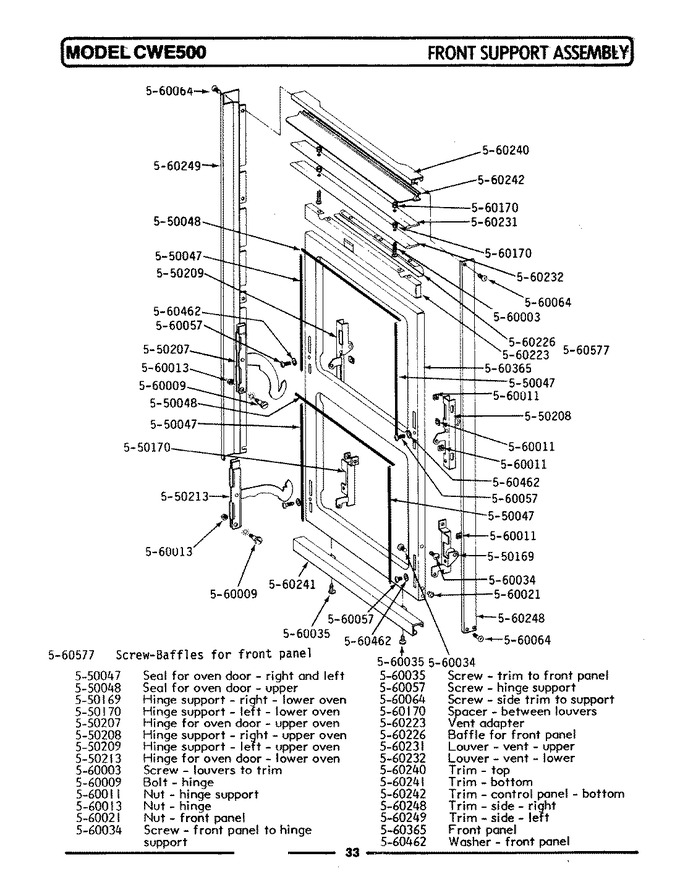

03 - Front Support Assembly


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


04 - Oven Assembly


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	560577		Screw		Appelez-nous	-
2	550047		Seal For Oven Door		Appelez-nous	-
3	WP7212P006-60		Seal For Oven Door   (Replaces: 550048)				$ 117.57
4	550169		Hinge Support-right		Appelez-nous	-
5	550170		Hinge Support-left		Appelez-nous	-
6	550207		Hinge For Oven Door		Appelez-nous	-
7	550208		Hinge Support-right		Appelez-nous	-
8	550209		Hinge Support-left		Appelez-nous	-
9	550213		Hinge For Broiler Door		Appelez-nous	-
10	560003		Screw		Appelez-nous	-
11	560009		Bolt		Appelez-nous	-
12	M0282009		Nut   (Replaces: 560011)				$ 13.40
13	560013		Nut		Appelez-nous	-
14	560021		Nut		Appelez-nous	-
15	560034		Screw		Appelez-nous	-
16	560035		Screw-frame To Inner Door		Appelez-nous	-
17	560057		Screw		Appelez-nous	-
18	560064		Screw		Appelez-nous	-
19	560170		Spacer-oven Door Handle		Appelez-nous	-
20	560223		Vent Adapter		Appelez-nous	-
21	560226		Baffle		Appelez-nous	-
22	560231		Louver For Vent		Appelez-nous	-
23	560232		Louver For Vent		Appelez-nous	-
24	560240		Trim-top		Appelez-nous	-
25	560241		Trim-bottom		Appelez-nous	-
26	560242		Trim For Control Panel		Appelez-nous	-
27	560248		Side Trim-right		Appelez-nous	-
28	560249		Side Trim-left		Appelez-nous	-
29	560365		Front Panel		Appelez-nous	-
30	560462		Washer		Appelez-nous	-
