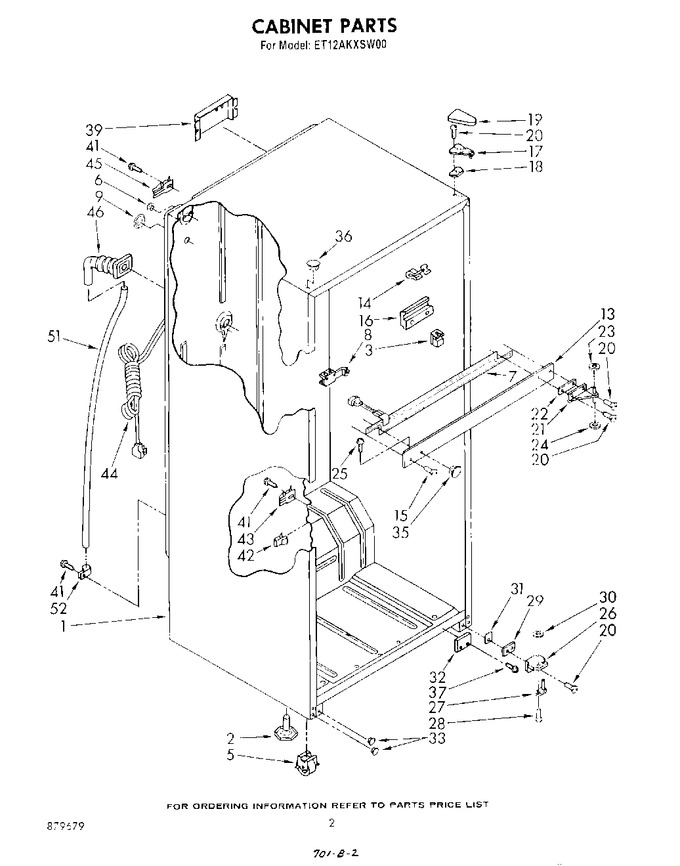

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	W11117769		Leveler (4)   (Replaces: 937220)			Immediately	$ 18.45
3	940024		Spacer (2)		Appelez-nous	-
5	937216		Roller (4)		Appelez-nous	-
6	536195		Hole Plug		Appelez-nous	-
7	1108480		Heater, Mullion		Appelez-nous	-
8	935692		Center Rail, Bracket (2)		Appelez-nous	-
9	655411		Hole Plug		Appelez-nous	-
13	944868		Center, Rail (white)		Appelez-nous	-
13	1103691		Center, Rail (toast)		Appelez-nous	-
13	1103692		Center, Rail (platinum)		Appelez-nous	-
13	944873		Center, Rail (almond)		Appelez-nous	-
13	944871		Center Rail (golden Harvest)		Appelez-nous	-
14	1114428		Breaker, Trim Clip		Appelez-nous	-
15	WP488729		Screw   (Replaces: 488783)			Immediately	$ 7.79
16	939034		Center, Rail Shim		Appelez-nous	-
17	1100513		Shim, Hinge Top		Appelez-nous	-
18	1100509		Shim, Top Hinge		Appelez-nous	-
19	1100172		Hinge Cover (toast)		Appelez-nous	-
19	989194		Hinge Cover (almond)		Appelez-nous	-
19	842010		Hinge Cover (white)		Appelez-nous	-
19	989896		Hinge Cover (golden Harvest)		Appelez-nous	-
19	1100173		Hinge Cover (platinum)		Appelez-nous	-
20	488949		Screw (repair)		Appelez-nous	-
20	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 7.86
21	944788		Hinge, Center				$ 32.65
22	836155		Shim, Hinge Center		Appelez-nous	-
23	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
24	WP488296		Washer, 11/64   (Replaces: 488296)				$ 7.19
25	WP488729		Screw, 8 X 1/2   (Replaces: 487900)			Immediately	$ 7.79
26	944783		Hinge Butt, Bottom		Appelez-nous	-
27	654366		Hinge Pin, Bottom				$ 27.15
28	488714		Screw 10-32 X 5/16				$ 5.48
29	935737		Shim, Bottom		Appelez-nous	-
30	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
31	935743		Tap Plate		Appelez-nous	-
32	1100697		Tube, Rail Cover (platinum)		Appelez-nous	-
32	935707		Rail, Cover (white)		Appelez-nous	-
32	935709		Rail, Cover (golden Harvest)		Appelez-nous	-
32	935711		Rail, Cover (almond)		Appelez-nous	-
32	1100698		Tube, Rail Cover (toast)		Appelez-nous	-
33	941416		Hole, Plug (2) (white)		Appelez-nous	-
33	941419		Hole Plug (2) (golden Harvest)		Appelez-nous	-
33	941417		Hole, Plug (2) (almond)		Appelez-nous	-
33	1100223		Hole Plug (2) (toast)		Appelez-nous	-
33	1100224		Hole Plug (2) (platinum)		Appelez-nous	-
35	1100687		Hole Plug (platinum)		Appelez-nous	-
35	1100688		Hole Plug (toast)		Appelez-nous	-
35	940086		Hole Plug (white)		Appelez-nous	-
35	940087		Hole Plug (almond)		Appelez-nous	-
35	940089		Hole Plug (golden Harvest)		Appelez-nous	-
36	989195		Hole Plug (2) (almond)		Appelez-nous	-
36	842031		Hole Plug (2) (white)		Appelez-nous	-
36	1100177		Hole Plug (2) (platinum)		Appelez-nous	-
36	1100176		Hole Plug (2) (toast)		Appelez-nous	-
36	989876		Hole Plug (2) (golden Harvest)		Appelez-nous	-
37	488895		Screw		Appelez-nous	-
39	946218		Cover, Wiring		Appelez-nous	-
41	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
42	W10812038		Clip, Wire (4)   (Replaces: 939054)		Appelez-nous	-
43	549193		Clamp-service Cord				$ 13.39
44	937360		Cord, Service		Appelez-nous	-
45	937357		Clamp		Appelez-nous	-
46	937062		Fitting, Drain		Appelez-nous	-
51	8316810		Tube, Drain   (Replaces: 1110680)				$ 119.73
52	488946		Clamp (2)				$ 20.45
