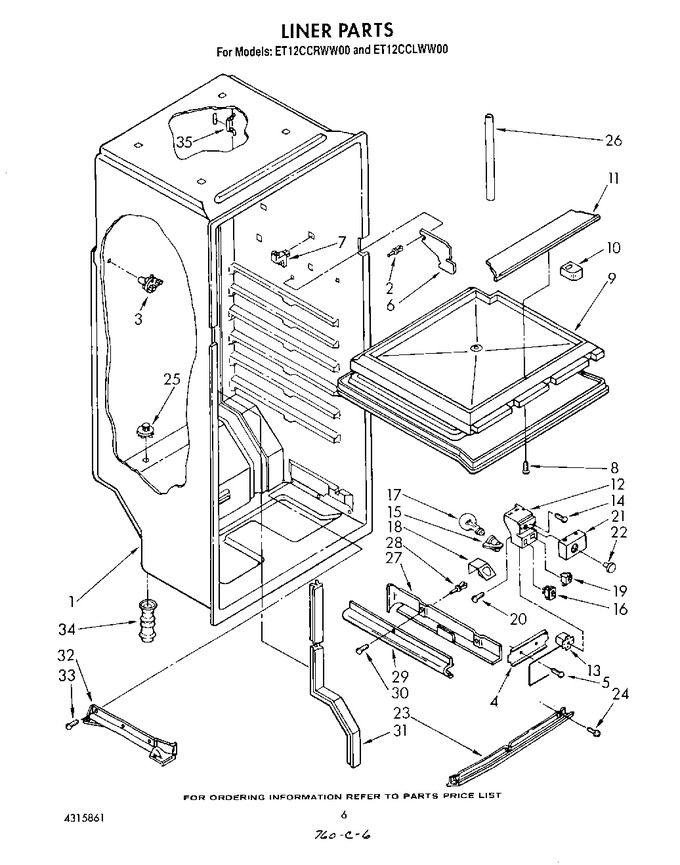

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	939962		Plastic Rivet (2)				$ 12.42
3	939989		Screw Anchor		Appelez-nous	-
4	510714		Clip, Thermostat		Appelez-nous	-
5	W11693756		Screw, 8 X 5/8 (2)   (Replaces: 487235)			Immediately	$ 14.76
6	937228		Electric Shield		Appelez-nous	-
7	939203		Support Stud (4)		Appelez-nous	-
8	WP488163		Screw, 8 X 13/16 (2)   (Replaces: 488208)				$ 7.92
9	944883		Insulation, Compartment Separator Assembly		Appelez-nous	-
10	944886		Insulation, Crossover Tube		Appelez-nous	-
11	944890		Breaker Trim, Mullion		Appelez-nous	-
12	939089		Control Box		Appelez-nous	-
13	1100623		Thermostat		Appelez-nous	-
14	WP489128		Screw, 8-32 X 3/8 (2)   (Replaces: 488500)				$ 11.40
15	4387478		Socket Assembly   (Replaces: 851067)			Immediately	$ 115.67
16	936115		Switch, Power Miser		Appelez-nous	-
17	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 11.30
18	937230		Light Shield		Appelez-nous	-
19	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 39.09
20	WP489069		Screw, 8 X 1/2   (Replaces: 488874)			Immediately	$ 8.40
21	1124586		Cover, Control Box		Appelez-nous	-
22	845233		Control Knob		Appelez-nous	-
23	944978		Drain Trough		Appelez-nous	-
24	WP488729		Screw, 8 X 1/2 (3)   (Replaces: 488320)			Immediately	$ 8.28
25	934607		Drain, Ferrule Cap		Appelez-nous	-
26	946459		Tube Cover		Appelez-nous	-
27	939957		Wire Cover (rear)		Appelez-nous	-
28	939961		Plastic, Rivet		Appelez-nous	-
29	939960		Wire Cover (front)		Appelez-nous	-
30	486214		Screw 8-15 X 1/2		Appelez-nous	-
31	937032		Tube Entry Cover (rear)		Appelez-nous	-
32	941776		Tube Entry Cover (bottom)		Appelez-nous	-
33	WP488729		Screw   (Replaces: 489196)			Immediately	$ 8.28
34	842256		Fitting, Drain		Appelez-nous	-
35	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
35	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
35	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
35	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
35	833938		Kit, Terminal Connector				$ 8.47
35	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
35	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
35	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
35	533998		Speed Clip (3)		Appelez-nous	-
35	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
35	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
35	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
35	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
35	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
35	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
35	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
35	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
35	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
35	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
35	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
35	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
35	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	LIT4315861		Parts List		Appelez-nous	-
	LIT1127523		Service & Wiring Sheet		Appelez-nous	-
	LIT1124598		Guide, Use & Care		Appelez-nous	-
	LIT1124599		Energy Label		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	1117510		Torx Key				$ 5.84
