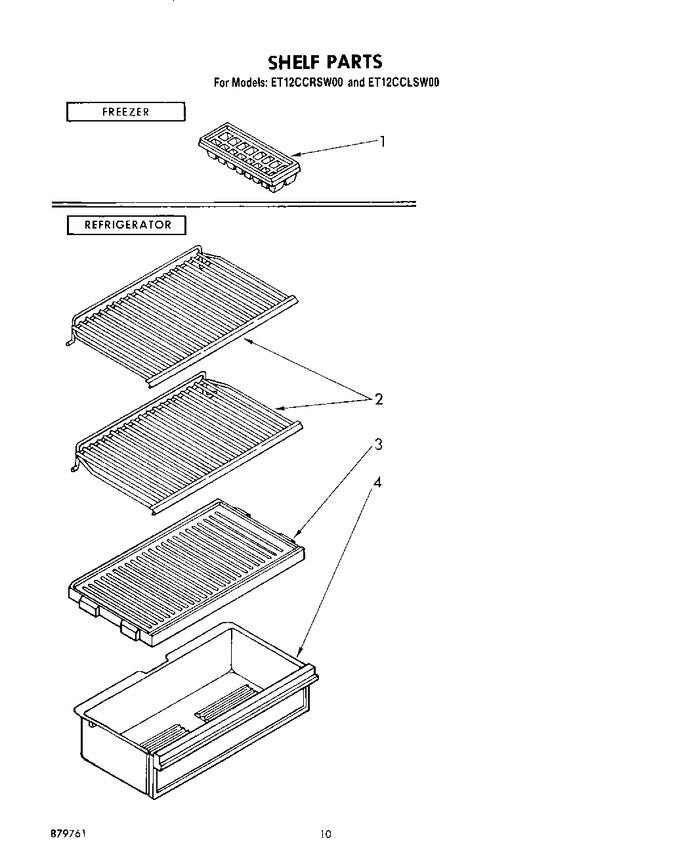

06 - Shelf, Lit/optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP841180A | Ice Tray (2) (Replaces: 841180) |
|
Immediately | $ 47.84 | ||||
| 2 | 944892 | Pullout Shelf (2) |
|
- | |||||
| 3 | 944897 | Cover, Crisper |
|
- | |||||
| 4 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 4 | 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 54.01 | |||||
| 4 | 1114526 | Pan, Crisper |
|
- | |||||
| 4 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 94.14 | |||||
| 4 | 350941 | Leveler, Enamel (13 Oz. Spray Can) |
|
- | |||||
| 4 | 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | |||||
| 4 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 4 | 261890 | Xenamel, Harvest Gold (13 Oz. Spray Can) |
|
- | |||||
| 4 | 285365 | Paint, Spray (13 Oz.) (toast) |
|
- | |||||
| 4 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 4 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 4 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 4 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | |||||
| 4 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 4 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 4 | 261891 | Enamel, Golden Harvest (1 Qt. Uncut) |
|
- | |||||
| 4 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 4 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 4 | 285368 | Enamel, Platinum (1 Qt. Uncut) |
|
- | |||||
| 4 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 4 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 4 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 243.14 | |||||
| 4 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 4 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | |||||
| 4 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | |||||
| 4 | 484310 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 4 | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| 4 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 4 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 4 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 4 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 4 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 4 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | |||||
| 4 | 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | |||||
| 4 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 4 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| LIT879761 | Parts List |
|
- | ||||||
| LIT1116122 | Energy Label |
|
- | ||||||
| LIT1114003 | Care & Use Guide |
|
- | ||||||
| LIT938399 | Service & Wiring Sheet |
|
- | ||||||
| 1117510 | Torx Key |
|
$ 5.84 |
