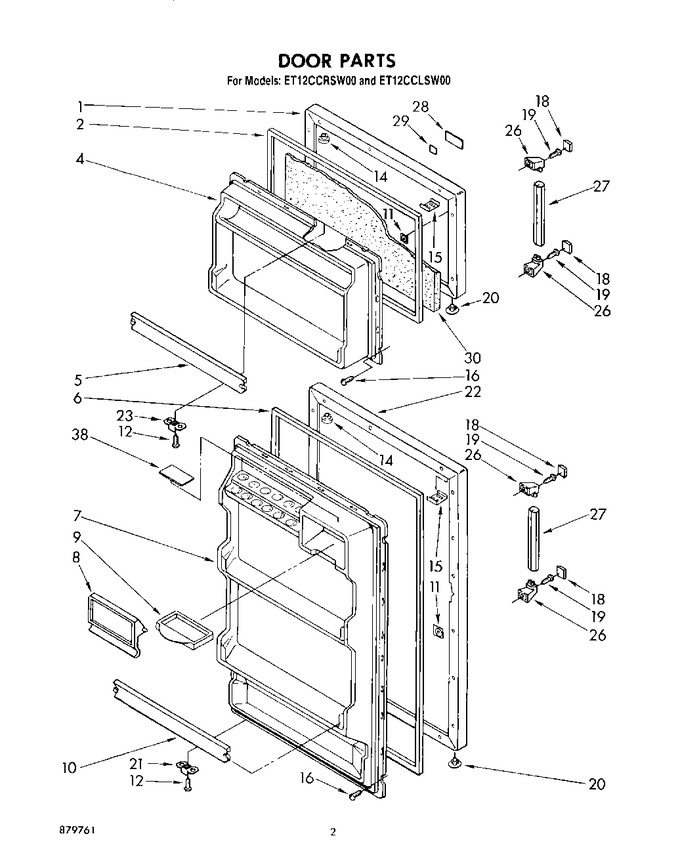

SELECT A DIAGRAM

02 - Door


03 - Cabinet


04 - Liner


05 - Unit


06 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	944941		Freezer Door Panel (also Order Item 30) (golden Harvest)		Appelez-nous	-
1	1124103		Freezer Door Panel (also Order Item 30) (platinum)		Appelez-nous	-
1	1124102		Freezer Door Panel (also Order Item 30) (toast)		Appelez-nous	-
1	944943		Freezer Door Panel (also Order Item 30) (almond)		Appelez-nous	-
1	944932		Freezer Door Panel (also Order Item 30) (white)		Appelez-nous	-
1	944935		Freezer Door Panel (also Order Item 30) (golden Harvest)		Appelez-nous	-
1	944937		Freezer Door Panel (also Order Item 30) (almond)		Appelez-nous	-
1	1124100		Freezer Door Panel (also Order Item 30) (toast)		Appelez-nous	-
1	1124101		Freezer Door Panel (also Order Item 30) (platinum Freezer Door Panel (l.h.))		Appelez-nous	-
1	944938		Freezer Door Panel (also Order Item 30) (white)		Appelez-nous	-
2	1110568		Freezer Door Gasket		Appelez-nous	-
4	1104910		Panel, Interior Door (freezer)		Appelez-nous	-
5	1116120		Trim, Door Shelf		Appelez-nous	-
6	1104905		Refrigerator Door Gasket		Appelez-nous	-
7	1104904		Panel, Interior Door		Appelez-nous	-
8	1110148		Butter Door		Appelez-nous	-
9	520747		Tray, Butter		Appelez-nous	-
10	1116116		Trim, Door		Appelez-nous	-
11	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
12	WP488921		Screw   (Replaces: 489220)			Immediately	$ 7.75
12	489221		Screw (repair)		Appelez-nous	-
14	509929		Cap, Hinge Sleeve (4)		Appelez-nous	-
15	943185		Tap Plate (2)		Appelez-nous	-
16	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 7.67
16	WP489069		Screw, 8 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
18	946742		Cover, Screw		Appelez-nous	-
19	00489246		Screw   (Replaces: 489246)				$ 40.31
20	1100196		Hole Plug (2) (toast)		Appelez-nous	-
20	534927		Hole Plug (2) (white)		Appelez-nous	-
20	989197		Hole Plug (2) (almond)		Appelez-nous	-
20	989879		Hole Plug (2) (golden Harvest)		Appelez-nous	-
20	1100197		Hole Plug (2) (platinum)		Appelez-nous	-
21	944036		Bracket, Door Stop		Appelez-nous	-
22	1120999		Refrigerator Door Panel (platinum)		Appelez-nous	-
22	1120998		Refrigerator Door Panel (toast)		Appelez-nous	-
22	944921		Refrigerator Door Panel (almond)		Appelez-nous	-
22	1120997		Refrigerator Door Panel (platinum Refrigerator Door Panel (l.h.))		Appelez-nous	-
22	944916		Refrigerator Door Panel (white)		Appelez-nous	-
22	944919		Refrigerator Door Panel (golden Harvest)		Appelez-nous	-
22	944910		Refrigerator Door Panel (white)		Appelez-nous	-
22	944913		Refrigerator Door Panel (golden Harvest)		Appelez-nous	-
22	944915		Refrigerator Door Panel (almond)		Appelez-nous	-
22	1120996		Refrigerator Door Panel (toast)		Appelez-nous	-
23	944035		Bracket, Door Stop		Appelez-nous	-
26	946737		Handle, End		Appelez-nous	-
27	1110069		Handle, Center		Appelez-nous	-
28	945119		Nameplate		Appelez-nous	-
29	991259		Tape		Appelez-nous	-
30	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
38	LIT1114003		Label, Use & Care Guide		Appelez-nous	-
