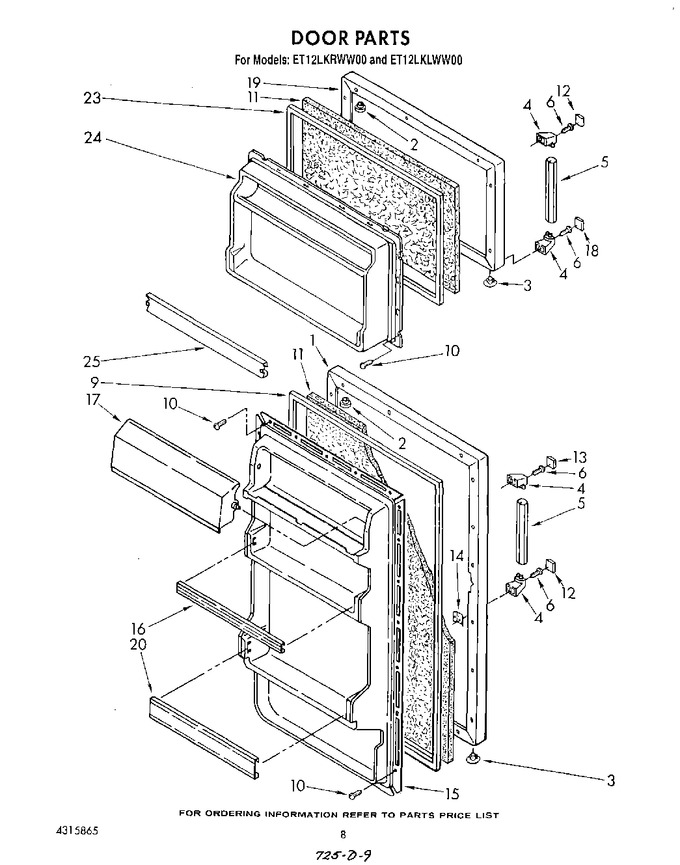

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	944921		Refrigerator Door Panel (also Order Item 11) (almond (l.h.))		Appelez-nous	-
1	944910		Refrigerator Door Panel (also Order Item 11) (white (r.h.))		Appelez-nous	-
1	944915		Refrigerator Door Panel (also Order Item 11) (almond (r.h.))		Appelez-nous	-
1	944916		Refrigerator Door Panel (also Order Item 11) (white (l.h.))		Appelez-nous	-
2	509929		Cap, Hinge Sleeve (4)		Appelez-nous	-
3	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	534927		Hole Plug (2) (white)		Appelez-nous	-
4	1124591		End Cap, Handle		Appelez-nous	-
5	1124592		Handle, Center		Appelez-nous	-
6	00489246		Screw   (Replaces: 489246)				$ 40.31
9	1110569		Door Gasket, Magnetic		Appelez-nous	-
10	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
10	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 7.67
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	934724		Cover, Screw		Appelez-nous	-
13	1124593		Cover, Screw		Appelez-nous	-
14	WP939101		Screw Anchor (4)   (Replaces: 939101)				$ 7.50
15	1108502		Interior Door Panel (refrigerator)		Appelez-nous	-
16	1116116		Trim, Door Shelf		Appelez-nous	-
17	1124657		Compartment Door		Appelez-nous	-
18	1124596		Cover, Screw		Appelez-nous	-
19	944932		Freezer Door Panel (also Order Item 11) (white (r.h.))		Appelez-nous	-
19	944943		Freezer Door Panel (also Order Item 11) (almond (l.h.))		Appelez-nous	-
19	944938		Freezer Door Panel (also Order Item 11) (white (l.h.))		Appelez-nous	-
19	944937		Freezer Door Panel (also Order Item 11) (almond (r.h.))		Appelez-nous	-
20	1124656		Trim, Door Shelf		Appelez-nous	-
23	1110568		Door Gasket, Magnetic		Appelez-nous	-
24	1104910		Panel, Interior Door (freezer)		Appelez-nous	-
25	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
25	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
25	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
25	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
25	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
25	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
25	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
25	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
25	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
25	1116120		Trim, Door Shelf		Appelez-nous	-
25	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
25	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
25	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
25	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
25	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
25	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
25	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
25	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
25	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
25	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
25	833938		Kit, Terminal Connector				$ 8.07
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
	350942		Primer White (13 Oz. Spray Can)				$ 89.66
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	LIT4315865		Parts List		Appelez-nous	-
	LIT1127553		Service & Wiring Sheet		Appelez-nous	-
	LIT1124662		Energy Label		Appelez-nous	-
	LIT1124661		Care & Use Guide		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
