02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Unit


06 - Door, Lit/optional


07 - Shelf

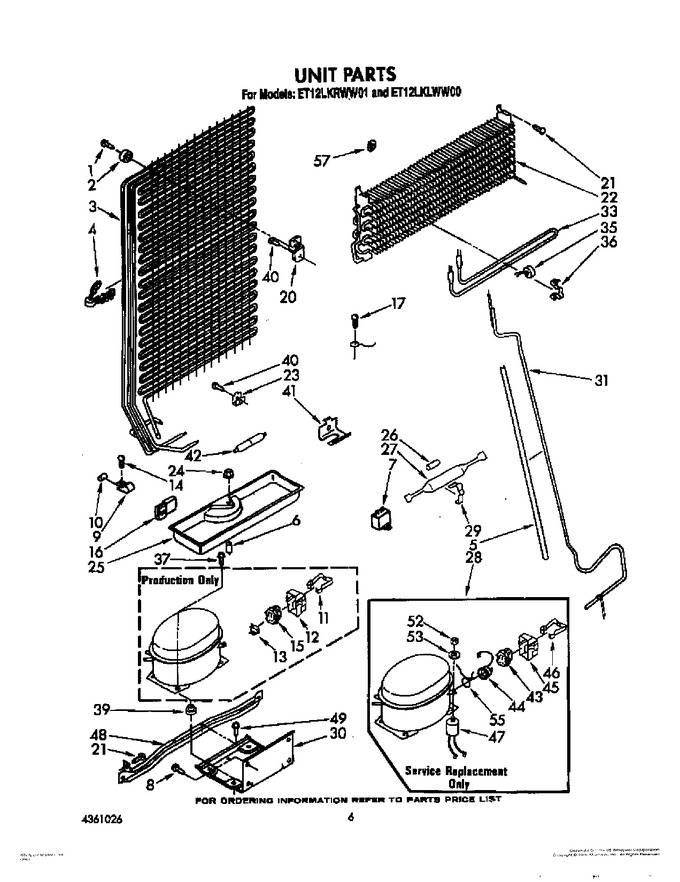

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	487888		Screw, 8 X 7/8		Appelez-nous	-
2	204349		Bumper (2)		Appelez-nous	-
3	1128111		Condenser & Precooler Assembly		Appelez-nous	-
4	938232		Clip, Tube (2)		Appelez-nous	-
5	1108537		Sleeve		Appelez-nous	-
6	938275		Spacer		Appelez-nous	-
7	WPW10662129		Running Capacitor   (Replaces: 1118581)			Immediately	$ 58.86
8	489340		Screw   (Replaces: 488683)		Appelez-nous	-
9	510716		Tube Clamp		Appelez-nous	-
10	1108064		Dampener		Appelez-nous	-
11	938384		Spring, Relay Case		Appelez-nous	-
12	1108115		Case, Relay		Appelez-nous	-
13	1105172		Overload		Appelez-nous	-
14	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 22.22
15	WP2262181		Relay   (Replaces: 1108143)				$ 128.78
16	934326		Housing Plug		Appelez-nous	-
17	303776		Screw, Ground   (Replaces: 488879)		Appelez-nous	-
20	510721		Condenser Bracket (2)		Appelez-nous	-
21	WP489128		Screw, 8 X 1/2   (Replaces: 488500)				$ 11.40
22	1108531		Evaporator		Appelez-nous	-
23	935788		Clip, Condenser Mounting (2)		Appelez-nous	-
24	285002		Nut   (Replaces: 489153)				$ 12.85
25	935781		Tray, Evaporator		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	W10843121		Drier   (Replaces: 850037)			Immediately	$ 57.13
28	482981		Compressor (includes Items 43, 44, 45, 46, 47, 52, 53, & 55) (also Order 482801 Tray Mounting Kit &		Appelez-nous	-
29	1127590		Clamp, Dryer		Appelez-nous	-
30	942860		Unit Mounting Plate		Appelez-nous	-
31	1116647		Exchanger, Heat		Appelez-nous	-
33	1108538		Heater, Defrost		Appelez-nous	-
35	1128308		Bi-metal, Defrost		Appelez-nous	-
36	1110548		Clamp		Appelez-nous	-
37	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 7.79
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
40	WP489478		Screw, 8 X 1/2   (Replaces: 489242)				$ 8.18
41	939050		Braket, Wire		Appelez-nous	-
42	1116650		Muffler		Appelez-nous	-
43	WP2262181		Relay   (Replaces: 1108143)				$ 128.78
44	483037		Overload		Appelez-nous	-
45	1105015		Cover, Terminal		Appelez-nous	-
46	938384		Strap		Appelez-nous	-
47	482996		Capacitor		Appelez-nous	-
48	945449		Unit Mounting Rail		Appelez-nous	-
49	WP965173		Screw   (Replaces: 487248)			Immediately	$ 11.87
52	489142		Nut		Appelez-nous	-
53	489143		Washer		Appelez-nous	-
55	1114190		Overload Spring		Appelez-nous	-
57	876764		Valve, Access(3/16``)			Immediately	$ 95.92
57	978028		Valve, Access (1/2)		Appelez-nous	-
57	978029		Valve Access (5/8``)				$ 93.85
57	978030		Valve, Access (3/4``)				$ 137.25
57	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
57	1108520		Retainer, Evaporator (2)		Appelez-nous	-
57	978026		Valve, Access (5/16``)			Immediately	$ 134.49
57	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
