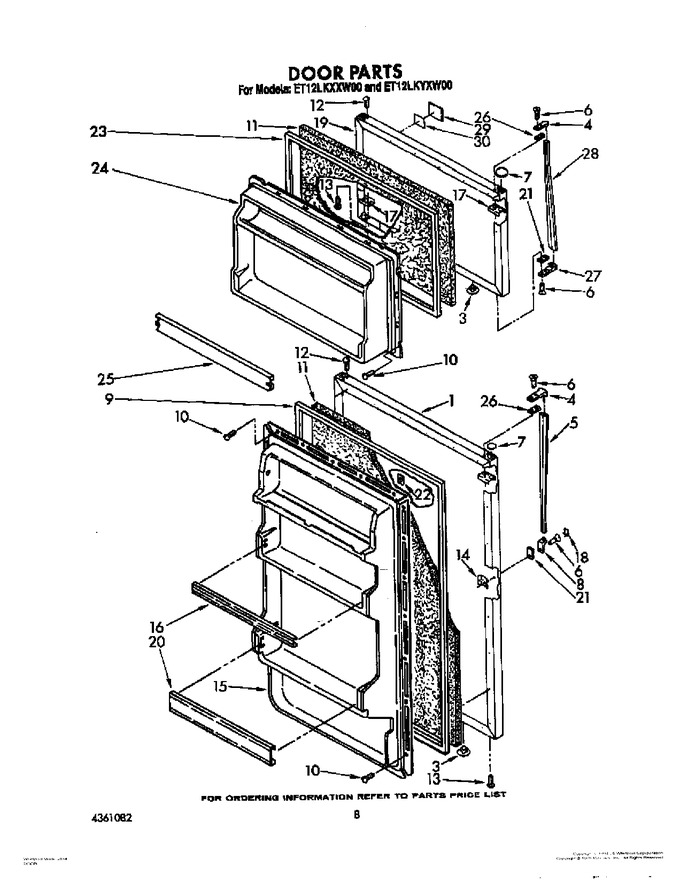

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	946469		Refrigerator Door Panel (also Order Item 11) (almond)		Appelez-nous	-
1	946391		Refrigerator Door Panel (also Order Item 11) (white)		Appelez-nous	-
2	509929		Cap, Hinge Sleeve (4)		Appelez-nous	-
3	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	534927		Hole Plug (2) (white)		Appelez-nous	-
4	819342		End Cap, Handle   (Replaces: 1108952)			Immediately	$ 47.96
5	1109166		Handle, Center		Appelez-nous	-
6	WP488920		Screw   (Replaces: 489006)				$ 7.98
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	819342		End Cap, Handle   (Replaces: 1110056)			Immediately	$ 47.96
9	1128061		Door Gasket, Magnetic		Appelez-nous	-
10	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
10	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	WP8281206		Screw   (Replaces: 489028)				$ 8.37
13	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
14	WP939101		Screw Anchor (4)   (Replaces: 939101)				$ 7.88
15	1108502		Interior Door Panel (refrigerator)		Appelez-nous	-
16	1116116		Trim, Door Shelf		Appelez-nous	-
17	943185		Tap Plate		Appelez-nous	-
18	WP1101634		Cover, Screw   (Replaces: 1110059)				$ 9.68
19	946393		Freezer Door Panel (also Order Item 11) (white)		Appelez-nous	-
19	946473		Freezer Door Panel (also Order Item 11) (almond)		Appelez-nous	-
20	1124656		Trim, Door Shelf		Appelez-nous	-
21	943188		Spacer, Handle				$ 7.80
22	1122654		Hole Plug (almond)		Appelez-nous	-
22	WP2189000		Hole Plug (white)   (Replaces: 1122653)			Immediately	$ 7.77
23	1128064		Door Gasket, Magnetic		Appelez-nous	-
24	1104910		Panel, Interior Door (freezer)		Appelez-nous	-
25	1116120		Trim, Door Shelf		Appelez-nous	-
26	943187		Shim				$ 25.14
27	1108955		End Cap, Handle		Appelez-nous	-
28	1109171		Handle, Center		Appelez-nous	-
29	945114		Nameplate		Appelez-nous	-
30	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
30	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
30	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
30	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
30	833938		Kit, Terminal Connector				$ 8.47
30	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
30	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
30	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
30	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
30	991259		Tape		Appelez-nous	-
30	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
30	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
30	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
30	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
30	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
30	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
30	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
30	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
30	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
30	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
30	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	LIT4361082		Parts List		Appelez-nous	-
	LIT1128207		Service & Wiring Sheet		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	LIT2148857		Energy Label		Appelez-nous	-
	LIT1124661		Care & Use Guide		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
