Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	944940		Freezer Door Panel (also Order Item 30) (coffee)		Appelez-nous	-
1	944937		Freezer Door Panel (also Order Item 30) (almond Freezer Door Panel (l.h.))		Appelez-nous	-
1	944938		Freezer Door Panel (also Order Item 30) (white)		Appelez-nous	-
1	944943		Freezer Door Panel (also Order Item 30) (almond)		Appelez-nous	-
1	944942		Freezer Door Panel (also Order Item 30) (new Avocado)		Appelez-nous	-
1	944932		Freezer Door Panel (also Order Item 30) (white)		Appelez-nous	-
1	944934		Freezer Door Panel (also Order Item 30) (coffee)		Appelez-nous	-
1	944936		Freezer Door Panel (also Order Item 30) (new Avocado)		Appelez-nous	-
1	944935		Freezer Door Panel (also Order Item 30) (harvest Gold)		Appelez-nous	-
1	944941		Freezer Door Panel (also Order Item 30) (harvest Gold)		Appelez-nous	-
2	944948		Freezer Door Gasket		Appelez-nous	-
4	944949		Interior Door Panel (freezer)		Appelez-nous	-
5	944950		Trim, Door Shelf		Appelez-nous	-
6	944925		Refrigerator Door Gasket		Appelez-nous	-
7	944927		Interior Door Panel (refrigerator)		Appelez-nous	-
8	946998		Compartment Door, Butter		Appelez-nous	-
9	520747		Tray, Butter		Appelez-nous	-
10	944928		Trim, Door Shelf (2)		Appelez-nous	-
11	983604		Screw Anchor		Appelez-nous	-
12	488930		Screw (repair)		Appelez-nous	-
12	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
14	509929		Cap, Hinge Sleeve (4)		Appelez-nous	-
15	943185		Tap Plate (2)		Appelez-nous	-
16	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
16	WP489069		Screw, 8 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
18	946944		Cover, Screw		Appelez-nous	-
19	488987		Screw, 8 X 1-5/8		Appelez-nous	-
20	989197		Hole Plug (2) (almond)		Appelez-nous	-
20	534927		Hole Plug (2) (white)		Appelez-nous	-
20	989878		Hole Plug (2) (coffee)		Appelez-nous	-
20	989880		(new Avocado)		Appelez-nous	-
21	944036		Bracket, Door Stop		Appelez-nous	-
22	944914		Refrigerator Door Panel (new Avocado)		Appelez-nous	-
22	944910		Refrigerator Door Panel (white)		Appelez-nous	-
22	944912		Refrigerator Door Panel (coffee)		Appelez-nous	-
22	944913		Refrigerator Door Panel (harvest Gold)		Appelez-nous	-
22	944915		Refrigerator Door Panel (almond Refrigerator Door Panel (l.h.))		Appelez-nous	-
22	944916		Refrigerator Door Panel (white)		Appelez-nous	-
22	944918		Refrigerator Door Panel (coffee)		Appelez-nous	-
22	944919		Refrigerator Door Panel (harvest Gold)		Appelez-nous	-
22	944920		Refrigerator Door Panel (new Avocado)		Appelez-nous	-
22	944921		Refrigerator Door Panel (almond)		Appelez-nous	-
23	944035		Bracket, Door Stop		Appelez-nous	-
26	946828		Handle, End		Appelez-nous	-
27	1100507		Handle, Center		Appelez-nous	-
28	945119		Nameplate		Appelez-nous	-
29	991259		Tape		Appelez-nous	-
30	876029		Kit, Foam Slab (required When Replacing Exterior Door)		Appelez-nous	-
38	946490		Energy Label		Appelez-nous	-
38	789150		Parts List		Appelez-nous	-
38	LIT946486		Label, Use & Care Guide		Appelez-nous	-
38	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
38	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
38	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
38	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
38	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
38	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
38	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
38	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
38	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
38	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
38	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
38	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
38	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
38	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
38	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
38	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
38	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
38	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
38	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
38	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
38	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
38	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
38	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
38	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
38	833938		Kit, Terminal Connector				$ 8.47
38	938399		Service & Wiring Sheet		Appelez-nous	-
38	946488		Consumer Checklist		Appelez-nous	-
38	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
38	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
38	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-

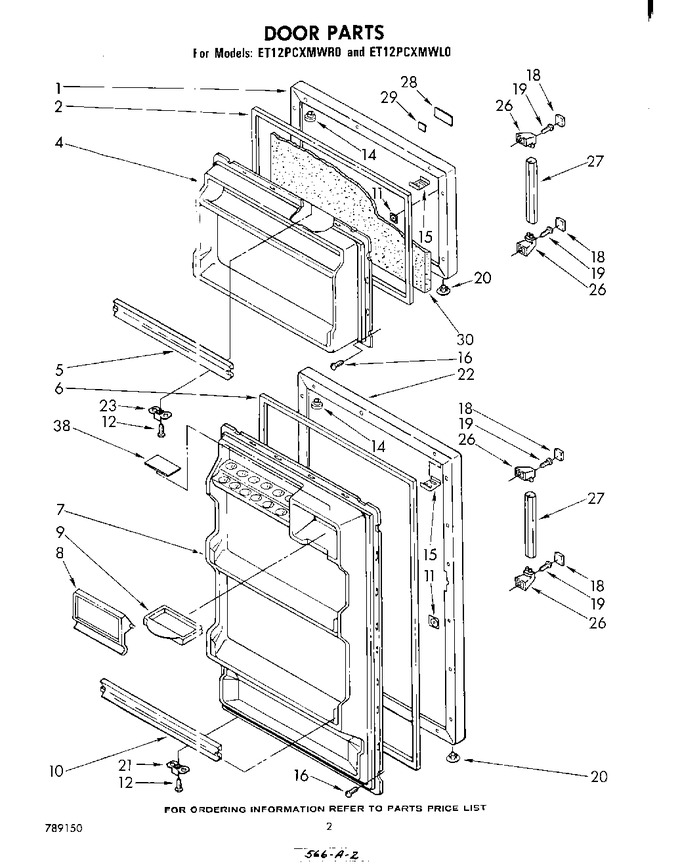

    View Diagram in Separate Window       Print Part List
