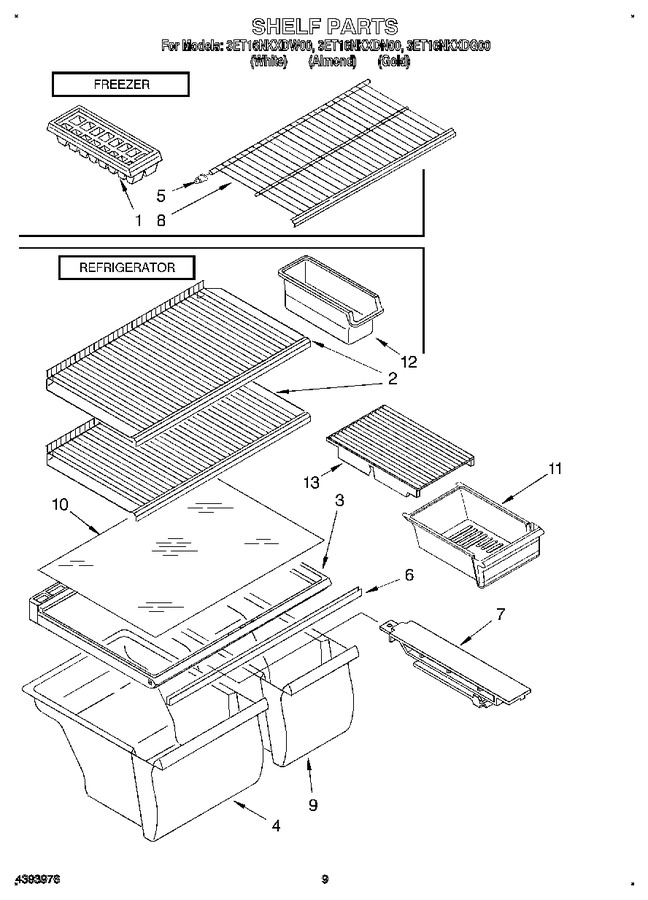

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 45.56
2	2166147		Shelf (2)		Appelez-nous	-
3	WP2314548		Cover, Crisper   (Replaces: 2163833)				$ 247.46
4	W10854037		Pan, Crisper   (Replaces: 2170954)			Immediately	$ 170.66
5	WPW10130299		Cup, Shelf   (Replaces: 2163762)			Immediately	$ 14.00
6	WP2172748		Support, Crisper Cover   (Replaces: 2172541)				$ 97.22
7	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 34.74
8	WP2176275		Shelf   (Replaces: 2176275)				$ 123.40
9	W10856580		Pan, Crisper   (Replaces: 2170955)			Immediately	$ 168.60
10	WP2169921		Glass, Crisper Cover   (Replaces: 2163842)				$ 246.60
11	WP2218127K		Pan, Meat   (Replaces: 2170956)				$ 139.81
12	WP982704		Container   (Replaces: 1116917)				$ 31.00
13	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
13	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
13	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
13	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
13	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
13	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
13	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
13	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
13	2172516		Door Reversal Instructions		Appelez-nous	-
13	350942		Primer White (13 Oz. Spray Can)				$ 89.66
13	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
13	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
13	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
13	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
13	2163848		Cover, Meat Pan				$ 71.41
13	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
13	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
13	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
13	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
13	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
13	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
13	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
13	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
	1117510		Torx Key				$ 5.84
	LIT2166777		Service And Wiring Sheet		Appelez-nous	-
	LIT2170417		Use & Care Guide		Appelez-nous	-
