Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1104455 Shelf, Pullout (3) Appelez-nous -
2 935749 Trim, Shelf (front) Appelez-nous -
3 1104558 Cover, Crisper Appelez-nous -
5 1105927 Cover, Meat Pan Appelez-nous -
6 1104560 Shelf, Freezer Appelez-nous -
7 942840 Trim, Shelf (front) Appelez-nous -
8 1108702 Pan, Crisper (2) Appelez-nous -
9 1108704 Pan, Meat Appelez-nous -
10 WP982704 Container, Utility   (Replaces: 1106048) Special Order $ 32.55

11 WP841180A Tray, Ice (2)   (Replaces: 841180) In-Stock Immediately $ 47.84

13 1103731 Support, Crisper Cover Appelez-nous -
14 836410 Post, Cripser Cover Special Order $ 5.84

16 937154 Overlay, Pan (2) Appelez-nous -
17 937155 Overlay, Pan Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

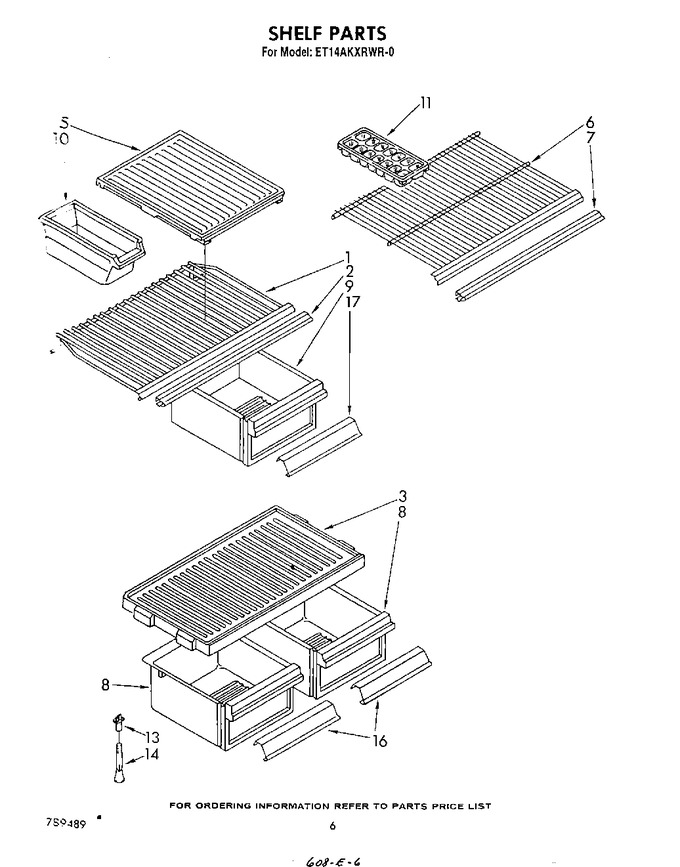

Diagram for ET14AKXRWR0
