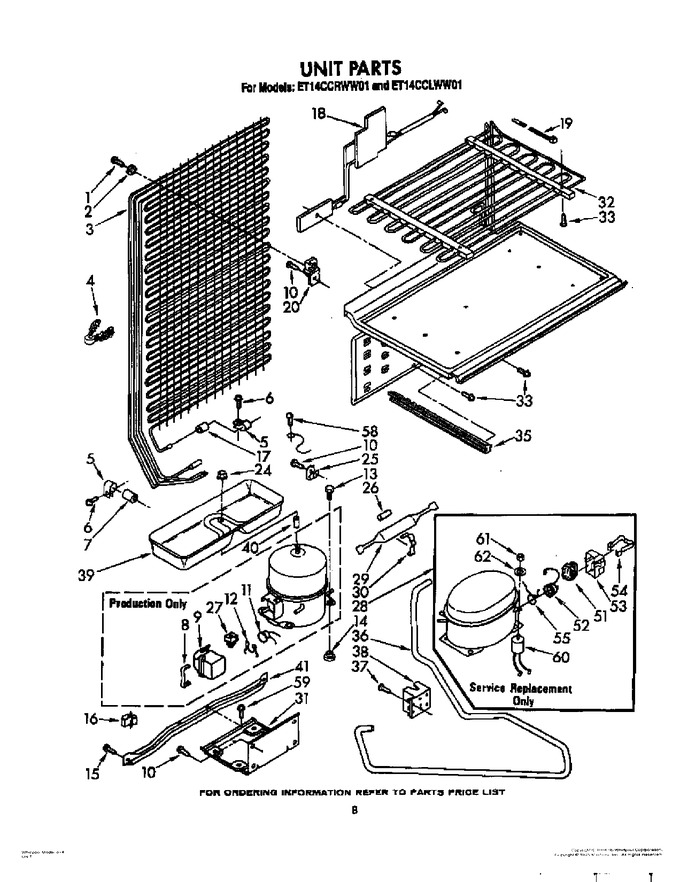

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 487888 | Screw, 8 X 3/4 (2) |
|
- | |||||
| 2 | 204349 | Bumper (2) |
|
- | |||||
| 3 | 1128109 | Condenser & Precooler Assembly |
|
- | |||||
| 4 | 942739 | Tube Clip (2) |
|
- | |||||
| 5 | 510716 | Tube Clamp |
|
- | |||||
| 6 | 489197 | Screw, 8-32 X 1/2 |
|
- | |||||
| 7 | 1108064 | Dampener |
|
- | |||||
| 8 | 943322 | Strap |
|
- | |||||
| 9 | 943321 | Terminal Cover |
|
- | |||||
| 10 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 | |||||
| 11 | 1100921 | Overload |
|
- | |||||
| 12 | 943320 | Overload Spring |
|
- | |||||
| 13 | 876811 | Screw, 1/4-28 X 1 (Replaces: 489116) |
|
$ 7.79 | |||||
| 14 | 876811 | Grommet (4) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 15 | 489340 | Screw, 5/16-18 X 5/8 (2) (Replaces: 488683) |
|
- | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | 945593 | Dampener |
|
- | |||||
| 18 | 1101093 | Defrost Heater |
|
- | |||||
| 19 | 851095 | Strap (2) |
|
- | |||||
| 20 | 510721 | Condenser Bracket (2) |
|
- | |||||
| 24 | 285002 | Hex Nut (Replaces: 489153) |
|
$ 12.85 | |||||
| 25 | 4386951 | Clip, Condenser Mounting (2) (Replaces: 942852) |
|
- | |||||
| 26 | 510446 | Restrictor Sleeve |
|
- | |||||
| 27 | 943317 | Relay |
|
- | |||||
| 28 | 482980 | Compressor (also Order 482801 Installation Kit & 876765 Tube Kit) |
|
- | |||||
| 29 | W10843121 | Dryer (Replaces: 945424) |
|
Immediately | $ 57.13 | ||||
| 30 | 1127590 | Clamp, Dryer |
|
- | |||||
| 31 | 942860 | Unit, Plate |
|
- | |||||
| 32 | 1128097 | Evaporator Assembly |
|
- | |||||
| 33 | 486214 | Screw 8-15 X 1/2 |
|
- | |||||
| 35 | 940115 | Gasket, Evaporator Lower R.s. |
|
- | |||||
| 35 | 940116 | Gasket, Evaporator Lower L.s. |
|
- | |||||
| 36 | 1100917 | Heat Exchanger |
|
- | |||||
| 37 | WP489478 | Screw, 8-32 X 3/8 (Replaces: 489242) |
|
$ 8.18 | |||||
| 38 | 937068 | Box, Junction |
|
- | |||||
| 39 | 935781 | Tray, Evaporator |
|
- | |||||
| 40 | 938275 | Spacer |
|
- | |||||
| 41 | 945448 | Unit, Rail |
|
- | |||||
| 51 | WP2262181 | Relay (Replaces: 1108143) |
|
$ 128.78 | |||||
| 52 | 483036 | Overload |
|
- | |||||
| 53 | 1105015 | Cover, Terminal |
|
- | |||||
| 54 | 938384 | Strap |
|
- | |||||
| 55 | 1114190 | Spring, Overload |
|
- | |||||
| 58 | 303776 | Screw, 8-32 X 5/16 (Replaces: 488879) |
|
- | |||||
| 59 | WP965173 | Screw (Replaces: 487248) |
|
Immediately | $ 11.87 | ||||
| 60 | 482996 | Capacitor |
|
- | |||||
| 61 | 489142 | Nut |
|
- | |||||
| 62 | 482278 | Start Kit |
|
- | |||||
| 62 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 62 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 62 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 62 | 489143 | Washer |
|
- | |||||
| 62 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 62 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 62 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 62 | 978029 | Valve Access (5/8``) |
|
$ 93.85 |
