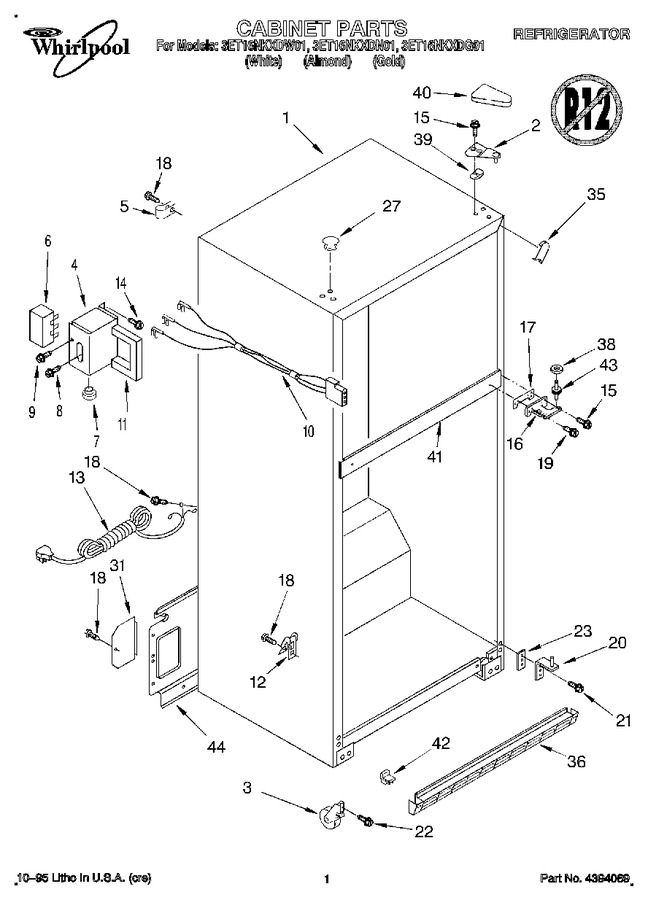

01 - Cabinet
02 - Door
03 - Liner
04 - Unit
05 - Shelf, Lit/optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | WP2189412 | Hinge, Top (Replaces: 2157591) |
|
$ 120.23 | |||||
| 3 | WP2166108 | Roller-front (2) (Replaces: 2166108) |
|
Immediately | $ 34.76 | ||||
| 4 | 2158579 | Enclosure, Term. |
|
- | |||||
| 5 | WP488366 | Clamp, Tube (Replaces: 489385) |
|
$ 11.92 | |||||
| 6 | 1129346 | Terminal Block |
|
- | |||||
| 7 | 1129449 | Bushing |
|
- | |||||
| 8 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 11.36 | ||||
| 9 | 00489346 | Screw (Replaces: 489346) |
|
$ 380.15 | |||||
| 10 | 2166651 | Wiring Assy. |
|
- | |||||
| 11 | 2167227 | Gasket |
|
- | |||||
| 12 | 489348 | Clamp |
|
- | |||||
| 13 | 1129332 | Service Cord |
|
- | |||||
| 14 | WP250830 | Screw (Replaces: 489048) |
|
$ 8.78 | |||||
| 15 | WP999367 | Screw (Replaces: 489423) |
|
$ 8.56 | |||||
| 16 | WP2254618 | Hinge, Center (Replaces: 2183064) |
|
Immediately | $ 92.02 | ||||
| 17 | 2163757 | Shim, Hinge Center |
|
- | |||||
| 18 | WP489463 | Screw (Replaces: 489463) |
|
$ 8.25 | |||||
| 19 | 489426 | Screw |
|
- | |||||
| 20 | 2179829 | Hinge, Butt |
|
- | |||||
| 21 | 489459 | Screw |
|
- | |||||
| 22 | 2174650 | Screw |
|
- | |||||
| 23 | 2172745 | Shim, Bottom Hinge |
|
- | |||||
| 27 | 2151654 | Hole Plug (6) (gold) |
|
- | |||||
| 27 | WP2151652 | Hole Plug (6) (white) (Replaces: 2151652) |
|
$ 22.87 | |||||
| 27 | 2151653 | Hole Plug (6) (almond) |
|
- | |||||
| 31 | 2166251 | Cover, Water Valve |
|
$ 6.43 | |||||
| 35 | 2166187 | Corner Filler (2) (almond) |
|
- | |||||
| 35 | 2166188 | Corner Filler (2) (gold) |
|
- | |||||
| 35 | WPW10283959 | Corner Filler (2) (white) (Replaces: 2163733) |
|
$ 8.21 | |||||
| 36 | 2182430 | Grille (almond) |
|
- | |||||
| 36 | 2182431 | Grille (black) |
|
- | |||||
| 36 | 2182429 | Grille (white) |
|
- | |||||
| 38 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 39 | 1123517 | Shim |
|
- | |||||
| 40 | WP2213360 | Cover-hinge (white) (Replaces: 2160403) |
|
$ 20.19 | |||||
| 40 | WP2213360 | Cover-hinge (gold) (Replaces: 2160405) |
|
$ 20.19 | |||||
| 40 | 2160404 | Cover, Hinge (almond) |
|
- | |||||
| 41 | N/A | Rail Center (not Serviced) |
|
- | |||||
| 42 | 2166156 | Corner Filler, Grille (white) |
|
- | |||||
| 42 | 2166204 | Corner Filler, Grille (almond) |
|
- | |||||
| 42 | 2166205 | Corner Filler, Grille (black) |
|
- | |||||
| 43 | WP2254618 | Pin, Hinge (Replaces: 2183063) |
|
Immediately | $ 92.02 | ||||
| 44 | 2183158 | Cover, Unit |
|
- |
