SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Lit/optional

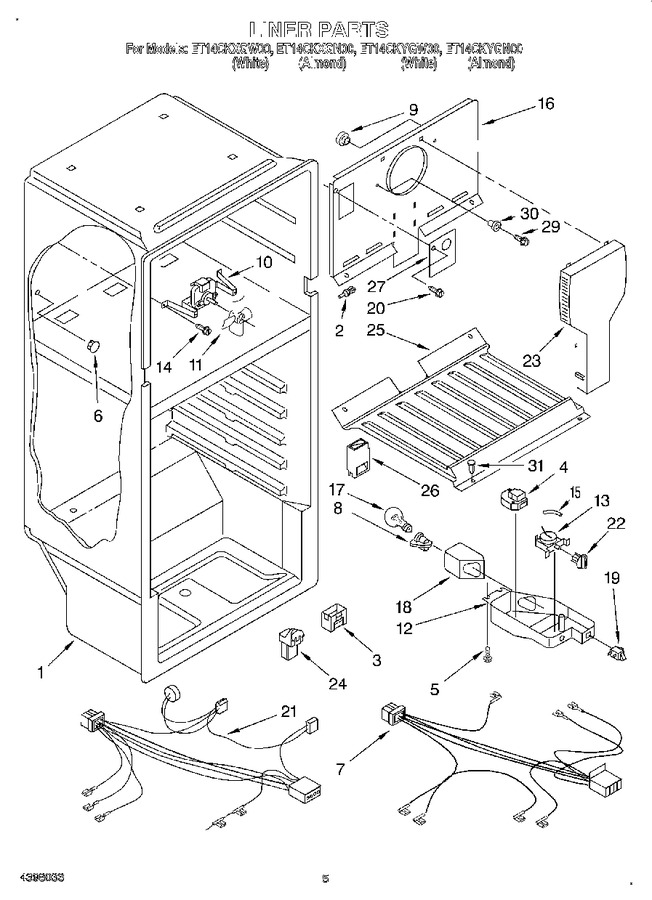

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	939962		Rivet-plastic				$ 11.83
3	2183061		Cover, Air Diffuser				$ 36.62
4	WP2183400		Timer, Defrost   (Replaces: 2162044)			Immediately	$ 86.97
5	WP489174		Screw   (Replaces: 489174)				$ 6.95
6	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
7	2176927		Wire Assembly (control Box)		Appelez-nous	-
8	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 110.16
9	531933		Grommet				$ 5.70
10	2166013		Fan Motor & Bracket Assy.		Appelez-nous	-
11	2169141		Fan Blade		Appelez-nous	-
12	2215213		Control Box   (Replaces: 2175830)				$ 110.52
13	WPW10567140		Thermostat   (Replaces: 2183403)			Immediately	$ 92.99
14	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
15	WP2196003		Thermostat Tube Barrier   (Replaces: 1118680)				$ 7.95
16	2197417		Cover-evaporator		Appelez-nous	-
17	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
18	W11034434		Light Shield   (Replaces: 9791702)			Immediately	$ 103.73
19	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 37.23
20	WP489442		Screw   (Replaces: 489438)			Immediately	$ 10.94
21	WP2192096		Wiring-freezer   (Replaces: 2192096)				$ 258.64
22	WP2202885		Control Knob   (Replaces: 2175831)				$ 26.38
23	2174502		Air Tower		Appelez-nous	-
24	2197052		Hood & Foil Assembly		Appelez-nous	-
25	2174798		Freezer Floor				$ 70.51
26	2197030		Air Diffuser		Appelez-nous	-
27	WP2217784		Cover, Hole   (Replaces: 2190688)				$ 44.97
29	WP489474		Screw   (Replaces: 489474)			Immediately	$ 7.97
30	2166010		Sleeve		Appelez-nous	-
31	489115		Fastener-snap In				$ 5.51
