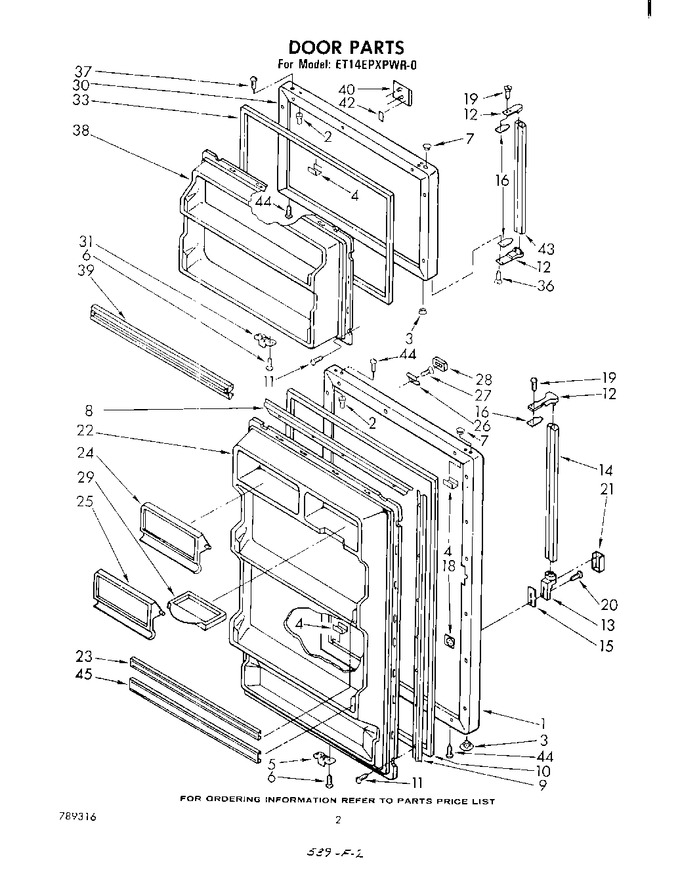

02 - Door Parts
03 - Cabinet
04 - Liner , Lit/optional
05 - Compartment Separator And Control
06 - Unit
07 - Shelf
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 944096 | Exterior, Door Panel (coffee) |
|
- | |||||
| 1 | 944099 | Exterior, Door Panel (almond) |
|
- | |||||
| 1 | 944097 | Exterior, Door Panel (golden Harvest) |
|
- | |||||
| 1 | 944095 | Exterior, Door Panel (white) |
|
- | |||||
| 1 | 1100225 | Exterior, Door Panel (toast) |
|
- | |||||
| 2 | 509929 | Cap, Hinge Sleeve |
|
- | |||||
| 3 | 534927 | Hole Plug |
|
- | |||||
| 4 | 943185 | Tap Plate |
|
- | |||||
| 5 | 944036 | Bracket, Door Stop |
|
- | |||||
| 6 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | 488930 | Screw (repair) |
|
- | |||||
| 7 | WP2212648 | Hole Plug (golden Harvest) (Replaces: 989893) |
|
Immediately | $ 8.19 | ||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 7 | 1100188 | Hole Plug (toast) |
|
- | |||||
| 7 | 989892 | Hole Plug (coffee) |
|
- | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 8 | 935759 | Retainer Gasket Top & Bottom |
|
- | |||||
| 9 | 935760 | Retainer Gasket Side |
|
- | |||||
| 10 | 2188445A | Door Gasket, Magnetic (Replaces: 935761) |
|
$ 197.35 | |||||
| 11 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 11 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 12 | 944157 | Handle End |
|
- | |||||
| 13 | 935105 | Handle End, |
|
$ 32.80 | |||||
| 14 | 1104936 | Handle, Center |
|
- | |||||
| 15 | 935076 | Shim, Handle End |
|
- | |||||
| 16 | 943188 | Spacer, Handle End |
|
$ 7.80 | |||||
| 18 | WP939101 | Screw Anchor (2) (Replaces: 939101) |
|
$ 7.88 | |||||
| 19 | WP488920 | Screw, 8 X 5/8 (Replaces: 488920) |
|
$ 7.98 | |||||
| 19 | 488923 | Screw (repair) |
|
- | |||||
| 20 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 8.05 | |||||
| 21 | 987873 | End Cap Cover |
|
- | |||||
| 22 | 1100127 | Interior Door Panel |
|
- | |||||
| 23 | 1105834 | Trim, Interior Door |
|
- | |||||
| 24 | 1105833 | Door, Utility |
|
- | |||||
| 25 | 1105832 | Door, Butter |
|
- | |||||
| 26 | 843213 | Clip, Medallion |
|
- | |||||
| 27 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 28 | 989901 | Medallion (coffee) |
|
- | |||||
| 28 | 1100194 | Medallion (toast) |
|
- | |||||
| 28 | 989904 | Medallion (almond) |
|
- | |||||
| 28 | 848382 | Medallion (white) |
|
- | |||||
| 28 | 989903 | Medallion (golden Harvest) |
|
- | |||||
| 29 | 520747 | Tray, Butter |
|
- | |||||
| 30 | 944105 | Exterior Door Panel (freezer) (almond) |
|
- | |||||
| 30 | 1100227 | Exterior Door Panel (freezer) (toast) |
|
- | |||||
| 30 | 944102 | Exterior Door Panel (freezer) (coffee) |
|
- | |||||
| 30 | 944103 | Exterior Door Panel (freezer) (golden Harvest) |
|
- | |||||
| 30 | 944101 | Exterior Door Panel (freezer) (white) |
|
- | |||||
| 31 | 944035 | Bracket, Door Stop |
|
- | |||||
| 33 | WP2188456A | Door Gasket, Magnetic (Replaces: 937001) |
|
$ 258.49 | |||||
| 36 | WP488920 | Screw, 6-32 X 5/8 (Replaces: 488926) |
|
$ 7.98 | |||||
| 37 | 489112 | Screw, 6-32 X 1/2 |
|
- | |||||
| 38 | 1100247 | Interior Door Panel |
|
- | |||||
| 39 | 1105837 | Trim, Door Shelf |
|
- | |||||
| 40 | 1104898 | Nameplate |
|
- | |||||
| 42 | 991259 | Tape Strip |
|
- | |||||
| 43 | 1104940 | Handle, Center |
|
- | |||||
| 44 | 488930 | Screw (repair) |
|
- | |||||
| 44 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 45 | 1105835 | Trim, Interior Door |
|
- |
