01 - Door
02 - Cabinet
03 - Liner, Lit/optional
04 - Unit
05 - Shelf
New Model Search:

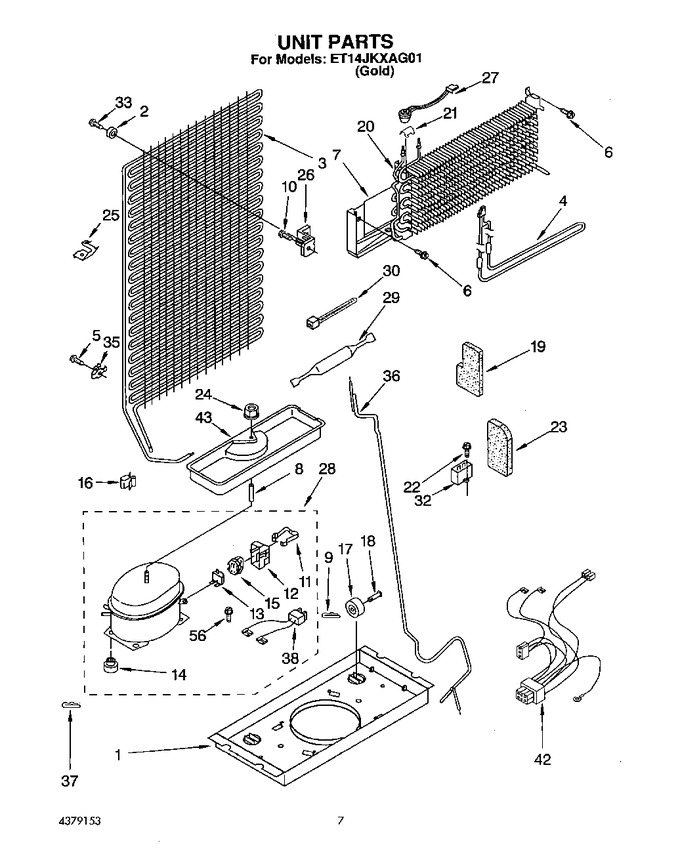

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9791635 | Support Plate, Compressor |
|
- | |||||
| 2 | 944772 | Bumper (2) |
|
- | |||||
| 3 | 9790413 | Condenser |
|
- | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2166031) |
|
Immediately | $ 93.70 | ||||
| 5 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 6 | WP965173 | Screw (Replaces: 487869) |
|
Immediately | $ 11.87 | ||||
| 7 | 2166058 | Heat Shield |
|
- | |||||
| 8 | 2154438 | Spacer |
|
- | |||||
| 9 | 20150912 | Clip-pin |
|
- | |||||
| 10 | WP488163 | Screw, (Replaces: 488725) |
|
$ 7.92 | |||||
| 11 | 938384 | Strap |
|
- | |||||
| 12 | 1108115 | Cover |
|
- | |||||
| 13 | 1108114 | Overload) (service (includes Relay) |
|
- | |||||
| 13 | 2154758 | Overload (production (includes Relay)) |
|
- | |||||
| 14 | 876811 | Grommet, (service Compressor) (4) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 14 | WP2163786 | Grommet (4) (production) (Replaces: 2163786) |
|
$ 8.36 | |||||
| 15 | N/A | Start Relay (see Overload) |
|
- | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | 4388239 | Roller (Replaces: 9791758) |
|
Immediately | $ 75.99 | ||||
| 18 | 20150911 | Pin-roller |
|
- | |||||
| 19 | 2166053 | Wedge-evaporator |
|
- | |||||
| 20 | WP2263919 | Evaporator Assy. (Replaces: 2166055) |
|
$ 324.61 | |||||
| 21 | 9791833 | Clip |
|
- | |||||
| 22 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 14.76 | ||||
| 23 | 2166054 | Wedge-evaporator |
|
- | |||||
| 24 | 285002 | Hex Nut (Replaces: 489153) |
|
$ 12.85 | |||||
| 25 | 4386951 | Clip, Condenser Mounting (2) (Replaces: 942852) |
|
- | |||||
| 26 | 944791 | Bracket, Condenser |
|
- | |||||
| 27 | WP4387490 | Defrost Bimetal (Replaces: 9791823) |
|
Immediately | $ 30.88 | ||||
| 28 | 482801 | Installation Kit |
|
$ 119.50 | |||||
| 28 | 876765 | Tube Kit |
|
Immediately | $ 90.65 | ||||
| 28 | 2154753 | Compressor (includes Items 11, 12, 13, 14, 15, 32, 38 & 56) |
|
- | |||||
| 29 | W10843121 | Drier (Replaces: 2154002) |
|
Immediately | $ 57.13 | ||||
| 30 | 851095 | Clamp |
|
- | |||||
| 32 | WPW10662129 | Run Capacitor (Replaces: 1118581) |
|
Immediately | $ 58.86 | ||||
| 33 | WP489174 | Screw (Replaces: 489169) |
|
$ 7.30 | |||||
| 35 | 1105406 | Clip, Tube |
|
- | |||||
| 36 | N/A | Heat Exchanger (not Serviced) |
|
- | |||||
| 37 | 24364001 | Clip, Compressor |
|
- | |||||
| 38 | WP2172890 | Wire Asm (Replaces: 1127675) |
|
$ 8.51 | |||||
| 42 | 9790416 | Wire Assy. Unit |
|
- | |||||
| 43 | 1101002 | Evaporator Tray |
|
- | |||||
| 56 | 482278 | Start Kit |
|
- | |||||
| 56 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 56 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 56 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 56 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 56 | W11693756 | Screw (Replaces: 487240) |
|
Immediately | $ 14.76 | ||||
| 56 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 56 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 56 | 978028 | Valve, Access (1/2) |
|
- |
