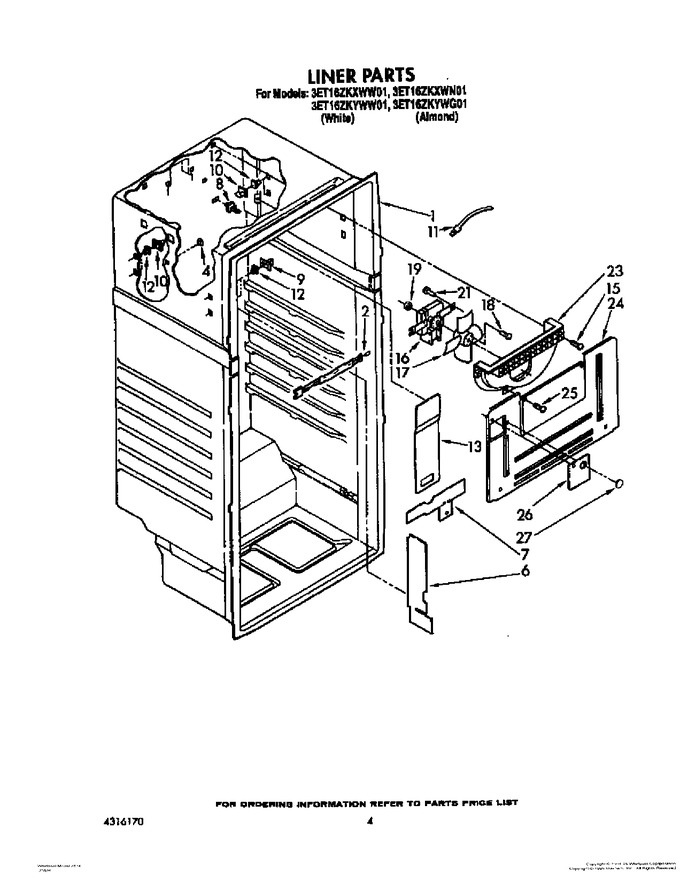

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1127626		Wiring, Fan Motor		Appelez-nous	-
4	WP941839		Hole Plug (2)   (Replaces: 941839)				$ 7.65
6	942751		Side, Electric Shield		Appelez-nous	-
7	1129067		Top, Electric Shield		Appelez-nous	-
8	942750		Stud, Evaporator (2)		Appelez-nous	-
9	946356		Stud (2)		Appelez-nous	-
10	819091		Saddle Stud L.s.   (Replaces: 946358)				$ 39.68
10	819091		Saddle Stud, R.s.   (Replaces: 946357)				$ 39.68
11	1123230		Clip, Strap		Appelez-nous	-
12	946355		Support Stud (8)		Appelez-nous	-
13	1118775		Cover, Air Duct		Appelez-nous	-
15	WP489478		Screw   (Replaces: 489242)				$ 7.75
16	482731		Motor, Fan   (Replaces: 1105608)			Immediately	$ 79.05
17	WP1100938		Fan, Blade   (Replaces: 1100938)				$ 87.87
18	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 244.80
19	531933		Grommet (2)				$ 5.70
21	489168		Screw (2)		Appelez-nous	-
23	1122814		Scroll, Fan		Appelez-nous	-
24	2151569		Evaporator Cover		Appelez-nous	-
25	WP488729		Screw (5)   (Replaces: 489196)			Immediately	$ 7.79
26	WP2217784		Hole Cover, Evaporator   (Replaces: 1129602)				$ 44.97
27	1103725		Hole Plug		Appelez-nous	-
