SELECT A DIAGRAM

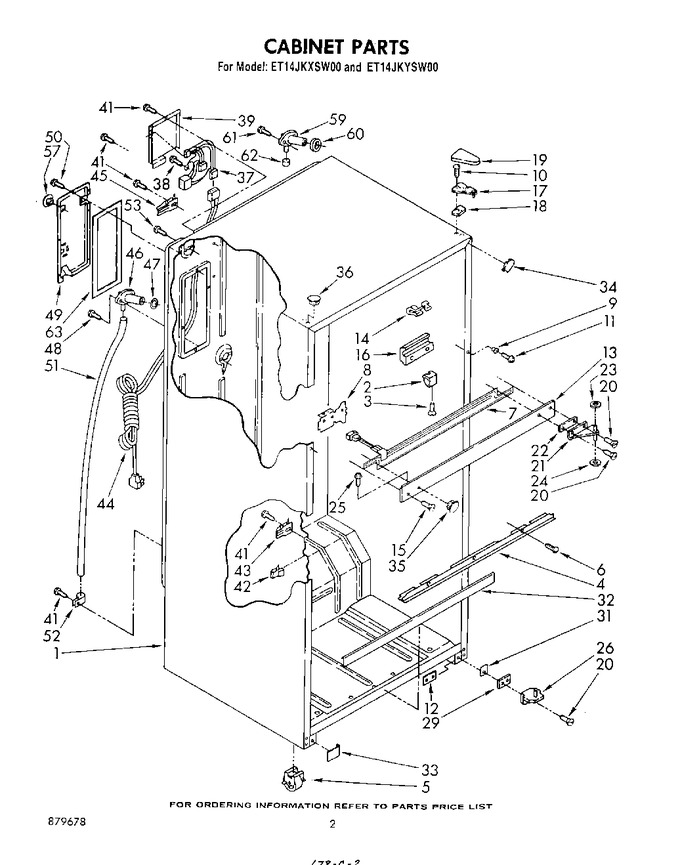

02 - Cabinet
03 - Liner
04 - Compartment Separator
05 - Shelf
06 - Freezer Door
07 - Unit
08 - Refrigerator Door , Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 940024 | Spacer |
|
- | |||||
| 3 | 487888 | Screw (2) |
|
- | |||||
| 4 | 1111531 | Filler, Rail Center |
|
- | |||||
| 5 | 937216 | Roller (4) |
|
- | |||||
| 6 | 489167 | Screw (3) |
|
- | |||||
| 7 | 1108140 | Heater, Mullion |
|
- | |||||
| 8 | 1110231 | Center Rail, Bracket (2) |
|
- | |||||
| 9 | 942737 | Ferrule, Center Rail |
|
- | |||||
| 10 | WP999367 | Screw, (2) 10-32 X 1/2 (Replaces: 489077) |
|
$ 7.86 | |||||
| 11 | 489183 | Screw |
|
- | |||||
| 12 | 944813 | Tap Plate (2) |
|
- | |||||
| 13 | 1111511 | Center Rail (golden Harvest) |
|
- | |||||
| 13 | 1111512 | Center Rail (almond) |
|
- | |||||
| 13 | 1111510 | Center Rail (white) |
|
- | |||||
| 13 | 1111513 | Center Rail (toast) |
|
- | |||||
| 13 | 1111514 | Center Rail (platinum) |
|
- | |||||
| 14 | 534365 | Breaker, Trim Clip |
|
$ 14.83 | |||||
| 15 | 489184 | Screw |
|
- | |||||
| 16 | 939034 | Center, Rail Shim |
|
- | |||||
| 17 | 1100513 | Shim, Hinge Top |
|
- | |||||
| 18 | 1100509 | Shim, Top Hinge |
|
- | |||||
| 19 | 1100173 | Hinge Cover (platinum) |
|
- | |||||
| 19 | 842010 | Hinge Cover (white) |
|
- | |||||
| 19 | 989896 | Hinge Cover (golden Harvest) |
|
- | |||||
| 19 | 989194 | Hinge Cover (almond) |
|
- | |||||
| 19 | 1100172 | Hinge Cover (toast) |
|
- | |||||
| 20 | 489179 | Screw |
|
- | |||||
| 20 | 488949 | Screw (repair) |
|
- | |||||
| 21 | 944788 | Hinge, Center |
|
$ 32.65 | |||||
| 22 | 836155 | Shim, Hinge Center |
|
- | |||||
| 23 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 24 | WP488296 | Washer, 11/64 (Replaces: 488296) |
|
$ 7.19 | |||||
| 25 | WP488729 | Screw, 8 X 1/2 (Replaces: 487900) |
|
Immediately | $ 7.79 | ||||
| 26 | 944778 | Hinge Butt (bottom L.h.) |
|
- | |||||
| 26 | 944776 | Hinge Butt (bottom R.h.) |
|
- | |||||
| 29 | 942812 | Shim, Bottom |
|
- | |||||
| 31 | 1100686 | Cover, Glider Rail (toast) |
|
- | |||||
| 31 | 942818 | Cover, Glider Rail (white) |
|
- | |||||
| 31 | 942820 | Cover, Glider Rail (golden Harvest) |
|
- | |||||
| 31 | 942822 | Cover, Glider Rail (almond) |
|
- | |||||
| 31 | 1100685 | Cover, Glider Rail (platinum) |
|
- | |||||
| 32 | 1109359 | Cover, Deck Rail (white) |
|
- | |||||
| 32 | 1109363 | Cover, Deck Rail (almond) |
|
- | |||||
| 32 | 1109372 | Cover, Deck Rail (platinum) |
|
- | |||||
| 32 | 1109371 | Cover, Deck Rail (toast) |
|
- | |||||
| 32 | 1109361 | Cover, Deck Rail (golden Harvest) |
|
- | |||||
| 33 | 943552 | Cover, Glider Rail (white) |
|
- | |||||
| 33 | 944833 | Cover, Glider Rail (golden Harvest) |
|
- | |||||
| 33 | 1100681 | Cover, Glider Rail (platinum) |
|
- | |||||
| 33 | 1100682 | Cover, Glider Rail (toast) |
|
- | |||||
| 33 | 944831 | Cover, Glider Rail (almond) |
|
- | |||||
| 34 | 1110684 | Filler, Wrap Corner (2) (white) |
|
- | |||||
| 34 | 1110685 | Filler, Wrap Corner (2) (almond) |
|
- | |||||
| 34 | 1110688 | Filler, Wrap Corner (2) (platinum) |
|
- | |||||
| 34 | 1110687 | Filler, Wrap Corner (2) (toast) |
|
- | |||||
| 34 | 1110686 | Filler, Wrap Corner (2) (golden Harvest) |
|
- | |||||
| 35 | 940087 | Hole Plug (almond) |
|
- | |||||
| 35 | 940086 | Hole Plug (white) |
|
- | |||||
| 35 | 940089 | Hole Plug (golden Harvest) |
|
- | |||||
| 35 | 1100687 | Hole Plug (platinum) |
|
- | |||||
| 35 | 1100688 | Hole Plug (toast) |
|
- | |||||
| 36 | 989876 | Hole Plug (2) (golden Harvest) |
|
- | |||||
| 36 | 842031 | Hole Plug (2) (white) |
|
- | |||||
| 36 | 1100177 | Hole Plug (2) (platinum) |
|
- | |||||
| 36 | 1100176 | Hole Plug (2) (toast) |
|
- | |||||
| 36 | 989195 | Hole Plug (2) (almond) |
|
- | |||||
| 37 | 942844 | Cabinet, Wiring Assembly |
|
- | |||||
| 38 | WP250830 | Screw, 8-32 X 1/2 (Replaces: 489048) |
|
$ 7.95 | |||||
| 39 | 942845 | Cover, Wiring |
|
- | |||||
| 41 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 42 | W10812038 | Clip, Wire (4) (Replaces: 939054) |
|
- | |||||
| 43 | 549193 | Clamp-service Cord |
|
$ 13.39 | |||||
| 44 | 937360 | Cord, Service |
|
- | |||||
| 45 | 937357 | Clamp |
|
- | |||||
| 46 | 942813 | Fitting, Drain |
|
- | |||||
| 47 | 1106507 | Seal, Gasket |
|
- | |||||
| 48 | WP98165 | Screw, 8 X 5/8 (Replaces: 488401) |
|
$ 8.00 | |||||
| 49 | 942854 | Plug Assembly |
|
- | |||||
| 50 | WP489069 | Screw (Replaces: 693994) |
|
Immediately | $ 7.86 | ||||
| 51 | 8316810 | Tube, Drain (Replaces: 509640) |
|
$ 119.73 | |||||
| 52 | 519405 | Clamp (2) |
|
- | |||||
| 53 | WP489069 | Screw, 8 X 1/2 (Replaces: 488645) |
|
Immediately | $ 7.86 | ||||
| 57 | 655411 | Hole Plug |
|
- | |||||
| 59 | WP2196157 | Fitting, Water Tube (Replaces: 836489) |
|
Immediately | $ 11.99 | ||||
| 60 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 9.93 | ||||
| 61 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 7.67 | |||||
| 62 | WP487996 | Cap, Plastic (Replaces: 487996) |
|
$ 8.26 | |||||
| 63 | 1106510 | Seal, Gasket |
|
- |
