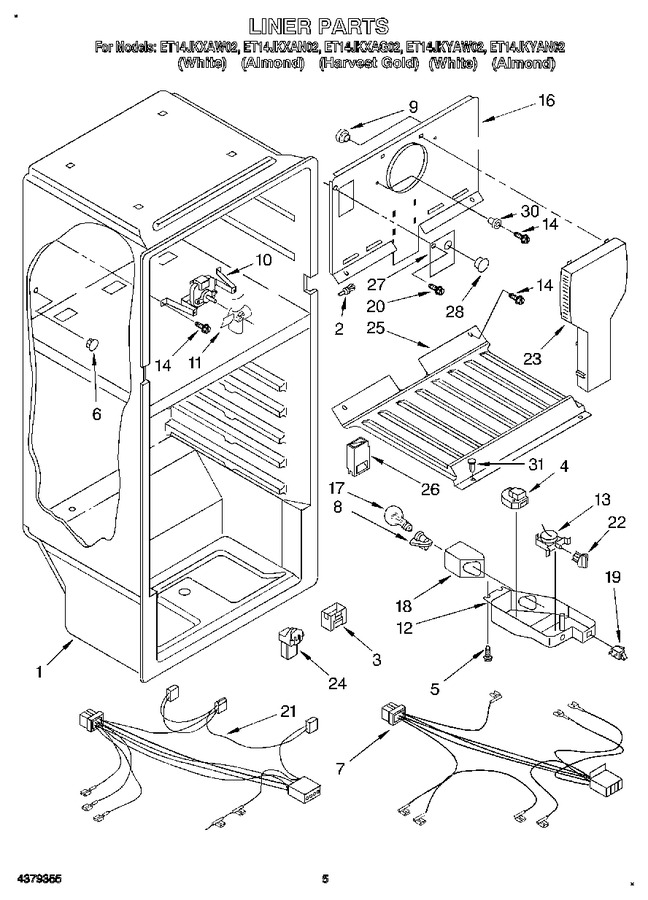

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	939962		Rivet-plastic				$ 11.83
3	9791377		Diffuser-air		Appelez-nous	-
4	WP2183400		Timer, Defrost   (Replaces: 2162044)			Immediately	$ 86.97
5	WP489174		Screw   (Replaces: 489174)				$ 6.95
6	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
7	2176927		Wire Assy. Control Box   (Replaces: 9791406)		Appelez-nous	-
8	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 110.16
9	531933		Grommet				$ 5.70
10	2166013		Fan Motor & Bracket Assy.		Appelez-nous	-
11	2169141		Fan Blade		Appelez-nous	-
12	2215213		Control Box   (Replaces: 9791814)				$ 110.52
13	9790409		Thermostat				$ 104.58
14	WP488163		Screw,   (Replaces: 488163)				$ 7.54
16	9790382		Cover-evaporator		Appelez-nous	-
17	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 11.30
18	W11034434		Light Shield   (Replaces: 9791702)			Immediately	$ 103.73
19	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 37.23
20	WP488729		Screw, 8 X 1/2 A   (Replaces: 487539)			Immediately	$ 7.79
21	9791403		Wiring-freezer		Appelez-nous	-
22	WP2202885		Control Knob   (Replaces: 9791351)				$ 26.38
23	2166065		Air Tower		Appelez-nous	-
24	2166082		Hood & Foil Assembly		Appelez-nous	-
25	2166077		Freezer Floor		Appelez-nous	-
26	9790402		Air Diffuser		Appelez-nous	-
27	WP2217784		Cover, Hole   (Replaces: 944759)				$ 44.97
28	1103725		Hole Plug		Appelez-nous	-
30	2166010		Sleeve		Appelez-nous	-
31	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
31	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
31	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
31	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
31	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
31	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
31	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
31	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
31	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
31	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
31	489115		Fastener-snap In				$ 5.51
31	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
31	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
31	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
31	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
31	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
31	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
31	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
31	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
31	9791757		Door Reversal Instructions		Appelez-nous	-
31	350942		Primer White (13 Oz. Spray Can)				$ 89.66
31	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
31	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
31	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
31	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
31	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
31	833938		Kit, Terminal Connector				$ 8.07
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT2169123		Service & Wiring Sheet		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT2170963		Energy Label		Appelez-nous	-
	1129316		Eckmf90			Immediately	$ 142.01
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-
	LIT2170722		Use & Care Guide		Appelez-nous	-
