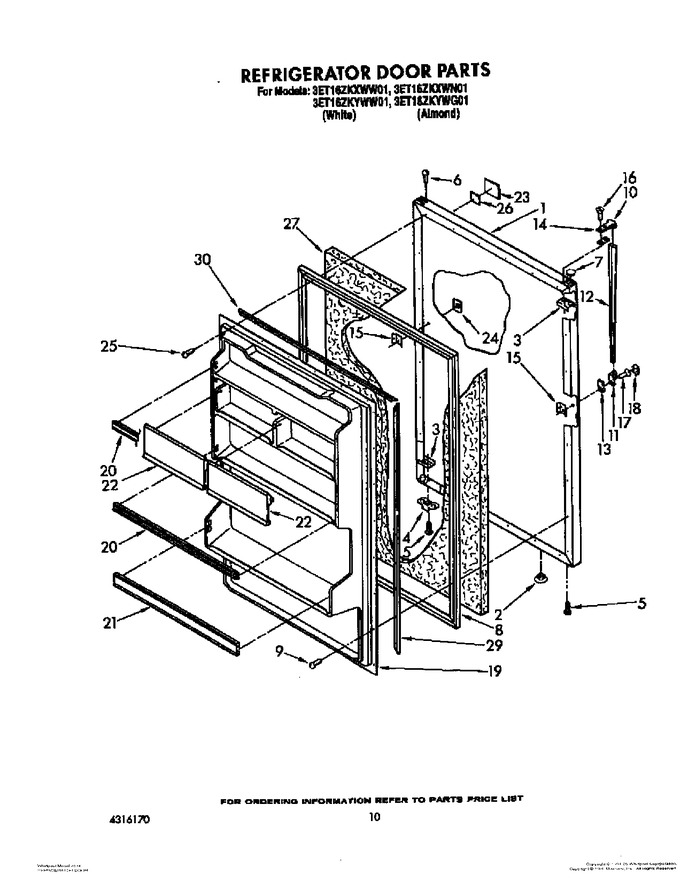

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1103917		Panel, Refrigerator Door (also Order Item 27) (white)		Appelez-nous	-
1	1103919		Panel, Refrigerator Door (also Order Item 27) (almond)		Appelez-nous	-
2	534927		Hole Plug		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	1115910		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.75
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.94
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.80
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2188445A		Door Gasket, Magnetic   (Replaces: 2148043)				$ 187.95
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 7.67
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
10	2148503		Handle End		Appelez-nous	-
11	WP2183139		Handle End Cap   (Replaces: 1101632)			Immediately	$ 49.50
12	2148036		Handle, Center (almond)		Appelez-nous	-
12	WP2162555		Handle, Center (white)   (Replaces: 2148035)			Immediately	$ 150.11
13	992872		Shim, Handle End (side)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 2151669)				$ 7.50
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.49
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.79
18	WP1101634		Screw Cover   (Replaces: 981182)				$ 9.22
19	1120632		Interior Door Panel		Appelez-nous	-
20	1124985		Trim, Door (top) (2)		Appelez-nous	-
21	1124986		Trim, Door (bottom)		Appelez-nous	-
22	1124987		Compartment, Door (2)		Appelez-nous	-
23	945114		Nameplate		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.40
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
25	WP488729		Corner Screw (8)   (Replaces: 489287)			Immediately	$ 7.79
26	991259		Tape Strip		Appelez-nous	-
27	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
29	1120615		Gasket Retainer, Side (2)		Appelez-nous	-
30	1120614		Gasket Retainer, Top & Bottom (2)				$ 27.51
