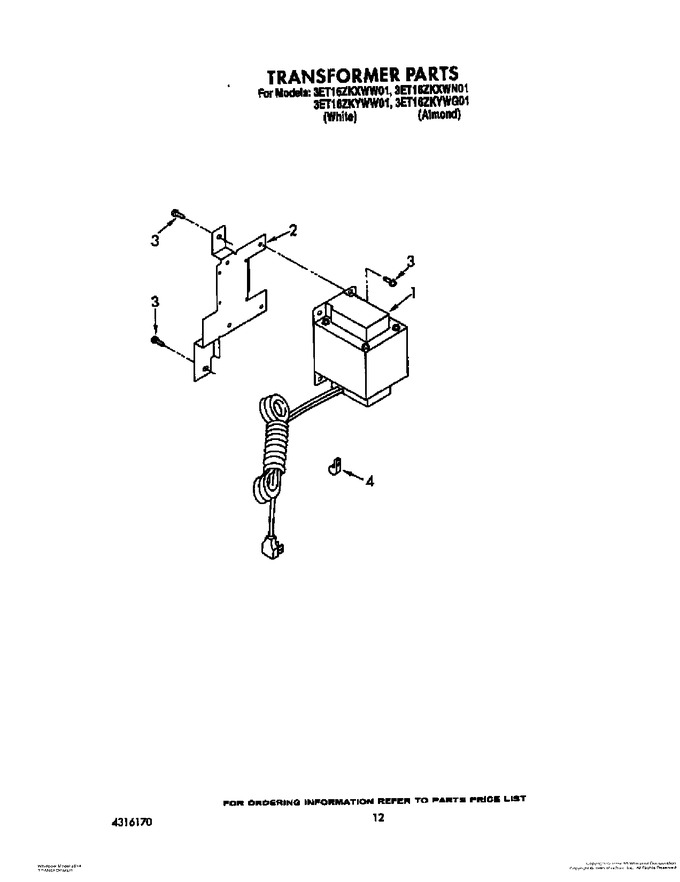

09 - Transformer, Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1129622		Transformer		Appelez-nous	-
2	1129616		Bracket, Transformer		Appelez-nous	-
3	489364		Screw		Appelez-nous	-
4	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
4	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
4	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
4	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
4	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
4	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
4	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
4	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
4	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
4	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
4	833938		Kit, Terminal Connector				$ 8.07
4	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
4	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
4	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
4	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
4	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
4	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
4	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
4	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
4	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
4	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
4	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
4	1129613		Clamp		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
	LIT2156418		Service & Wiring Sheet		Appelez-nous	-
	LIT4316170		Parts List		Appelez-nous	-
	1129316		Eckmf90			Immediately	$ 142.01
	350942		Primer White (13 Oz. Spray Can)				$ 89.66
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	LIT1124990		Care & Use Guide		Appelez-nous	-
	LIT1129732		Care & Use Guide		Appelez-nous	-
	LIT1124782		Energy Label		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
