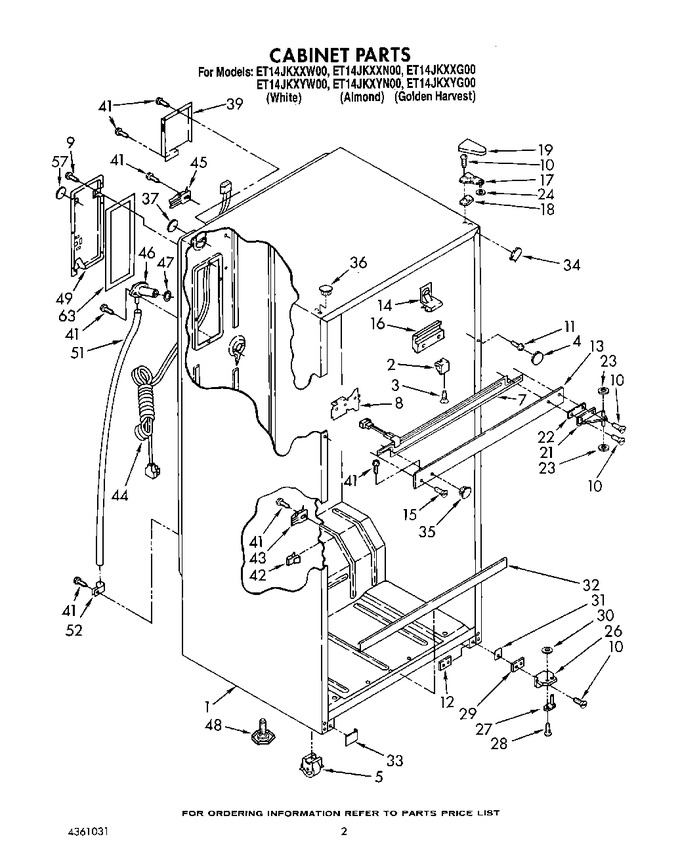

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2149077		Spacer		Appelez-nous	-
3	WP489174		Screw (2)   (Replaces: 489169)				$ 6.95
4	1122929		Hole Plug (2) (white)		Appelez-nous	-
4	1126571		Hole Plug (2) (almond)		Appelez-nous	-
4	1126569		Hole Plug (2) (golden Harvest)		Appelez-nous	-
5	2152014		Roller (4)				$ 8.21
6	WP489349		Screw,   (Replaces: 489349)			Immediately	$ 7.88
7	1118897		Heater, Mullion		Appelez-nous	-
8	1110231		Center Rail, Bracket (2)		Appelez-nous	-
9	WP489464		Screw (8)   (Replaces: 489337)			Immediately	$ 7.83
10	489327		Screw		Appelez-nous	-
11	489370		Screw, 8-32 X 1/2		Appelez-nous	-
12	2147312		Tap Plate (2)		Appelez-nous	-
13	1111511		Center Rail (golden Harvest)		Appelez-nous	-
13	1111510		Center Rail (white)		Appelez-nous	-
13	1111512		Center Rail (almond)		Appelez-nous	-
14	1129018		Clip, Center Rail		Appelez-nous	-
15	489319		Screw		Appelez-nous	-
16	2151428		Center, Rail Shim		Appelez-nous	-
17	1129045		Hinge, Top				$ 15.65
18	1100511		Shim, Hinge Top		Appelez-nous	-
19	842010		Hinge Cover (white)		Appelez-nous	-
19	989896		Hinge Cover (golden Harvest)		Appelez-nous	-
19	989194		Hinge Cover (almond)		Appelez-nous	-
21	1129047		Hinge, Center		Appelez-nous	-
22	836155		Shim, Hinge Center		Appelez-nous	-
23	WP488296		Washer, 11/64 (2)   (Replaces: 488296)				$ 7.19
24	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
26	1123882		Hinge Butt, Bottom (r.h)		Appelez-nous	-
27	654366		Pin, Hinge				$ 27.15
28	488714		Screw 10-32 X 5/16				$ 5.48
29	943708		Shim, Bottom		Appelez-nous	-
30	489201		Washer, 7/64		Appelez-nous	-
31	2151422		Cover, Glider Rail (almond)		Appelez-nous	-
31	2151423		Cover, Glider Rail (golden Harvest)		Appelez-nous	-
31	2151421		Cover, Glider Rail (white)		Appelez-nous	-
32	1109363		Cover, Deck Rail (almond)		Appelez-nous	-
32	1109361		Cover, Deck Rail (golden Harvest)		Appelez-nous	-
32	1109359		Cover, Deck Rail (white)		Appelez-nous	-
33	943552		Cover, Glider Rail (white)		Appelez-nous	-
33	944831		Cover, Glider Rail (almond)		Appelez-nous	-
33	944833		Cover, Glider Rail (golden Harvest)		Appelez-nous	-
34	1110684		Filler, Wrap Corner (2) (white)		Appelez-nous	-
34	1110685		Filler, Wrap Corner (2) (almond)		Appelez-nous	-
34	1110686		Filler, Wrap Corner (2) (golden Harvest)		Appelez-nous	-
35	1119709		Hole Plug (almond)		Appelez-nous	-
35	1119707		Hole Plug (white)		Appelez-nous	-
35	1119708		Hole Plug (golden Harvest)		Appelez-nous	-
36	2151653		Hole Plug (2) (almond)		Appelez-nous	-
36	2151654		Hole Plug (2) (golden Harvest)		Appelez-nous	-
36	WP2151652		Hole Plug (2) (white)   (Replaces: 2151652)				$ 21.78
37	1129056		Hole Seal		Appelez-nous	-
39	942845		Cover, Wiring		Appelez-nous	-
41	WP489478		Screw   (Replaces: 489242)				$ 7.75
42	W10812038		Clip, Wire (4)   (Replaces: 939054)		Appelez-nous	-
43	549193		Clamp-service Cord				$ 13.39
44	937360		Cord, Service		Appelez-nous	-
45	937357		Clamp		Appelez-nous	-
46	942813		Fitting, Drain		Appelez-nous	-
47	1106507		Seal, Gasket		Appelez-nous	-
48	944766		Leveler (2)		Appelez-nous	-
49	1106511		Cover, Plug		Appelez-nous	-
51	8316810		Tube, Drain   (Replaces: 509640)				$ 119.73
52	519405		Clamp (2)		Appelez-nous	-
57	1120224		Hole Seal		Appelez-nous	-
63	1106510		Seal, Gasket		Appelez-nous	-
