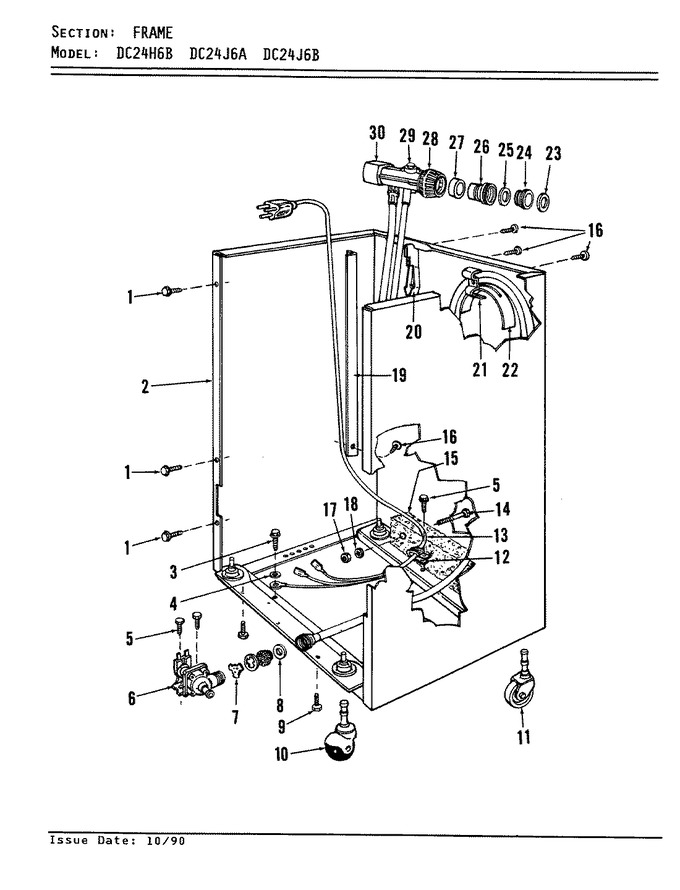

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488234		Screw   (Replaces: 806593)				$ 6.37
2	808533		White Frame		Appelez-nous	-
3	807951		Screw		Appelez-nous	-
4	807373		Washer		Appelez-nous	-
5	807950		Screw		Appelez-nous	-
6	808667		Inlet Valve Kit		Appelez-nous	-
7	808432		Flow Washer		Appelez-nous	-
8	800787		Hose Washer		Appelez-nous	-
9	WP90767		Screw   (Replaces: 808658)			Immediately	$ 7.43
10	809661		Caster		Appelez-nous	-
12	804426		Clamp		Appelez-nous	-
13	805046		Power Cord		Appelez-nous	-
14	808612		Screw		Appelez-nous	-
15	808615		Weight		Appelez-nous	-
16	807501		Screw		Appelez-nous	-
17	808661		Nut		Appelez-nous	-
18	808613		Washer		Appelez-nous	-
19	COMM PART		Hose Guard   (Replaces: 808120)		Appelez-nous	-
20	805859		Hose Guide		Appelez-nous	-
21	806142		Hose Clamp		Appelez-nous	-
22	806143		Hose Support		Appelez-nous	-
23	803393		Washer		Appelez-nous	-
24	800782		Adaptor		Appelez-nous	-
25	803392		Washer		Appelez-nous	-
26	WPW10254672		Aerator   (Replaces: 803149)			Immediately	$ 52.02
27	WP910218		U Packing   (Replaces: 806584)			Immediately	$ 9.50
28	WP285170		Collar Kit   (Replaces: 807499)			Immediately	$ 67.50
29	807498		Relief Kit		Appelez-nous	-
30	DWD8C		Hose Asm   (Replaces: 807496)		Appelez-nous	-
