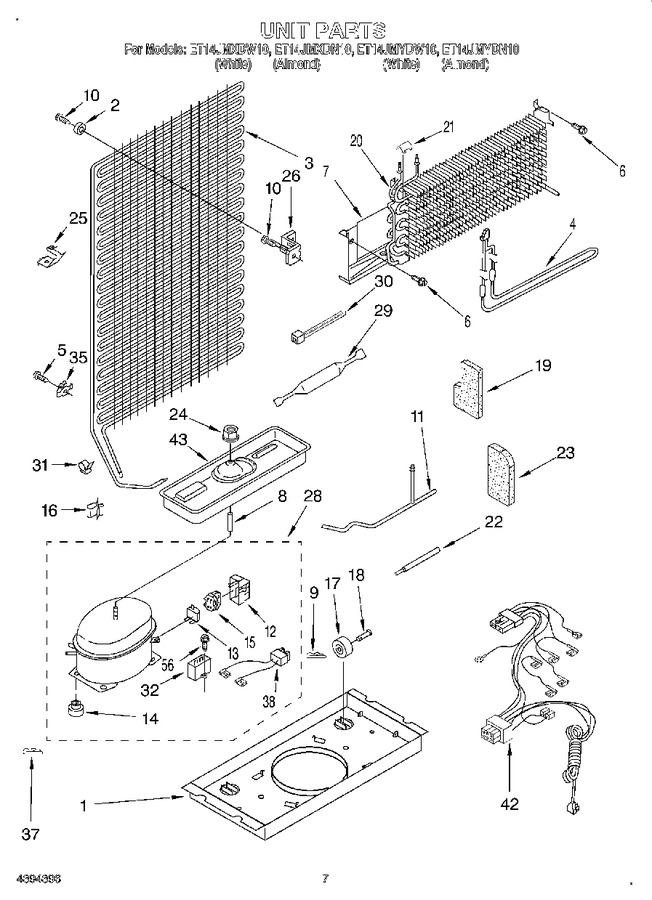

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet
02 - Door
03 - Liner, Lit/optional
04 - Unit
06 - Shelf
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2175260 | Support Plate, Compressor |
|
- | |||||
| 2 | 944772 | Bumper |
|
- | |||||
| 3 | 9790413 | Condenser |
|
- | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 93.70 | ||||
| 5 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 6 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 | |||||
| 7 | 2166097 | Heat Shield |
|
- | |||||
| 8 | 2176844 | Spacer |
|
- | |||||
| 9 | WP2174706 | Clip-roller (Replaces: 2174706) |
|
$ 11.53 | |||||
| 10 | WP488163 | Screw, (Replaces: 488725) |
|
$ 7.92 | |||||
| 11 | 2176854 | Tube, Discharge |
|
- | |||||
| 12 | WP2162358 | Cover (Replaces: 2162358) |
|
$ 95.29 | |||||
| 13 | WP2149959 | Overload (production (includes Relay)) (Replaces: 2149959) |
|
$ 140.06 | |||||
| 13 | 4387913 | Overload (service) (Replaces: 2154759) |
|
Immediately | $ 84.39 | ||||
| 14 | WP2163786 | Grommet (production) (Replaces: 2163786) |
|
$ 8.36 | |||||
| 14 | 876811 | Grommet (service) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 15 | N/A | Start Relay (see Overload) |
|
- | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | 4388239 | Roller (Replaces: 9791758) |
|
Immediately | $ 75.99 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 19 | 2166053 | Wedge-evaporator |
|
- | |||||
| 20 | WP2263919 | Evaporator Assy. (Replaces: 2166055) |
|
$ 324.61 | |||||
| 21 | 9791833 | Clip, Evaporator Tube |
|
- | |||||
| 22 | 2177020 | Tube, Process |
|
- | |||||
| 23 | 2166054 | Wedge-evaporator |
|
- | |||||
| 24 | 285002 | Hex Nut (Replaces: 489153) |
|
$ 12.85 | |||||
| 25 | 4386951 | Clip, Condenser Mounting (Replaces: 2172892) |
|
- | |||||
| 26 | 944791 | Bracket, Condenser |
|
- | |||||
| 28 | 482801 | Installation Kit |
|
$ 119.50 | |||||
| 28 | 876765 | Tube Kit |
|
Immediately | $ 90.65 | ||||
| 28 | W10823815 | Compressor (includes Items 12, 13, 14, 15, 32, 38 & 56) (also Order (Replaces: 2176660) |
|
$ 707.86 | |||||
| 29 | W10843121 | Drier (Replaces: 2174865) |
|
Immediately | $ 57.13 | ||||
| 30 | WPW10339879 | Strap (Replaces: 2155774) |
|
$ 8.30 | |||||
| 31 | 759114 | Wire Clip |
|
- | |||||
| 32 | 2169137 | Capacitor (service Only) |
|
- | |||||
| 35 | 1105406 | Clip, Tube |
|
- | |||||
| 37 | 24364001 | Clip, Compressor |
|
- | |||||
| 38 | WP2172890 | Wire Assembly (Replaces: 2172890) |
|
$ 8.51 | |||||
| 42 | 2177021 | Wire Assy. Unit |
|
$ 109.69 | |||||
| 43 | 2176668 | Tray, Evaporator |
|
$ 77.40 | |||||
| 56 | 482278 | Start Kit |
|
- | |||||
| 56 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 56 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 56 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 56 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 56 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 56 | 876811 | Screw (Replaces: 489373) |
|
$ 7.79 | |||||
| 56 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 56 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 |
