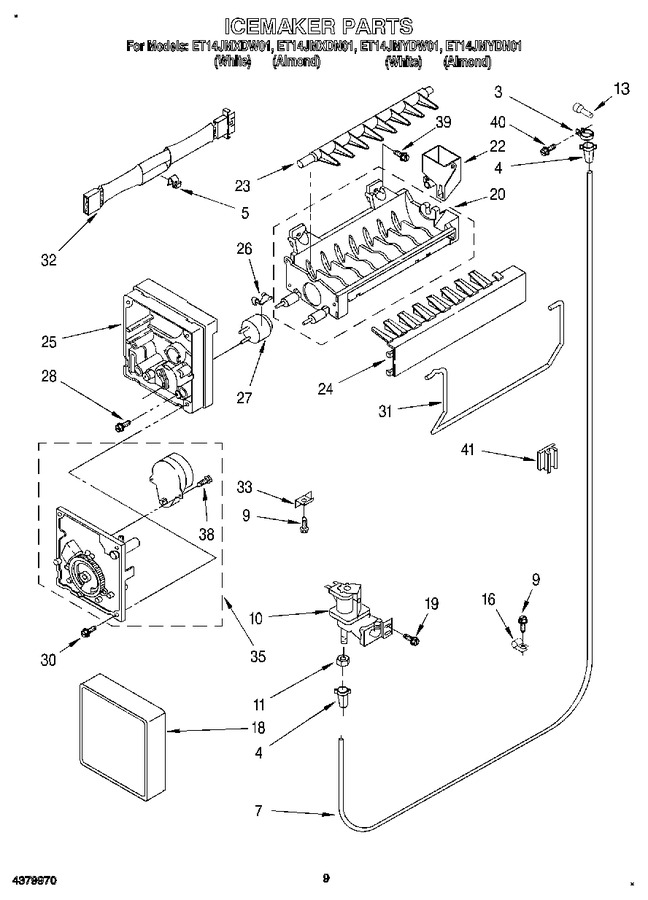

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet
02 - Door
03 - Liner, Lit/optional
04 - Unit
05 - Icemaker
06 - Shelf
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WP488878 | Clamp, Tube (Replaces: 488878) |
|
$ 12.18 | |||||
| 4 | 4387491 | Insert, Tube (Replaces: 841707) |
|
$ 8.23 | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 7 | W10823511 | Tube, Water (Replaces: 1108197) |
|
Immediately | $ 32.41 | ||||
| 9 | WP489478 | Screw, 8 X 1/2 (Replaces: 489242) |
|
$ 8.18 | |||||
| 10 | WP2315576 | Valve, Solenoid (Replaces: 2171999) |
|
Immediately | $ 95.98 | ||||
| 11 | WP627018 | Nut, Compression (Replaces: 627018) |
|
$ 11.51 | |||||
| 13 | 2174755 | Tube, Water Inlet |
|
$ 22.18 | |||||
| 16 | WP488366 | Clamp, Tube (Replaces: 489385) |
|
$ 11.92 | |||||
| 18 | 2174157 | Cover |
|
- | |||||
| 19 | WP250830 | Screw (Replaces: 489048) |
|
$ 8.78 | |||||
| 20 | WPW10190929 | Mold & Heater Assembly (also Order (Replaces: 628228) |
|
$ 233.15 | |||||
| 20 | WP542638 | Silicone Grease (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 53.75 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 24 | WP2182124 | Ice Stripper (Replaces: 627788) |
|
$ 90.35 | |||||
| 25 | WP2195914 | Support (Replaces: 627790) |
|
$ 109.80 | |||||
| 26 | WP2315522 | Retainer, Thermostat (Replaces: 627796) |
|
$ 11.60 | |||||
| 27 | 542369 | Cement Alumilastic) |
|
- | |||||
| 27 | WP627985 | Thermostat (also Order) (Replaces: 628397) |
|
$ 114.64 | |||||
| 28 | 8533917 | Screw (Replaces: 489322) |
|
$ 14.04 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 31 | WP627792 | Shut Off Arm (Replaces: 627792) |
|
$ 88.76 | |||||
| 32 | WP2187464 | Harness, Wiring (Replaces: 628256) |
|
$ 130.80 | |||||
| 33 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 33.78 | ||||
| 35 | W10190935 | Module Assembly (includes Item 38) (Replaces: 628399) |
|
Immediately | $ 110.07 | ||||
| 38 | 489136 | Screw (3-24 X 23/64) |
|
$ 10.80 | |||||
| 39 | WP488163 | Screw, 8 X 13/16 (Replaces: 488208) |
|
$ 7.92 | |||||
| 40 | WP488787 | Screw, (8-18 X 1/2) (Replaces: 488886) |
|
$ 11.26 | |||||
| 41 | W11501419 | Clip-fill Tube (Replaces: 2154101) |
|
Immediately | $ 12.10 | ||||
| 100 | 4317943 | Complete Icemaker Assembly |
|
Immediately | $ 183.45 |
