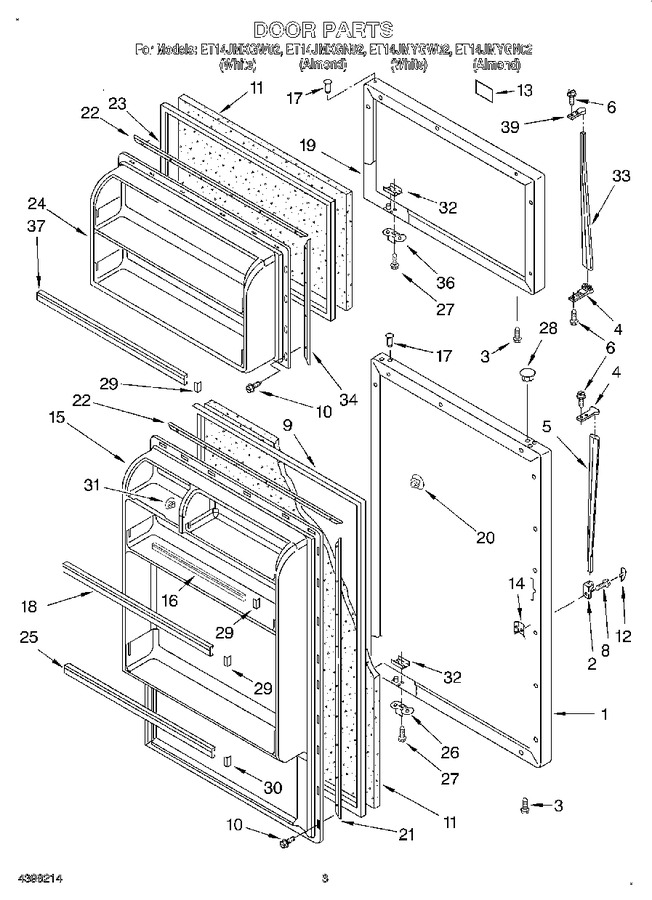

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2201546		Refrigerator Door Panel (also Order Item 11) (white)		Appelez-nous	-
1	2201547		Refrigerator Door Panel (also Order Item 11) (almond)		Appelez-nous	-
2	819342		End Cap (white Model)   (Replaces: 2183141)			Immediately	$ 47.96
2	819342		End Cap (almond Model)   (Replaces: 2183142)			Immediately	$ 47.96
3	WP8281206		Screw   (Replaces: 489028)				$ 7.94
4	819342		End Cap, Handle (almond Model)   (Replaces: 2191879)			Immediately	$ 47.96
4	819342		End Cap, Handle (white Model)   (Replaces: 2191877)			Immediately	$ 47.96
5	2148036		Handle, Center (almond Model)		Appelez-nous	-
5	WP2162555		Handle, Center (white Model)   (Replaces: 2148035)			Immediately	$ 150.11
6	WP8281206		Screw   (Replaces: 3400879)				$ 7.94
8	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.79
9	2188448A		Door Gasket, Magnetic   (Replaces: 2191888)				$ 154.65
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	9791770		Cover, Screw (almond Model)		Appelez-nous	-
12	9791769		Cover, Screw (white Model)				$ 5.70
13	2183209		Nameplate (almond Model)		Appelez-nous	-
13	2157907		Nameplate (white)				$ 6.56
14	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
15	2173725		Panel, Interior Door (refrigerator)		Appelez-nous	-
16	WP2163629		Trim, Door Shelf (top)   (Replaces: 2163630)			Immediately	$ 63.40
17	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
18	WP2163629		Trim, Door (middle)   (Replaces: 2163631)			Immediately	$ 63.40
19	2201544		Freezer Door Panel (also Order Item 11) (white)		Appelez-nous	-
19	2201545		Freezer Door Panel (also Order Item 11) (almond)		Appelez-nous	-
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.40
20	2189008		Hole Plug (almond)		Appelez-nous	-
21	1122551		Retainer, Gasket		Appelez-nous	-
22	1120614		Retainer, Gasket				$ 27.51
23	2188462A		Door Gasket, Magnetic   (Replaces: 2191889)			Immediately	$ 114.77
24	9790358		Interior Door Panel (freezer)		Appelez-nous	-
25	2163628		Trim, Door Shelf (bottom)		Appelez-nous	-
26	944036		Bracket, Door Stop		Appelez-nous	-
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
28	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.80
28	989196		Hole Plug (almond)		Appelez-nous	-
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
31	2163372		Hole Plug		Appelez-nous	-
32	2183198		Tap Plate		Appelez-nous	-
33	WP2162555		Handle, F.c. (white Model)   (Replaces: 2148068)			Immediately	$ 150.11
33	2148069		Handle, F.c. (almond Model)		Appelez-nous	-
34	1122553		Retainer, Gasket		Appelez-nous	-
36	944035		Stop, Door		Appelez-nous	-
37	WP2163629		Trim-door (2)   (Replaces: 2163629)			Immediately	$ 63.40
39	819342		Handle End (almond Model)   (Replaces: 2191878)			Immediately	$ 47.96
39	819342		Handle End (white Model)   (Replaces: 2191876)			Immediately	$ 47.96
