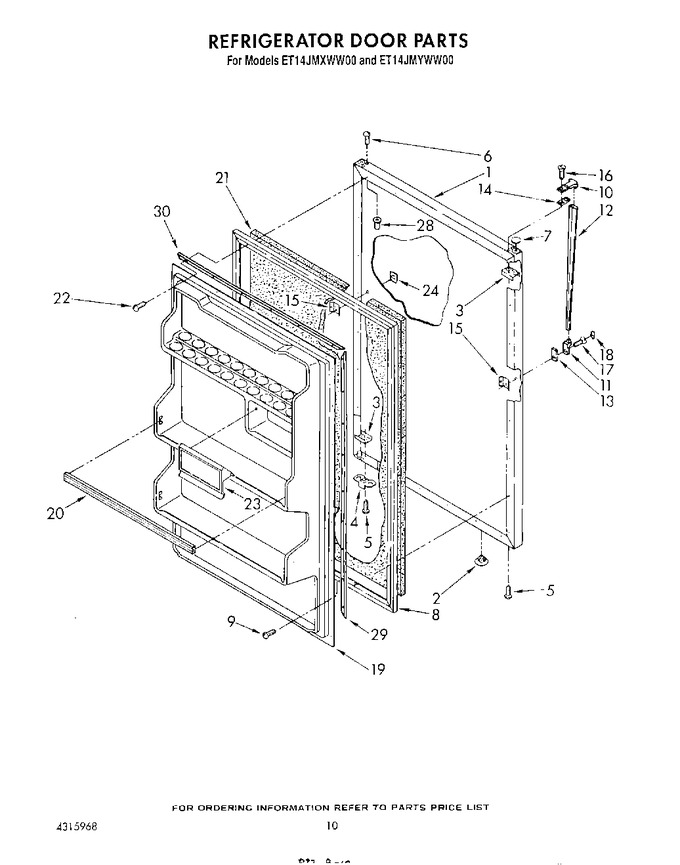

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet
03 - Liner
04 - Compartment Separator
05 - Shelf
06 - Freezer Door
07 - Unit
08 - Refrigerator Door
09 - Ice Maker , Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1103917 | Panel, Refrigerator Door (white) |
|
- | |||||
| 1 | 1103919 | Panel, Refrigerator Door (almond) (also Order Item 21) |
|
- | |||||
| 2 | 534927 | Hole Plug |
|
- | |||||
| 3 | 943185 | Plate, Tap (4) |
|
- | |||||
| 4 | 1115910 | Bracket, Door Stop |
|
- | |||||
| 5 | 488930 | Screw (repair) |
|
- | |||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 6 | 488930 | Screw (repair) |
|
- | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 8 | 2188445A | Door Gasket, Magnetic (Replaces: 1122826) |
|
$ 197.35 | |||||
| 9 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10141645 | Screw (repair) (Replaces: 489084) |
|
$ 8.05 | |||||
| 10 | 819342 | Handle End (Replaces: 1108952) |
|
Immediately | $ 47.96 | ||||
| 11 | 819342 | Handle End, Side (Replaces: 1110056) |
|
Immediately | $ 47.96 | ||||
| 12 | 1109166 | Handle, Center |
|
- | |||||
| 13 | 992872 | Shim, Handle End (side) |
|
- | |||||
| 14 | 943188 | Spacer, Handle Door |
|
$ 7.80 | |||||
| 15 | WP939101 | Screw Anchor (2) (Replaces: 939101) |
|
$ 7.88 | |||||
| 16 | 488923 | Screw (repair) |
|
- | |||||
| 16 | WP488920 | Screw, 8 X 5/8 (Replaces: 489006) |
|
$ 7.98 | |||||
| 17 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 18 | WP1101634 | Screw Cover (Replaces: 1110059) |
|
$ 9.68 | |||||
| 19 | 1120628 | Interior Door Panel |
|
- | |||||
| 20 | 1116031 | Trim, Door (top) (2) |
|
- | |||||
| 21 | 876029 | Foam Insulation (required When Replacing Exterior Door Panel) |
|
- | |||||
| 22 | WP488729 | Corner Screw (8) (Replaces: 489287) |
|
Immediately | $ 8.28 | ||||
| 23 | 1110148 | Compartment, Butter Door |
|
- | |||||
| 24 | WP2189000 | Hole Plug, Handle (white) (Replaces: 1122653) |
|
Immediately | $ 7.77 | ||||
| 24 | 1122654 | Hole Plug, Handle (almond) |
|
- | |||||
| 28 | 509929 | Cap, Hinge Sleeve (2) |
|
- | |||||
| 29 | 1120615 | Gasket Retainer, Side (2) |
|
- | |||||
| 30 | 1120614 | Gasket Retainer, Top & Bottom (2) |
|
$ 27.51 |
