View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

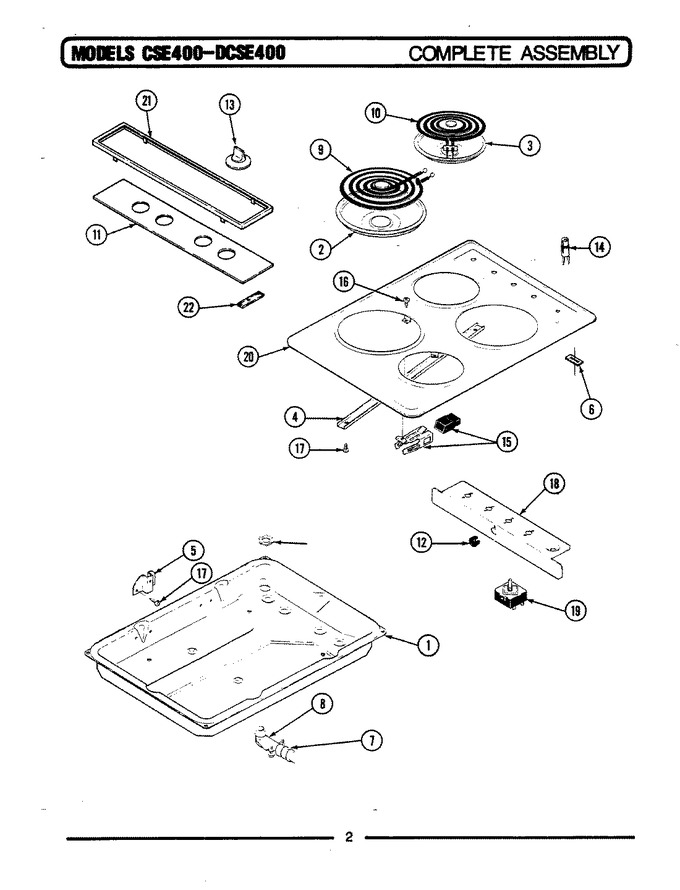

01 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 561160 | Bottom, Burner Box | 1 |
|
- | ||||
| 2 | WPW10196405 | Reflector Pan-large (Replaces: 560216) | 1 |
|
Immediately | $ 15.56 | |||
| 3 | WPW10196406 | Reflector Pan-small (Replaces: 560215) | 1 |
|
Immediately | $ 12.42 | |||
| 4 | 561149 | Brace, Top | 1 |
|
- | ||||
| 5 | 561153 | Bracket, Top Support | 1 |
|
- | ||||
| 6 | 7112P076-60 | Clip, Push-on | 1 |
|
- | ||||
| 7 | 5700A214-60 | Conduit Assy, Flex | 1 |
|
- | ||||
| 8 | 7417P004-60 | Connector, Right Ang | 1 |
|
- | ||||
| 9 | WP3191454 | Element (Replaces: 561102) | 1 |
|
$ 171.81 | ||||
| 10 | WP660532 | Element, Surface (Replaces: 561103) | 1 |
|
Immediately | $ 45.10 | |||
| 11 | 561155 | Glass, Control | 1 |
|
- | ||||
| 12 | 551386 | Grommet, Nylon | 1 |
|
- | ||||
| 13 | 7737P022-60 | Knob, Element Switch | 1 |
|
- | ||||
| 14 | 561156 | Light, Signal | 1 |
|
- | ||||
| 15 | 561158 | Receptacle, Surface Element | 1 |
|
- | ||||
| 16 | WP74004005 | Screw (Replaces: 561143) | 1 |
|
$ 7.79 | ||||
| 17 | WP4159193 | Screw (Replaces: 560975) | 1 |
|
$ 4.56 | ||||
| 18 | 561154 | Shield, Switch Wiring | 1 |
|
- | ||||
| 19 | W10900107 | Switch (Replaces: 561157) | 1 |
|
Immediately | $ 51.87 | |||
| 19 | 561149 | Brace, Top | 1 |
|
- | ||||
| 20 | 561152 | Top, Main Brush Chrome | 1 |
|
- | ||||
| 21 | 560955 | Trim, Control Panel | 1 |
|
- | ||||
| 22 | 561047 | Seal, Glass Spacer | 1 |
|
- |
