SELECT A DIAGRAM

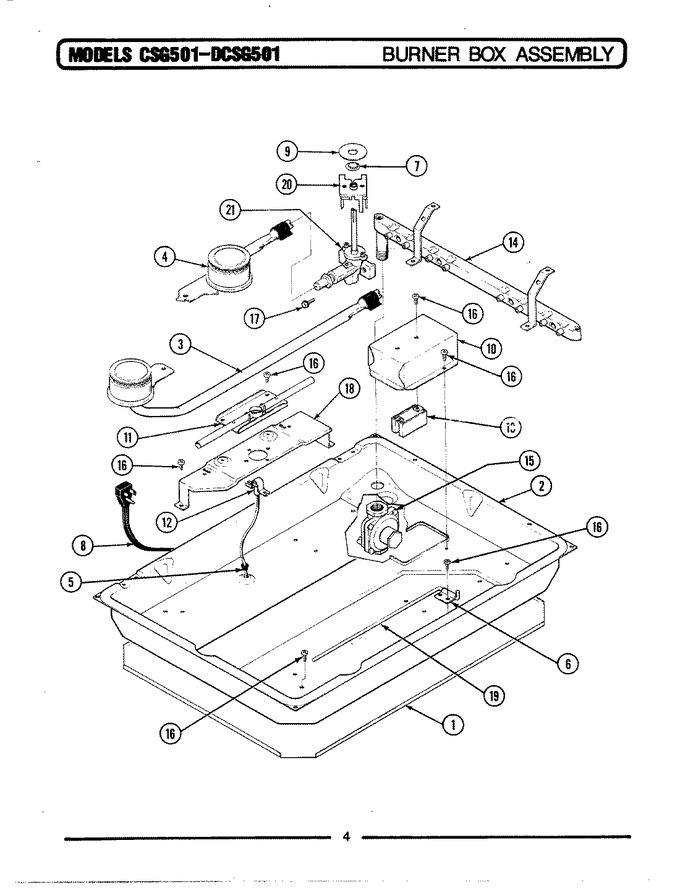

01 - Burner Box Assembly


02 - Top Cover Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601F185-51		Baffle, Bottom		Appelez-nous	-
2	561135		Bottom, Burner Box		Appelez-nous	-
3	560958		Burner, Top Left		Appelez-nous	-
4	560959		Burner, Top Right		Appelez-nous	-
5	550707		Bushing - Strain Relief		Appelez-nous	-
6	551205		Clamp, Top Stop		Appelez-nous	-
7	560960		Clip, Retainer Switch		Appelez-nous	-
8	560920		Cord, Set		Appelez-nous	-
9	560939		Shield, Burner Valve		Appelez-nous	-
10	560961		Cover, Transformer		Appelez-nous	-
11	560965		Tub, Assy Flash		Appelez-nous	-
12	WP7101P126-60		Screw, Mainifold   (Replaces: 560976)			Immediately	$ 7.52
12	560963		Spark, Igniter		Appelez-nous	-
14	561136		Pipe, Manifold		Appelez-nous	-
15	551265		Regulator, Pressure		Appelez-nous	-
17	550748		Valve Screw		Appelez-nous	-
18	560964		Support, Burner		Appelez-nous	-
19	COMM PART		Support, Prop Top   (Replaces: 561080)		Appelez-nous	-
20	WP7403P190-60		Switch, Top Burner   (Replaces: 7403P041-60)				$ 124.76
21	561137		Valve, Burner Tri-temp		Appelez-nous	-
NI	551005		Module, Spark		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
