SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Unit


06 - Door, Lit/optional


07 - Shelf

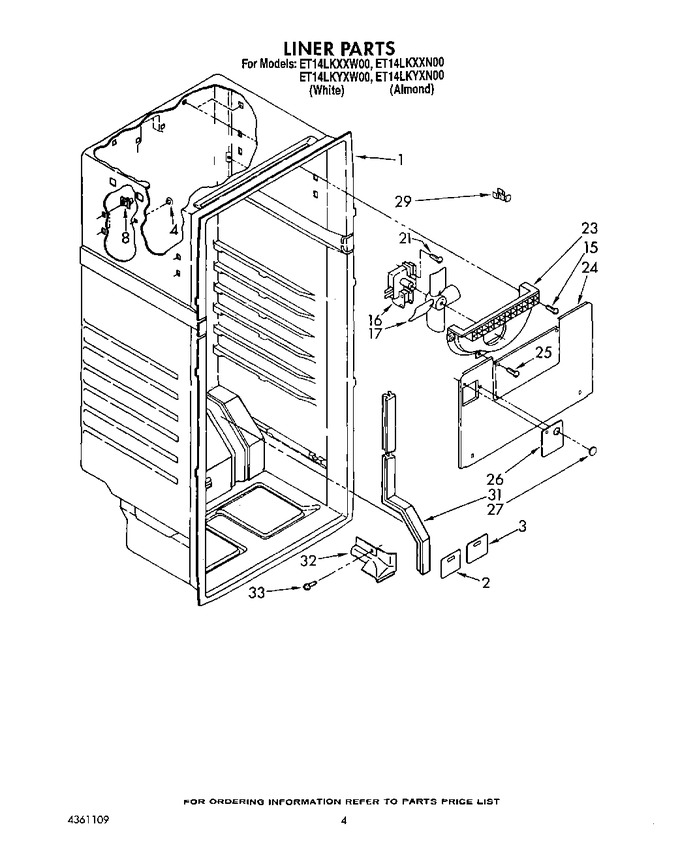

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	935696		Cover, Air Duct		Appelez-nous	-
3	946207		Shield, Wiring		Appelez-nous	-
4	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
8	939065		Stud, Evaporator (2)				$ 7.25
15	WP489478		Screw   (Replaces: 489242)				$ 8.18
16	482731		Motor, Fan   (Replaces: 1105609)			Immediately	$ 92.36
17	WP1100938		Fan, Blade   (Replaces: 1100938)				$ 92.26
21	489168		Screw, 8 X 1-1/4 (2)		Appelez-nous	-
23	1122814		Scroll, Fan		Appelez-nous	-
24	2152289		Evaporator Cover		Appelez-nous	-
25	WP488729		Screw   (Replaces: 489196)			Immediately	$ 8.28
26	WP2217784		Hole Cover, Evaporator   (Replaces: 1129070)				$ 47.22
27	1103725		Hole Plug		Appelez-nous	-
31	935704		Cover Tube, Rear		Appelez-nous	-
32	941776		Cover Tube, Bottom		Appelez-nous	-
33	WP488729		Screw   (Replaces: 489196)			Immediately	$ 8.28

    View Diagram in Separate Window       Print Part List
