SELECT A DIAGRAM

01 - Door


02 - Cabinet


03 - Liner, Lit/optional


04 - Unit


05 - Shelf

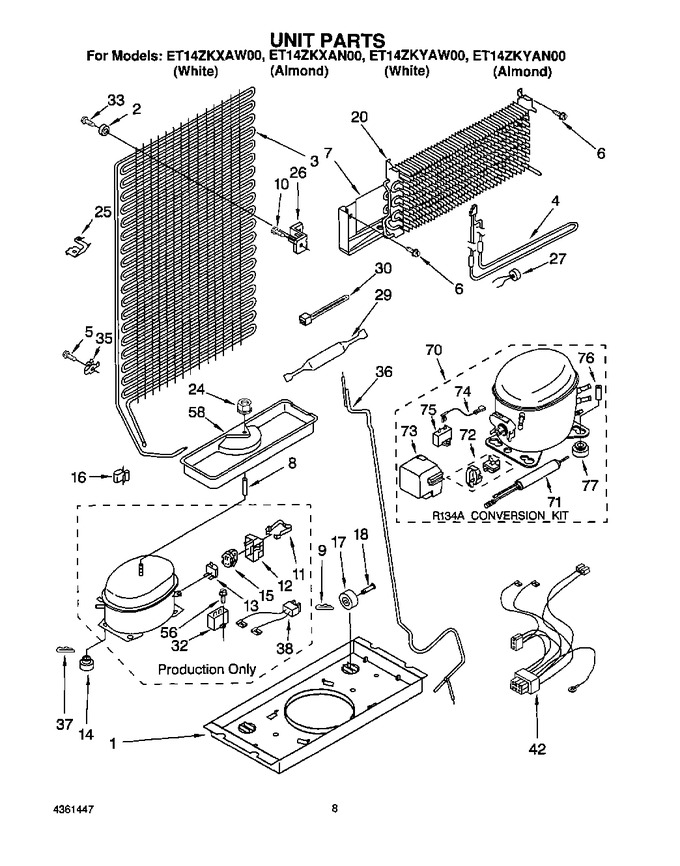

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9791635		Support Plate, Compressor		Appelez-nous	-
2	944772		Bumper (2)		Appelez-nous	-
3	9790413		Condenser		Appelez-nous	-
4	WP2263749		Heater, Defrost   (Replaces: 2166031)			Immediately	$ 93.70
5	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.72
6	WP965173		Screw   (Replaces: 487869)			Immediately	$ 10.72
7	9791383		Heat Shield		Appelez-nous	-
8	1105130		Spacer		Appelez-nous	-
9	20150912		Clip-pin		Appelez-nous	-
10	WP489478		Screw   (Replaces: 489242)				$ 7.75
11	938384		Strap		Appelez-nous	-
12	1108115		Cover		Appelez-nous	-
13	1108114		Overload (service)		Appelez-nous	-
13	2154758		Overload (production)		Appelez-nous	-
14	876811		Grommet, (service Compressor) (4)   (Replaces: 1100826)				$ 7.42
14	WP2163786		Grommet (4) (production)   (Replaces: 2163786)				$ 7.96
15	WP2262181		Start Relay   (Replaces: 1108143)				$ 122.65
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	4388239		Roller   (Replaces: 9791758)			Immediately	$ 72.37
18	20150911		Pin-roller		Appelez-nous	-
20	WP2263919		Evaporator Assy. Bracket (2)   (Replaces: 9791441)				$ 309.15
24	285002		Hex Nut   (Replaces: 489153)				$ 12.24
25	4386951		Clip, Condenser Mounting (2)   (Replaces: 942852)		Appelez-nous	-
26	944791		Bracket, Condenser		Appelez-nous	-
27	WP4387490		Defrost Bimetal   (Replaces: 9791823)			Immediately	$ 30.88
29	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 52.57
30	851095		Clamp		Appelez-nous	-
32	WPW10662129		Run Capacitor   (Replaces: 1118581)			Immediately	$ 58.86
33	WP489174		Screw   (Replaces: 489169)				$ 6.95
35	1105406		Clip, Tube		Appelez-nous	-
36	9791825		Heat Exchanger		Appelez-nous	-
37	24364001		Clip, Compressor		Appelez-nous	-
38	WP2172890		Wire Asm   (Replaces: 1127675)				$ 8.10
42	9790416		Wire Assy. Unit		Appelez-nous	-
56	W11693756		Screw   (Replaces: 487240)			Immediately	$ 14.06
58	1101002		Evaporator Tray		Appelez-nous	-
70	876765		Tube Kit			Immediately	$ 86.33
70	4388007		Compressor (includes Items 71, 72, 73, 74, 75, 76, & 77) Also Order		Appelez-nous	-
71	W10843121		Drier   (Replaces: 4387019)			Immediately	$ 52.57
72	4387913		Overload/relay Asy.   (Replaces: 4387766)			Immediately	$ 84.39
73	WP2162358		Cover, Terminal   (Replaces: 4387731)				$ 90.75
74	WP2172890		Wire, Capacitor   (Replaces: 2172890)				$ 8.10
75	WP4387764		Capacitor   (Replaces: 4387764)				$ 177.04
76	4387559		Sleeve		Appelez-nous	-
77	482278		Start Kit		Appelez-nous	-
77	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
77	978030		Valve, Access (3/4``)				$ 130.71
77	876764		Valve, Access(3/16``)			Immediately	$ 91.35
77	WP4387558		Grommet   (Replaces: 4387558)				$ 6.95
77	978026		Valve, Access (5/16``)			Immediately	$ 128.09
77	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
77	978028		Valve, Access (1/2)		Appelez-nous	-
77	978029		Valve Access (5/8``)				$ 93.85

    View Diagram in Separate Window       Print Part List
