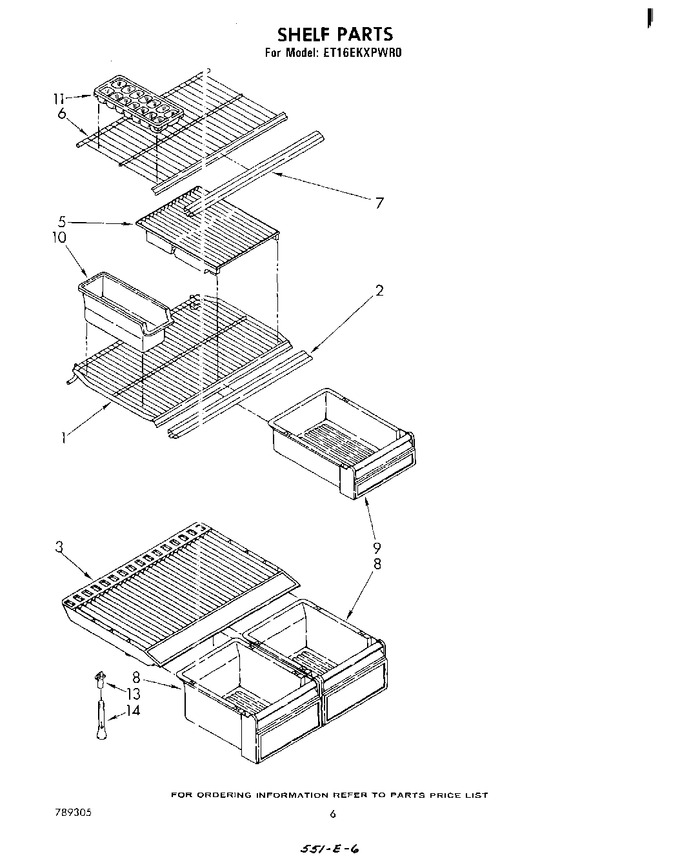

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 943785 | Shelf, Pullout (3) |
|
- | |||||
| 2 | 935749 | Trim, Shelf (front) |
|
- | |||||
| 3 | 1104970 | Cover, Crisper |
|
- | |||||
| 5 | 944740 | Cover, Meat Pan |
|
- | |||||
| 6 | 943783 | Shelf, Freezer |
|
- | |||||
| 7 | 942840 | Trim, Shelf (front) |
|
- | |||||
| 8 | 1104971 | Pan, Crisper (2) |
|
- | |||||
| 9 | 1104972 | Pan, Meat |
|
- | |||||
| 10 | WP982704 | Container, Utility (Replaces: 1104927) |
|
$ 32.55 | |||||
| 11 | WP841180A | Tray, Ice (2) (Replaces: 841180) |
|
Immediately | $ 47.84 | ||||
| 13 | 1103731 | Support, Crisper Cover |
|
- | |||||
| 14 | 836410 | Post, Cripser Cover |
|
$ 5.84 |
