SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf


06 - Freezer Door


07 - Unit


08 - Refrigerator Door , Lit/optional

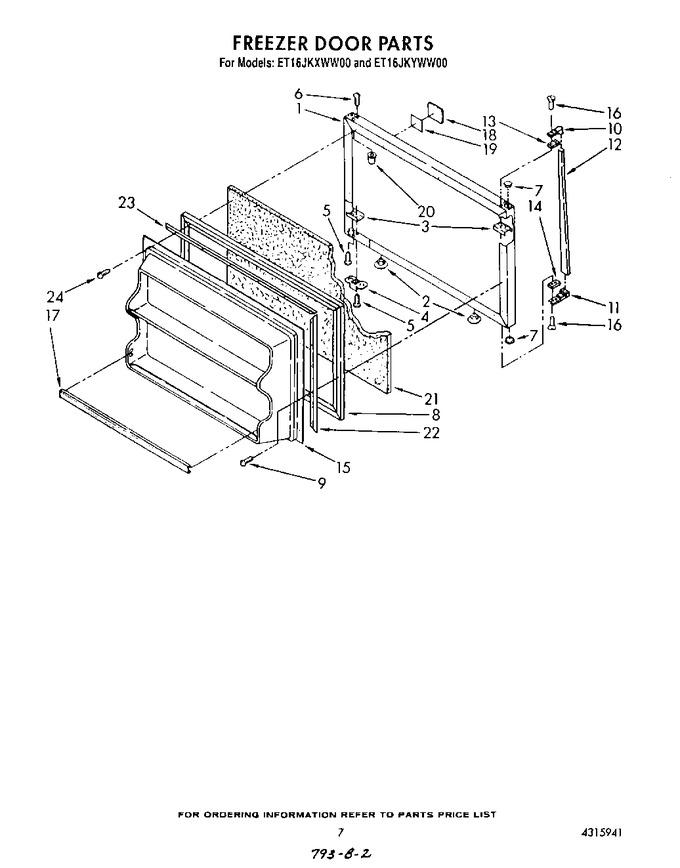

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1103940		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
1	1103944		Panel, Freezer Door (also Order Item 21) (platinum)		Appelez-nous	-
1	1103943		Panel, Freezer Door (also Order Item 21) (toast)		Appelez-nous	-
1	1103942		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
1	1103941		Panel, Freezer Door (also Order Item 21) (golden Harvest)		Appelez-nous	-
2	1100197		Hole Plug (platinum)		Appelez-nous	-
2	534927		Hole Plug (white)		Appelez-nous	-
2	989197		Hole Plug (almond)		Appelez-nous	-
2	989879		Hole Plug (golden Harvest)		Appelez-nous	-
2	1100196		Hole Plug (toast)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	488930		Screw (repair)		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.75
6	WP8281206		Screw, 8-18 X 1/2   (Replaces: 489028)				$ 7.94
6	488930		Screw (repair)		Appelez-nous	-
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 7.80
7	1100188		Hole Plug (toast)		Appelez-nous	-
7	1100189		Hole Plug (platinum)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.80
8	WP2188456A		Door Gasket (magnetic)   (Replaces: 1122829)				$ 246.18
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 7.67
10	1108955		Handle End, Top		Appelez-nous	-
11	819342		Handle End   (Replaces: 1108952)			Immediately	$ 47.96
12	1109171		Handle, Center		Appelez-nous	-
13	943187		Shim, Handle				$ 25.14
14	943188		Spacer, Handle Door				$ 7.80
15	1120629		Panel, Interior Door (freezer)		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.49
16	488923		Screw (repair)		Appelez-nous	-
17	1116038		Trim, Door Shelf		Appelez-nous	-
18	945119		Nameplate		Appelez-nous	-
19	991259		Strip, Tape		Appelez-nous	-
20	509929		Cap, Hinge Sleeve (2)		Appelez-nous	-
21	876029		Insulation Foam (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	1120613		Gasket Retainer, Side (2)		Appelez-nous	-
23	1120614		Gasket Retainer, Top & Bottom (2)				$ 27.51
24	WP488729		Corner Screw (8)   (Replaces: 489287)			Immediately	$ 7.79

    View Diagram in Separate Window       Print Part List
