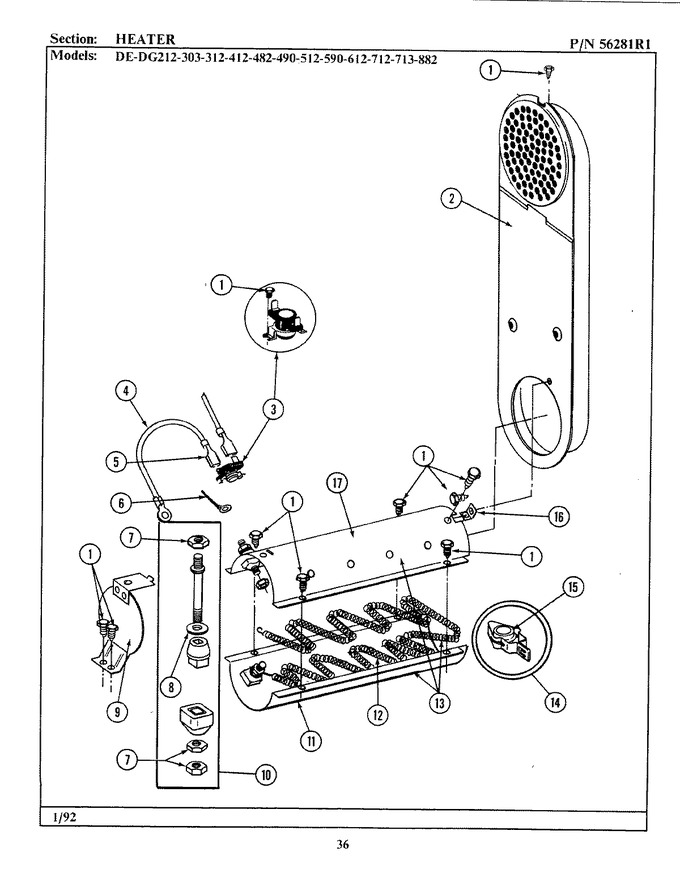

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.82 | |||
| 2 | Y303362 | Inlet Duct Assembly - De | 00 |
|
- | ||||
| 3 | WP303396 | Thermostat, Hi-limit (elec) (Replaces: 303396) | 00 |
|
Immediately | $ 48.91 | |||
| 3 | WP303896 | Hi-limit Thermostat-canada (Replaces: 303896) | 00 |
|
Immediately | $ 73.47 | |||
| 4 | WPY304693 | Jumper Wire (Replaces: Y304693) | 00 |
|
Immediately | $ 7.19 | |||
| 5 | 210745 | Wire Terminal | 00 |
|
- | ||||
| 6 | 306448 | Wire | 00 |
|
- | ||||
| 7 | WP112432 | Nut, Terminal Block (Replaces: 311484) | 00 |
|
$ 7.96 | ||||
| 8 | WP311093 | Washer, 7/32 Inch (Replaces: 311093) | 00 |
|
$ 8.05 | ||||
| 9 | 304124 | Heater Shield | 00 |
|
- | ||||
| 10 | Y304596 | Terminal Insulator Assembly | 00 |
|
Immediately | $ 25.52 | |||
| 11 | Y313576 | Heater Chamber, Bottom | 00 |
|
- | ||||
| 12 | WPY313538 | Heater Element 240 Volt (Replaces: Y313538) | 00 |
|
Immediately | $ 52.82 | |||
| 13 | WPY303404 | Heater Assembly Complete (Replaces: Y303404) | 00 |
|
Immediately | $ 294.30 | |||
| 14 | WPY303881 | Clip And Insulator Assembly (Replaces: Y303881) | 00 |
|
Immediately | $ 21.99 | |||
| 15 | Y313270 | Insulator For Heater Elemen | 00 |
|
$ 5.85 | ||||
| 16 | Y312890 | Retainer, Heater Chamber | 00 |
|
- | ||||
| 17 | Y313575 | Heater Chamber, Top | 00 |
|
- |
