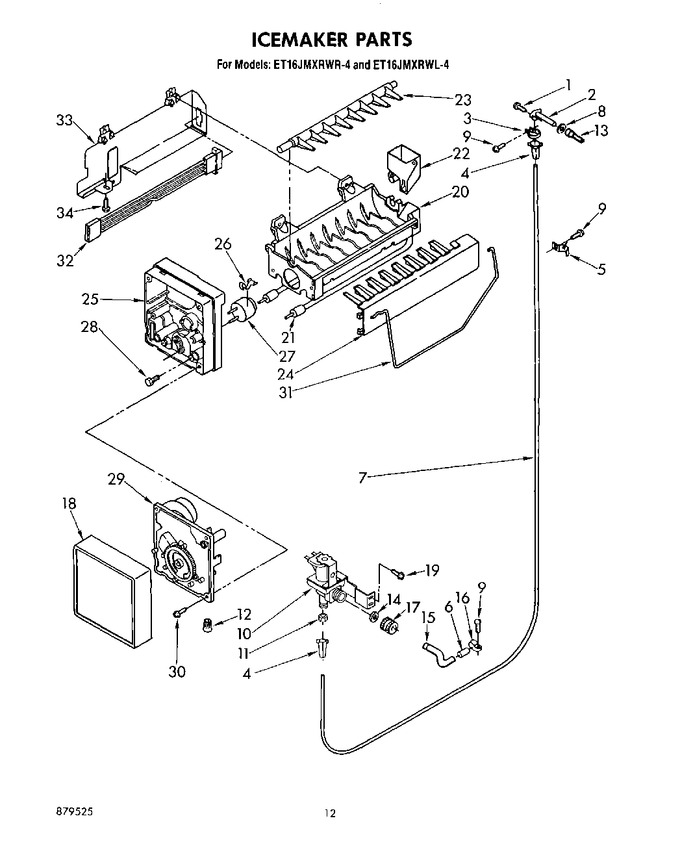

09 - Icemaker, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 7.67 | |||||
| 2 | WP2196157 | Fitting, Water Tube (Replaces: 836489) |
|
Immediately | $ 11.99 | ||||
| 3 | WP488878 | Clamp, Tube (Replaces: 488878) |
|
$ 11.60 | |||||
| 4 | 4387491 | Insert, Tube (2) (Replaces: 841707) |
|
$ 7.84 | |||||
| 5 | WP488366 | Clamp, Tube (3) (Replaces: 488366) |
|
$ 11.18 | |||||
| 6 | WP2158826 | Dampener (Replaces: 836074) |
|
$ 1.73 | |||||
| 7 | W10823511 | Tube, Water (Replaces: 653415) |
|
Immediately | $ 32.41 | ||||
| 8 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 9.93 | ||||
| 9 | WP489069 | Screw, 8 X 1/2 (Replaces: 488645) |
|
Immediately | $ 7.86 | ||||
| 10 | 4318047 | Valve, Solenoid (Replaces: 627932) |
|
Immediately | $ 74.09 | ||||
| 11 | WP627018 | Nut, Compression (Replaces: 627018) |
|
$ 10.97 | |||||
| 12 | 227991 | Connector Wire |
|
- | |||||
| 13 | 939027 | Tube, Water Inlet |
|
- | |||||
| 14 | WP16123 | Washer (Replaces: 488292) |
|
$ 7.70 | |||||
| 15 | 627883 | Tube, Inlet Valve |
|
- | |||||
| 16 | 510716 | Clamp Tube |
|
- | |||||
| 17 | 537588 | Nut, Valve |
|
- | |||||
| 18 | 1110393 | Cover |
|
- | |||||
| 19 | WPW10141625 | Screw, 8-32 X 1/2 (2) (Replaces: 488649) |
|
$ 21.16 | |||||
| 20 | WPW10190929 | Mold & Heater (assembly) Includes Item 21 (Replaces: 627815) |
|
$ 233.15 | |||||
| 21 | 627789 | Heater, Mold |
|
- | |||||
| 22 | WP628356 | Bearing & Inlet (Replaces: 627791) |
|
$ 51.19 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 83.60 | |||||
| 24 | WP2182124 | Ice Stripper (Replaces: 627788) |
|
$ 86.05 | |||||
| 25 | WP2195914 | Support (Replaces: 627790) |
|
$ 104.57 | |||||
| 26 | WP2315522 | Retainer, Thermostat (2) (Replaces: 627796) |
|
$ 11.05 | |||||
| 27 | WP627985 | Thermostat (Replaces: 627808) |
|
$ 109.18 | |||||
| 28 | 489121 | Screw, 10-32 X 9/16 (2) |
|
- | |||||
| 29 | W10190935 | Module & Motor Assembly (Replaces: 627816) |
|
Immediately | $ 110.07 | ||||
| 30 | 489122 | Screw, 8-18 X 11/16 (3) |
|
- | |||||
| 31 | WP627792 | Shut Off Arm (Replaces: 627792) |
|
$ 84.53 | |||||
| 32 | WP2187464 | Harness, Wiring (Replaces: 627840) |
|
$ 124.57 | |||||
| 33 | 627751 | Shield, Heat |
|
- | |||||
| 34 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 34 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 34 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 34 | 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 51.44 | |||||
| 34 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | |||||
| 34 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 34 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | ||||
| 34 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 | ||||
| 34 | 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 231.56 | |||||
| 34 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 231.56 | |||||
| 34 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | |||||
| 34 | 261891 | Enamel, Golden Harvest (1 Qt. Uncut) |
|
- | |||||
| 34 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 34 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 34 | 285368 | Enamel, Platinum (1 Qt. Uncut) |
|
- | |||||
| 34 | 833938 | Kit, Terminal Connector |
|
$ 8.07 | |||||
| 34 | 00489128 | Screw, 8-32 X 27/64 (Replaces: 489128) |
|
$ 859.97 | |||||
| 34 | 8003RP | Water Supply Kit (copper Tubing) (Replaces: 978567) |
|
Immediately | $ 43.29 | ||||
| 34 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 34 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 34 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 231.56 | |||||
| 34 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 34 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 49.29 | |||||
| 34 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 78.45 | |||||
| 34 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 34 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 34 | 799908 | Silicone (spray) |
|
- | |||||
| 34 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 89.66 | |||||
| 34 | 350941 | Leveler, Enamel (13 Oz. Spray Can) |
|
- | |||||
| 34 | 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 57.04 | |||||
| 34 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | ||||
| 34 | 261890 | Xenamel, Golden Harvest (13 Oz. Spray Can) |
|
- | |||||
| 34 | 285365 | Paint, Spray (13 Oz.) (toast) |
|
- | |||||
| 34 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 34 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 34 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 34 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | |||||
| 34 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| LIT1108007 | Service & Wiring Sheet |
|
- | ||||||
| LIT1111712 | Energy Label |
|
- | ||||||
| LIT879525 | List, Repair Parts |
|
- | ||||||
| LIT1109124 | Use & Care Guide |
|
- |
