SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf


06 - Freezer Door


07 - Unit


08 - Refrigerator Door


09 - Ice Maker , Not Illustrated

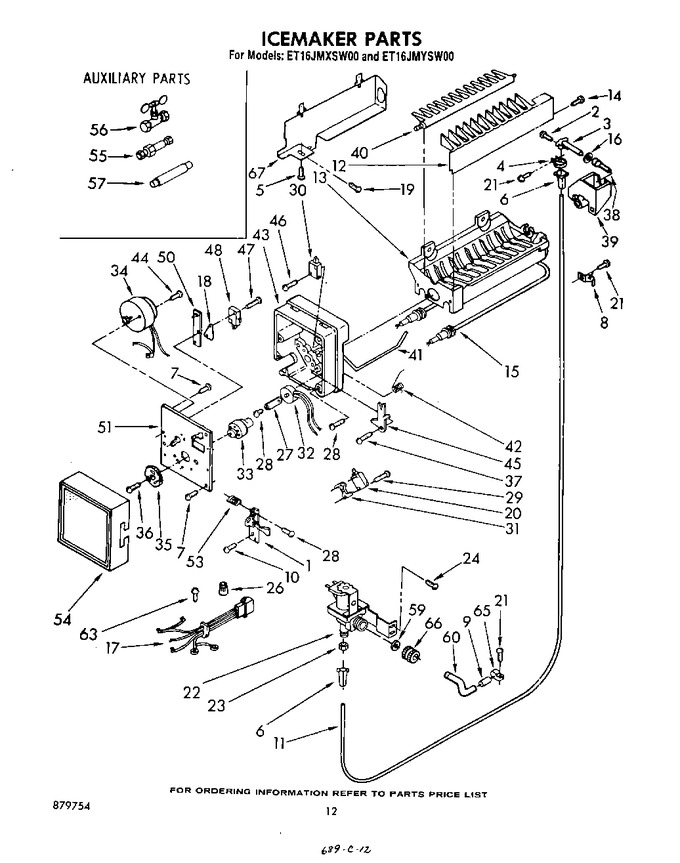

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	627248		Lever & Plate Assembly		Appelez-nous	-
2	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.67
3	WP2196157		Fitting, Water Tube   (Replaces: 836489)			Immediately	$ 11.99
4	WP488878		Clamp, Tube   (Replaces: 488878)				$ 11.60
5	488896		Screw, 8-16 X 3/8		Appelez-nous	-
6	4387491		Insert, Tube (2)   (Replaces: 841707)				$ 7.84
7	WP488787		Screw, 8-18 X 1/2 (3)   (Replaces: 488886)				$ 10.58
8	WP488366		Clamp, Tube (3)   (Replaces: 488366)				$ 11.18
9	WP2158826		Dampener   (Replaces: 836074)				$ 1.73
10	488622		Screw, 4-40 X 1/4		Appelez-nous	-
11	W10823511		Tube, Water   (Replaces: 653415)			Immediately	$ 32.41
12	625840		Stripper, Ice		Appelez-nous	-
13	625856		Mold & Heater Assembly (includes Illus. 15)		Appelez-nous	-
14	00489128		Screw, 8-32 X 11/32   (Replaces: 489128)				$ 859.97
15	625843		Heater, Mold		Appelez-nous	-
16	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.93
17	627750		Harness, Wiring		Appelez-nous	-
18	627680		Insulator, Switch		Appelez-nous	-
19	486214		Screw 8-15 X 1/2		Appelez-nous	-
20	627848		Switch		Appelez-nous	-
21	WP489069		Screw, 8 X 1/2   (Replaces: 488645)			Immediately	$ 7.86
22	4318047		Valve, Solenoid   (Replaces: 627820)			Immediately	$ 74.09
23	WP627018		Nut, Compression   (Replaces: 627018)				$ 10.97
24	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488649)				$ 21.16
26	227991		Connector Wire		Appelez-nous	-
27	625829		Clamp, Thermostat		Appelez-nous	-
28	488372		Screw, 8-32 X 1		Appelez-nous	-
29	488361		Screw, 4-40 X 1 (2)		Appelez-nous	-
30	625851		Switch, S.p.d.t.		Appelez-nous	-
31	625834		Spacer, Holding Switch				$ 7.99
32	625844		Thermostat		Appelez-nous	-
33	625913		Cam		Appelez-nous	-
34	625846		Motor		Appelez-nous	-
35	625914		Gear		Appelez-nous	-
36	488957		Screw		Appelez-nous	-
37	627199		Screw, Shoulder		Appelez-nous	-
38	939027		Tube, Water Inlet		Appelez-nous	-
39	544304		Beraing & Inlet		Appelez-nous	-
40	00627375		Ejector   (Replaces: 627375)			Immediately	$ 203.33
41	627003		Arm, Shut-off		Appelez-nous	-
42	625832		Spring, Shut-off Arm		Appelez-nous	-
43	625827		Support		Appelez-nous	-
44	488361		Screw (use W/motor 625846)		Appelez-nous	-
45	625830		Lever, Arm		Appelez-nous	-
46	488360		Screw, 4-24 X 3/4 (2)		Appelez-nous	-
47	00488362		Screw, 4-40 X 3/4 (2)   (Replaces: 488362)				$ 144.58
48	625947		Switch, S.p.s.t.		Appelez-nous	-
50	627024		Plate, Valve Switch		Appelez-nous	-
51	627740		Plate, Mounting		Appelez-nous	-
53	627163		Spring		Appelez-nous	-
54	1100705		Cover		Appelez-nous	-
55	512503		Union, 1/4`` X 3/16``		Appelez-nous	-
56	541157		Valve, Shut-off		Appelez-nous	-
57	978488		Filter Kit		Appelez-nous	-
59	WP16123		Washer   (Replaces: 488292)				$ 7.70
60	627883		Tube, Inlet Valve		Appelez-nous	-
63	488542		Screw, 8-32 X 1/4 (ground)		Appelez-nous	-
65	510716		Clamp Tube		Appelez-nous	-
66	537588		Nut, Valve		Appelez-nous	-
67	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
67	627751		Shield, Heat		Appelez-nous	-
67	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
67	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
67	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
67	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
67	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
67	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
67	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
67	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
67	799908		Silicone (spray)		Appelez-nous	-
67	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
67	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
67	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
67	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
67	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
67	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
67	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
67	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
67	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
67	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
67	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
67	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
67	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
67	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
67	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
67	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
67	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
67	833938		Kit, Terminal Connector				$ 8.07
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	LIT879754		List, Repair Parts		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
	350942		Primer White (13 Oz. Spray Can)				$ 89.66
	LIT1114021		Use & Care Guide		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
	LIT1114148		Service & Wiring Sheet		Appelez-nous	-
	LIT1116051		Energy Label		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
