02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf


06 - Freezer Door


07 - Unit


08 - Refrigerator Door


09 - Ice Maker , Not Illustrated

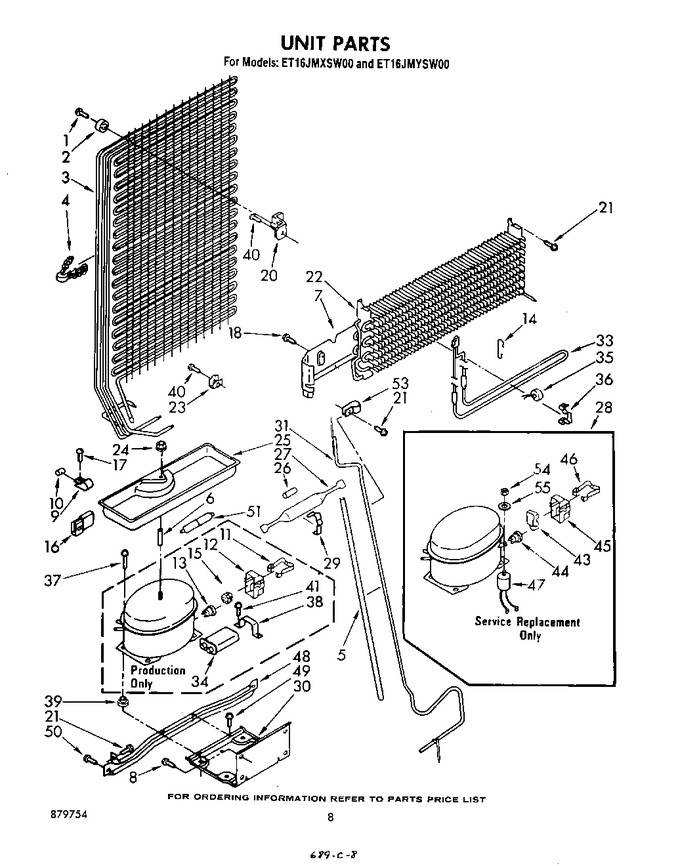

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488163		Screw, 8 X 13/16   (Replaces: 488208)				$ 7.54
2	944772		Bumper (2)		Appelez-nous	-
3	1108012		Condenser & Precooler Assembly		Appelez-nous	-
4	1108037		Clip, Tube (2)		Appelez-nous	-
5	1108073		Sleeve		Appelez-nous	-
6	1105130		Spacer		Appelez-nous	-
7	1108169		Heat Shield Evaporator		Appelez-nous	-
8	WP250830		Screw   (Replaces: 489048)				$ 7.95
9	510716		Tube Clamp		Appelez-nous	-
10	945593		Dampener		Appelez-nous	-
11	938384		Spring, Relay Case		Appelez-nous	-
12	1108144		Case, Relay		Appelez-nous	-
13	1105172		Overload		Appelez-nous	-
14	1108172		Support, Heater		Appelez-nous	-
15	WP2262181		Relay   (Replaces: 1108143)				$ 122.65
16	934326		Housing Plug		Appelez-nous	-
17	489050		Screw, 8-32 X 1/2				$ 692.56
18	WP965173		Screw, 8 X 3/8   (Replaces: 487869)			Immediately	$ 10.72
20	944791		Bracket, Condenser (2)		Appelez-nous	-
21	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
22	942866		Evaporator		Appelez-nous	-
23	4386951		Clip, Condenser Mounting (2)   (Replaces: 942852)		Appelez-nous	-
24	285002		Nut   (Replaces: 489153)				$ 12.24
25	1101002		Evaporator Tray		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 52.57
28	482981		Compressor (includes Items 43, 44, 45, 46, 47, 54, & 55) (also Order 482801 Tray Mounting Kit & 8767		Appelez-nous	-
29	547637		Clamp, Drier		Appelez-nous	-
30	942860		Unit Mounting Plate		Appelez-nous	-
31	1105103		Exchanger, Heat		Appelez-nous	-
33	1105164		Heater, Defrost		Appelez-nous	-
34	1118519		Running Capacitor		Appelez-nous	-
35	WP4387499		Bi-metal, Defrost   (Replaces: 942871)				$ 120.86
36	942873		Clamp		Appelez-nous	-
37	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 7.42
38	WP43449		Clamp, Capacitor   (Replaces: 1118518)				$ 6.18
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
40	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.86
41	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 10.88
43	1100806		Relay		Appelez-nous	-
44	1105077		Overload		Appelez-nous	-
45	1105015		Cover, Terminal		Appelez-nous	-
46	938384		Strap		Appelez-nous	-
47	482996		Capacitor		Appelez-nous	-
48	942859		Unit Mounting Rail		Appelez-nous	-
49	WP965173		Screw   (Replaces: 487248)			Immediately	$ 10.72
50	488973		Screw, 1/4-28 X 1 (2)		Appelez-nous	-
51	1105136		Muffler		Appelez-nous	-
53	489151		Tube, Clamp		Appelez-nous	-
54	489142		Nut		Appelez-nous	-
55	876764		Valve, Access(3/16``)			Immediately	$ 91.35
55	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
55	978028		Valve, Access (1/2)		Appelez-nous	-
55	978029		Valve Access (5/8``)				$ 93.85
55	978030		Valve, Access (3/4``)				$ 130.71
55	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
55	489143		Washer		Appelez-nous	-
55	978026		Valve, Access (5/16``)			Immediately	$ 128.09
