SELECT A DIAGRAM
02 - Cabinet
03 - Liner
04 - Compartment Separator
05 - Shelf
06 - Freezer Door
07 - Unit
08 - Refrigerator Door , Not Illustrated
SELECT A DIAGRAM
New Model Search:

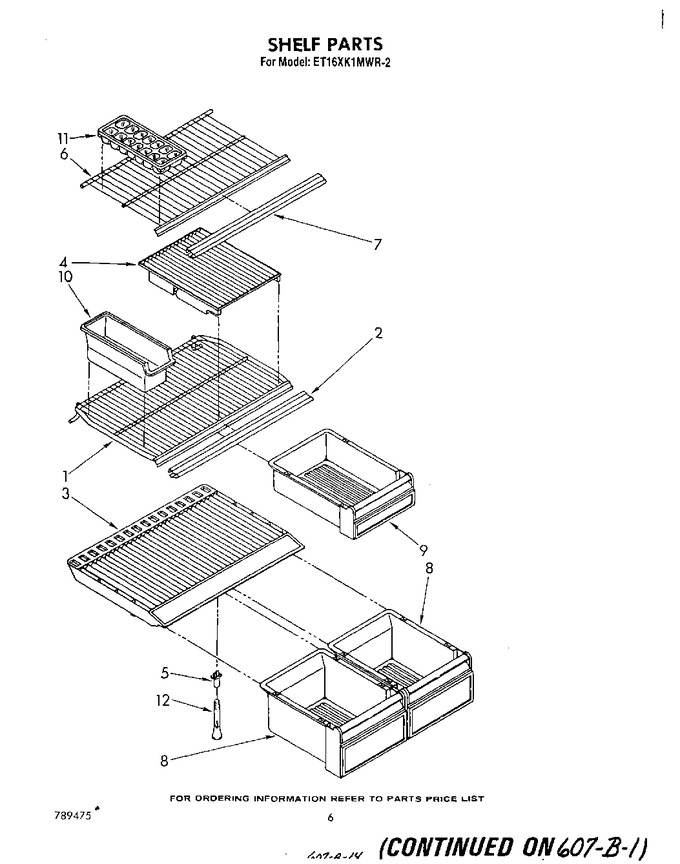

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 942824 | Shelf, Pullout (3) |
|
- | |||||
| 2 | 935749 | Trim, Shelf (3) |
|
- | |||||
| 3 | 942828 | Crisper Cover |
|
- | |||||
| 4 | 1103634 | Cover, Meat Pan |
|
- | |||||
| 5 | 1103731 | Support, Crisper Cover |
|
- | |||||
| 6 | 942837 | Shelf, Freezer |
|
- | |||||
| 7 | 942840 | Trim, Shelf |
|
- | |||||
| 8 | 942831 | Crisper Pan (2) |
|
- | |||||
| 9 | 942834 | Pan, Meat |
|
- | |||||
| 10 | WP982704 | Container, Utility (Replaces: 984899) |
|
$ 32.55 | |||||
| 11 | WP841180A | Ice Tray (Replaces: 841180) |
|
Immediately | $ 47.84 | ||||
| 12 | 836410 | Post, Cripser Cover |
|
$ 5.84 |
