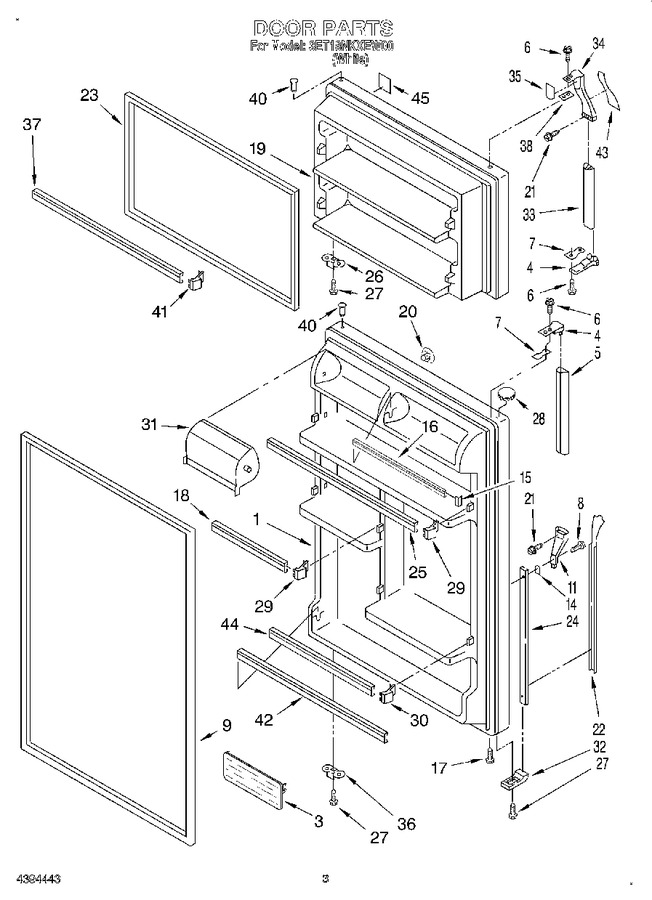

SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171029		Refrigerator Door (includes No.40)		Appelez-nous	-
3	2159303		Shelf, Flip-up		Appelez-nous	-
4	944157		End Cap, Handle (2)		Appelez-nous	-
5	2150150		Handle, Center		Appelez-nous	-
6	WP488920		Screw   (Replaces: 489006)				$ 7.49
7	943188		Spacer				$ 7.80
8	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.79
9	2159057		Door Gasket, Magnetic (mist Beige)   (Replaces: 2171376)			Immediately	$ 164.66
11	1109189		Handle End, Center		Appelez-nous	-
14	935075		Handle Shim		Appelez-nous	-
15	WP2156007		Plug-trim (2)   (Replaces: 2156007)			Immediately	$ 7.65
16	WP2201061		Trim, Door Shelf   (Replaces: 2171040)				$ 118.40
17	WP8281206		Screw   (Replaces: 489028)				$ 7.94
18	2171039		Trim, Door		Appelez-nous	-
19	2182487		Freezer Door (includes No.40)		Appelez-nous	-
20	WP2189000		Hole Plug   (Replaces: 1122653)			Immediately	$ 7.40
21	489022		Screw		Appelez-nous	-
22	2166438		Handle, Insert		Appelez-nous	-
23	2159327		Door Gasket, Magnetic (mist Beige)   (Replaces: 2171374)			Immediately	$ 164.58
24	2159417		Retainer, Insert		Appelez-nous	-
25	2171038		Trim, Door Shelf		Appelez-nous	-
26	944035		Bracket, Door Stop		Appelez-nous	-
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
28	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 7.80
29	WP2195915		Plug-trim (4)   (Replaces: 2156000)				$ 13.07
30	2156001		Plug-trim (2)		Appelez-nous	-
31	WP2218113		Door, Compartment   (Replaces: 2171036)			Immediately	$ 50.33
32	1105804		Endcap, Insert Retainer		Appelez-nous	-
33	2173622		Handle, F.c.		Appelez-nous	-
34	944163		Handle End, Top				$ 53.54
35	935074		Shim		Appelez-nous	-
36	W11745278		Bracket, Door Stop   (Replaces: 2183805)			Immediately	$ 13.37
37	2171037		Trim-door (2)		Appelez-nous	-
38	943187		Shim				$ 25.14
40	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
41	WP2195916K		Endcap (4)   (Replaces: 2156002)			Immediately	$ 12.55
42	2184570		Trim, Door		Appelez-nous	-
43	1108828		Insert, Handle		Appelez-nous	-
44	2171041		Trim, Door		Appelez-nous	-
45	2165148		Nameplate		Appelez-nous	-
