SELECT A DIAGRAM
01 - Cabinet
02 - Door
03 - Liner
04 - Unit

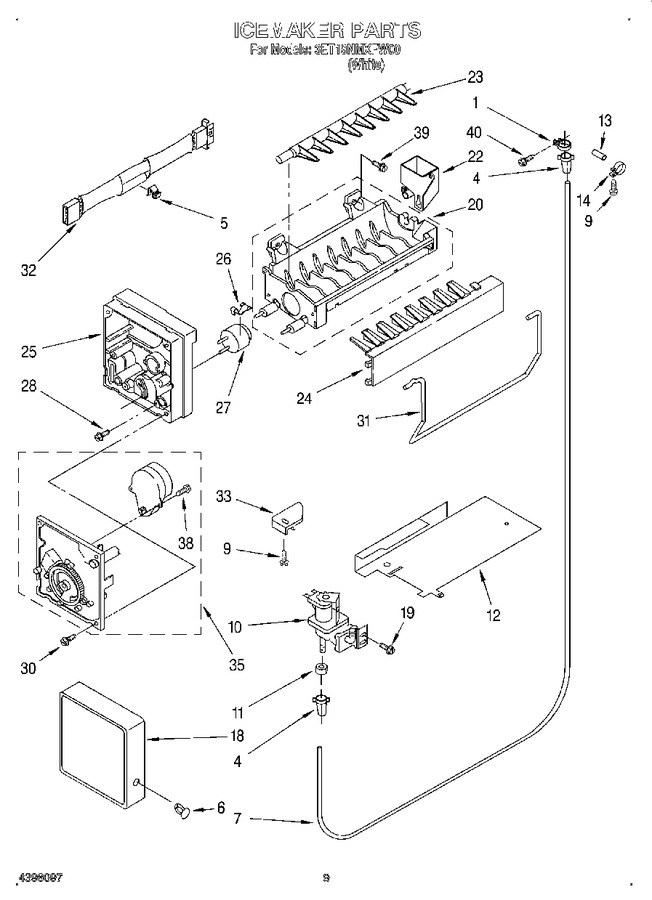

05 - Icemaker
06 - Shelf, Lit/optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488878 | Clamp, Tube (Replaces: 488878) |
|
$ 11.60 | |||||
| 4 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.84 | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 6 | 489115 | Clip |
|
$ 5.51 | |||||
| 7 | W10823511 | Tube, Water (Replaces: 2183156) |
|
Immediately | $ 32.41 | ||||
| 9 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 10 | 2198874 | Valve, Solenoid |
|
- | |||||
| 11 | WP627018 | Nut, Compression (Replaces: 627018) |
|
$ 10.97 | |||||
| 12 | 2256178 | Heat Shield (Replaces: 2182414) |
|
- | |||||
| 13 | 2174755 | Tube, Water Inlet |
|
$ 22.18 | |||||
| 14 | WP488366 | Clamp, Tube (Replaces: 489385) |
|
$ 11.18 | |||||
| 18 | WPW10289690 | Cover (Replaces: 2174183) |
|
Immediately | $ 8.40 | ||||
| 19 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 20 | 628282 | Mold & Heater Assembly (also Order |
|
- | |||||
| 20 | WP542638 | Silicone Grease (Replaces: 542638) |
|
Immediately | $ 12.18 | ||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 51.19 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 83.60 | |||||
| 24 | WP2182124 | Ice Stripper (Replaces: 2182124) |
|
$ 86.05 | |||||
| 25 | WP2195914 | Support (Replaces: 2195914) |
|
$ 104.57 | |||||
| 26 | WP2315522 | Retainer, Thermostat (Replaces: 627796) |
|
$ 11.05 | |||||
| 27 | 542369 | Cement Alumilastic) |
|
- | |||||
| 27 | WP627985 | Thermostat (also Order) (Replaces: 627985) |
|
$ 109.18 | |||||
| 28 | 8533917 | Screw (Replaces: 489322) |
|
$ 13.37 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 31 | WP627792 | Shut Off Arm (Replaces: 627792) |
|
$ 84.53 | |||||
| 32 | WP2187464 | Harness, Wiring (Replaces: 628281) |
|
$ 124.57 | |||||
| 33 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 32.17 | ||||
| 35 | 628377 | Module Assembly (includes Item 38) |
|
- | |||||
| 38 | 489136 | Screw (3-24 X 23/64) |
|
$ 10.29 | |||||
| 39 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 40 | WP488787 | Screw, (8-18 X 1/2) (Replaces: 488886) |
|
$ 10.58 | |||||
| 100 | 4317943 | Complete Icemaker Assembly |
|
Immediately | $ 188.95 |
