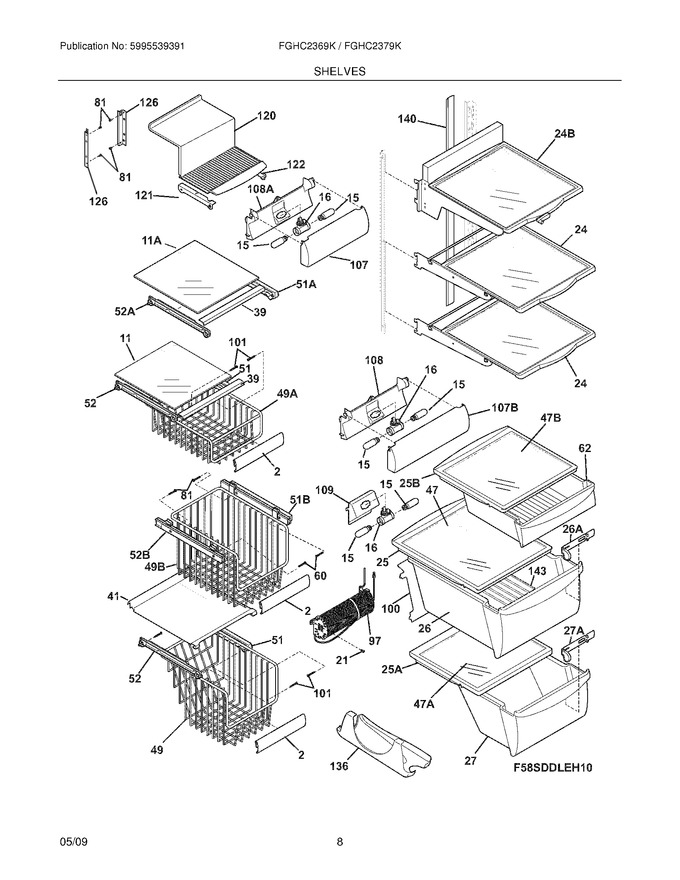

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510608		Trim-basket		Appelez-nous	-
11	241711213		Shelf-freezer,glass ,lower   (Replaces: 240443357)				$ 96.06
15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 81.18
16	241622802		Socket-light,frz Light				$ 73.25
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 16.01
24	240350160		Shelf-``spill-safe``,cantilver ,sliding   (Replaces: 240350137)			Immediately	$ 162.62
25	240599301		Cover-crisper Pan,upper   (Replaces: 240599302)			Immediately	$ 104.87
26	240351061		Pan-crisper,upper   (Replaces: 240351062)			Immediately	$ 122.23
27	240351240		Pan-crisper,lower   (Replaces: 240351241)				$ 226.05
39	240367603		Trim-shelf,11.65`` ,front				$ 82.69
41	241637601		Baffle-air				$ 87.05
47	240350649		Insert-pan Cover,glass			Immediately	$ 137.66
49	241515001		Basket-sliding				$ 209.10
51	241514501		Hanger-basket,rh				$ 81.90
52	241514601		Hanger-basket,lh				$ 85.05
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 13.39
62	241974602		Pan-meat				$ 160.34
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
97	242220510		Water Tank   (Replaces: 241532007)				$ 133.09
100	240326304		Cover-water Tank				$ 81.74
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 14.96
107	241753601		Shield-light,upper				$ 30.91
108	241513301		Cover-wiring,meat Pan Light				$ 64.17
109	241513202		Base-crisper Light Socket				$ 65.21
120	241691701		Shelf-ice Cream				$ 82.69
121	241504701		Rail-ice Cream Shelf,lh				$ 71.66
122	241504702		Rail-ice Cream Shelf,rh				$ 83.42
126	241674402		Channel,auger Mtg ,rh				$ 48.04
126	241674401		Channel,auger Mtg ,lh				$ 52.76
136	241657701		Dispenser-can,white				$ 63.79
140	241812501		Channel,wtr Tube Cover		Appelez-nous	-
143	240423301		Divider-crisper Pan				$ 144.53
11A	240443358		Shelf-freezer,glass ,upper				$ 107.86
24B	240350160		Shelf-``spill-safe``,``aspect`` ,complete   (Replaces: 240424615)			Immediately	$ 162.62
25A	240350903		Cover-crisper Pan,lower				$ 102.21
25B	240599803		Frame-meat Pan,cantilever   (Replaces: 240599802)			Immediately	$ 100.61
26A	241638201		Control-humidity				$ 17.69
27A	240362201		Control-humidity				$ 77.18
47A	240350603		Insert-pan Cover,glass			Immediately	$ 128.36
47B	240443391		Insert-pan Cover,glass			Immediately	$ 137.35
49A	241528001		Basket-sliding,upper ,half				$ 137.79
49B	241514901		Basket-sliding,upper ,full		Appelez-nous	-
51A	241514701		Hanger-shelf Glass,rh				$ 70.88
51B	240579803		Hanger-basket,rh				$ 85.05
52A	241514801		Hanger-shelf Glass,lh				$ 381.94
52B	240579804		Hanger-basket,lh				$ 92.56
F107	241513402		Shield-light,meat Pan				$ 59.90
F108	241753701		Housing-light,upper ,fresh Food				$ 22.58
F26A	241638101		Frame-humidity Control				$ 57.49
FNI	241797601		Harness-wiring		Appelez-nous	-
NI	240349801		Clip-slide,pan-crisper				$ 22.75
NI	241935572		Energy Guide		Appelez-nous	-
NI	240362101		Clip-slide,cover-crisper				$ 52.25
NI	241595202		Clip-slide,pan-crisper				$ 20.22
NI	241781601		Seal-return Air				$ 10.11
