SELECT A DIAGRAM

01 - Control Panel (rev. A-c)


02 - Cylinder & Drive (rev.a-c)

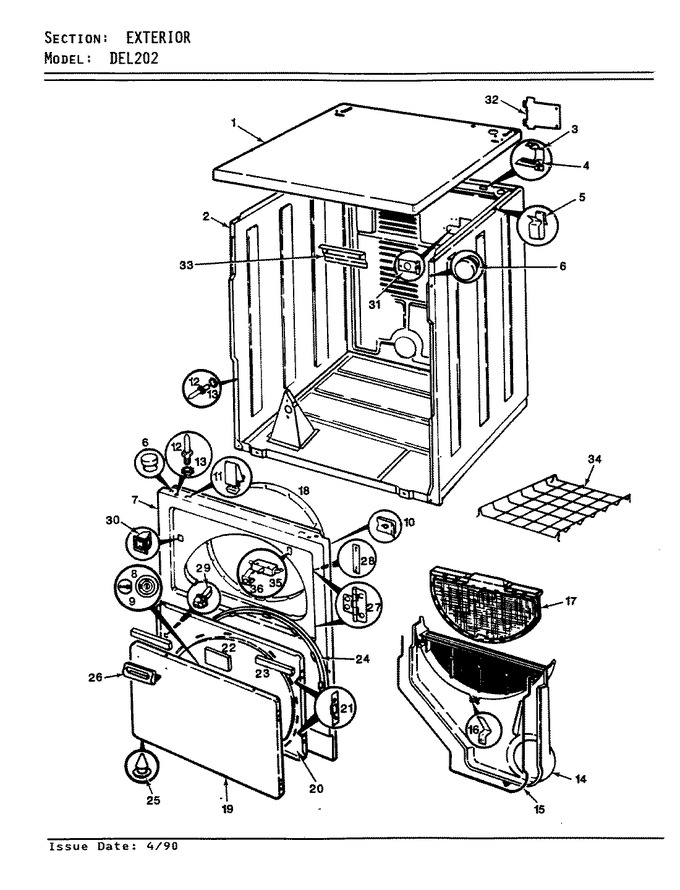

03 - Exterior (rev. A-c)


04 - Heater (rev. A-c)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-0314		Cabinet Top		Appelez-nous	-
2	53-0120		Clip, Front Panel				$ 11.32
3	16515		Clip, Wiring   (Replaces: 25-7027)				$ 18.48
4	WP90767		Screw   (Replaces: 25-7741)			Immediately	$ 7.43
4	53-0153		Shield, Wiring		Appelez-nous	-
5	53-0131		Bulkhead		Appelez-nous	-
5	WP681414		Screw   (Replaces: 25-7733)			Immediately	$ 7.62
6	WP31001637		Seal Assy (gray)   (Replaces: 53-0282)			Immediately	$ 32.15
7	53-0178		Tumbler Assy.		Appelez-nous	-
8	WP3196164		Screw   (Replaces: 25-7759)			Immediately	$ 9.93
8	53-0117		Baffle, Gray		Appelez-nous	-
9	LA-1004		Motor Mtg. Kit (dryer)		Appelez-nous	-
9	341241		Cylinder Belt   (Replaces: 53-1080)			Immediately	$ 16.34
10	53-0189		Motor/pully Asm		Appelez-nous	-
11	53-0936		Motor		Appelez-nous	-
12	25-7811		Screw		Appelez-nous	-
12	53-0105		Bracket		Appelez-nous	-
13	WP660658		Clamp, Motor   (Replaces: 53-0214)				$ 7.40
13	25-7674		Screw		Appelez-nous	-
14	53-0199		Idler Arm		Appelez-nous	-
15	53-0207		Idler Spring		Appelez-nous	-
16	53-0134		Duct, Exhaust		Appelez-nous	-
16	WP90767		Screw   (Replaces: 25-2134)			Immediately	$ 7.43
17	53-0774		Blower Housing		Appelez-nous	-
18	12001324		Seal, Blower Housing   (Replaces: 53-0203)				$ 196.74
18	53-1102		Blower Hsg Cover & Seal		Appelez-nous	-
19	53-0106		Blower Wheel				$ 58.02
20	WP312967		Clamp   (Replaces: 25-7823)			Immediately	$ 11.21
21	25-7812		Retaining Ring		Appelez-nous	-
22	WP33002917		Screw   (Replaces: 25-7807)			Immediately	$ 7.63
22	WP12990527		Screw, Sems   (Replaces: 25-3457)			Immediately	$ 7.88
22	53-1023		Blower Cover		Appelez-nous	-
22	53-1026		Guide, Vane Inlet		Appelez-nous	-
23	WP53-1107		Thermostat, Control (146/121)   (Replaces: 53-1107)				$ 85.31
24	W10124350		Not Required Part Or See Note		Appelez-nous	-
24	WP90767		Screw   (Replaces: 25-2134)			Immediately	$ 7.43
25	W10124350		Not Required Part Or See Note		Appelez-nous	-
26	W10124350		Not Required Part Or See Note		Appelez-nous	-
27	W10124350		Not Required Part Or See Note		Appelez-nous	-
28	W10124350		Not Required Part Or See Note		Appelez-nous	-
28	LA-1006		Glide Kit, Tumbler			Immediately	$ 26.38
29	WP31001356		Rh Gld Cushion   (Replaces: 53-0182)				$ 79.97
30	12002126		Front Roller Kit   (Replaces: LA-1007)				$ 134.31
30	WP31001469		Rh Cyl Glide   (Replaces: 53-0183)				$ 69.99
31	WP3351614		Screw   (Replaces: 25-7101)			Immediately	$ 6.57
42	WP25-7854		Retaining Ring   (Replaces: 25-7574)				$ 11.21

    View Diagram in Separate Window       Print Part List
