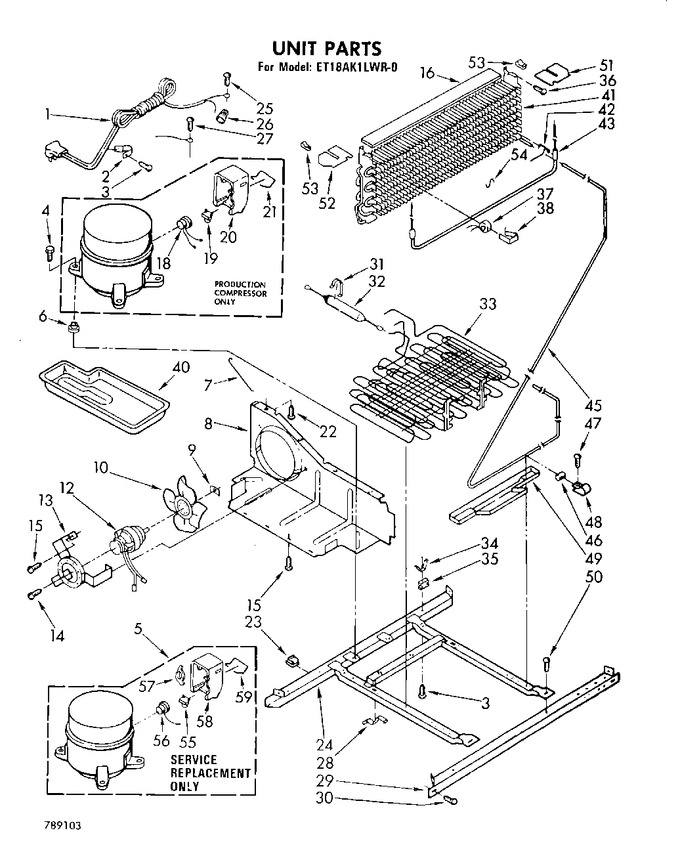

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 850626 | Cord, Service |
|
- | |||||
| 2 | 549193 | Clamp-cord |
|
$ 14.06 | |||||
| 3 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 4 | 876811 | Screw, 1/4-28 X 1 (4) (Replaces: 489116) |
|
$ 7.79 | |||||
| 5 | W10439652 | Compressor Kit (includes Items 55, 56, 57, 58 & 59) (also Order 876765 Tube Kit) (Replaces: 702217) |
|
$ 442.20 | |||||
| 6 | 876811 | Grommet (4) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 7 | 850156 | Guard, Fan |
|
- | |||||
| 8 | 850764 | Baffle, Air |
|
- | |||||
| 9 | WP486692 | Speednut, 1/4-20 (Replaces: 486692) |
|
$ 8.43 | |||||
| 10 | 989524 | Fan |
|
- | |||||
| 12 | 833697 | Motor (Replaces: 938164) |
|
Immediately | $ 88.15 | ||||
| 13 | 548695 | Bracket, Motor |
|
- | |||||
| 14 | 488868 | Screw |
|
- | |||||
| 15 | 488624 | Screw, 8 X 3/8 |
|
- | |||||
| 16 | 937289 | Baffle, Evaporator |
|
- | |||||
| 18 | 946616 | Overload |
|
- | |||||
| 19 | 946615 | Relay |
|
- | |||||
| 20 | 938383 | Case, Relay |
|
- | |||||
| 21 | 938384 | Spring |
|
- | |||||
| 22 | 489050 | Screw, 8-32 X 1/2 |
|
$ 692.56 | |||||
| 23 | 548745 | Clip, Wire (2) |
|
- | |||||
| 24 | 945461 | Frame |
|
- | |||||
| 25 | 488474 | Screw, 8-32 X 3/8 |
|
- | |||||
| 26 | 227991 | Connector Wire |
|
- | |||||
| 27 | 303776 | Screw, 8-32 X 5/16 (2) (Replaces: 488879) |
|
- | |||||
| 28 | 548744 | Clip (2) |
|
- | |||||
| 29 | 548663 | Rail, Front |
|
- | |||||
| 30 | 489340 | Screw, 5/16-18 X 5/8 (4) (Replaces: 488683) |
|
- | |||||
| 31 | 548508 | Clamp |
|
- | |||||
| 32 | W10843121 | Dryer (Replaces: 945424) |
|
Immediately | $ 57.13 | ||||
| 33 | 943480 | Condenser & Precooler Assembly |
|
- | |||||
| 34 | 548738 | Clamp (4) |
|
- | |||||
| 35 | 943447 | Grommet (4) |
|
- | |||||
| 36 | W11693756 | Screw, 8 X 5/8 (Replaces: 488687) |
|
Immediately | $ 14.76 | ||||
| 37 | WP4387489 | Bimetal, Defrost (Replaces: 937303) |
|
$ 108.99 | |||||
| 38 | 513584 | Clamp |
|
- | |||||
| 40 | 842041 | Tray, Evaporating |
|
$ 64.92 | |||||
| 41 | 938337 | Evaporator |
|
- | |||||
| 42 | 850721 | Clip, Heater (2) |
|
- | |||||
| 43 | 937302 | Heater, Defrost |
|
- | |||||
| 45 | 946541 | Exchanger, Heat |
|
- | |||||
| 46 | 510769 | Dampener (2) |
|
- | |||||
| 47 | WPW10141625 | Screw, 8-32 X 1/2 (2) (Replaces: 488197) |
|
$ 22.22 | |||||
| 48 | 510716 | Clamp (2) |
|
- | |||||
| 49 | 945572 | Pan, Drip |
|
- | |||||
| 50 | 488454 | Screw, 1/4-28 X 1/2 (2) |
|
- | |||||
| 51 | 939106 | Baffle, R.s. |
|
- | |||||
| 52 | 939105 | Baffle, L.s. |
|
- | |||||
| 53 | 939104 | Retainer, Baffle (2) |
|
- | |||||
| 54 | 851358 | Support, Heater |
|
- | |||||
| 55 | 549500 | Relay |
|
- | |||||
| 56 | 936073 | Overload |
|
- | |||||
| 57 | 549086 | Overload Spring |
|
- | |||||
| 58 | 549336 | Cover |
|
- | |||||
| 59 | 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 54.01 | |||||
| 59 | 261888 | Xenamel, New Avocado (13 Oz. Spray Can) |
|
- | |||||
| 59 | 261890 | Xenamel, Golden Harvest (13 Oz. Spray Can) |
|
- | |||||
| 59 | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| 59 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 59 | 515393 | Transformer (115-230 Volt) |
|
- | |||||
| 59 | 789103 | List, Repair Part |
|
- | |||||
| 59 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 59 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | |||||
| 59 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 59 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 59 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 59 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 59 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 59 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 59 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 59 | 946810 | Energy Guide |
|
- | |||||
| 59 | 942950 | Care & Use Guide |
|
- | |||||
| 59 | 946809 | Consumer Buy Guide |
|
- | |||||
| 59 | 946621 | Tech Sheet |
|
- | |||||
| 59 | 549342 | Strap |
|
- | |||||
| 59 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 59 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 59 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 59 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 59 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 59 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 59 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 59 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 59 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 243.14 | |||||
| 59 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 59 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | |||||
| 59 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | |||||
| 59 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 59 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 59 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 94.14 | |||||
| 59 | 350941 | Leveler, Enamel (13 Oz. Spray Can) |
|
- | |||||
| 59 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 59 | 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | |||||
| 59 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 109.25 | |||||
| 59 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 60.28 | |||||
| 59 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 59 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 59 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | |||||
| 59 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 59 | 285368 | Enamel, Platinum (1 Qt. Uncut) |
|
- | |||||
| 59 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 59 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 59 | 261887 | Enamel, Coffee (1 Qt. Uncut) |
|
- | |||||
| 59 | 261889 | Enamel, New Avocado (1 Qt. Uncut) |
|
- | |||||
| 59 | 261891 | Enamel, Golden Harvest (1 Qt. Uncut) |
|
- | |||||
| 59 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 59 | 285365 | Paint, Spray (13 Oz.) (toast) |
|
- | |||||
| 59 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 59 | 261886 | Enamel, Coffee (13 Oz. Spray Can) |
|
- |
