SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf


06 - Freezer Door


07 - Unit


08 - Refrigerator Door , Parts Not Illus

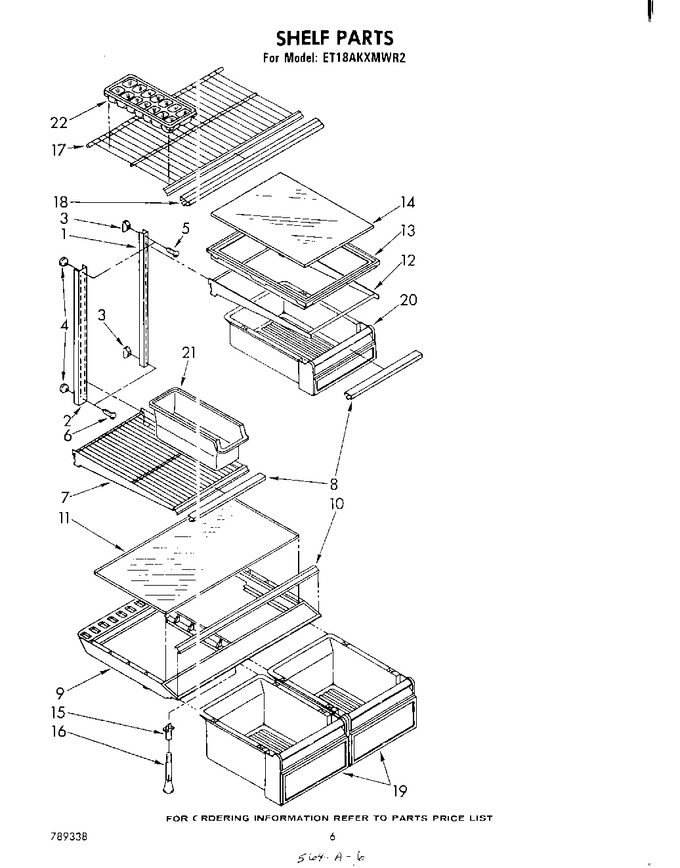

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1103177		Shelf, Ladder (2)		Appelez-nous	-
2	1103178		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 29.86
4	520959		Screw, Support Center (2)		Appelez-nous	-
5	489023		Screw, 8-32 X 1-1/4 (3)		Appelez-nous	-
5	488980		Screw (repair)		Appelez-nous	-
6	488357		Screw, 8 X 1-1/4 (3)		Appelez-nous	-
7	1104293		Shelf, Cantilever (3)		Appelez-nous	-
8	1104614		Trim, Shelf		Appelez-nous	-
9	1100702		Cover, Crisper (for Platinum Model Only)		Appelez-nous	-
9	943654		Cover, Crisper		Appelez-nous	-
10	946436		Trim, Crisper Cover		Appelez-nous	-
11	943779		Glass, Crisper Cover		Appelez-nous	-
12	1104615		Pan Shelf, Cantilever		Appelez-nous	-
13	1104616		Pan, Slide & Cover		Appelez-nous	-
13	1104647		Pan, Slide & Cover (for Platinum Model Only)		Appelez-nous	-
14	1104619		Glass, Meat Cover		Appelez-nous	-
15	1103731		Support, Crisper Cover		Appelez-nous	-
16	836410		Post, Cripser Cover				$ 5.84
17	944734		Shelf, Freezer		Appelez-nous	-
18	943728		Trim, Shelf (front)		Appelez-nous	-
19	946438		Pan, Crisper (for Platinum Model Only)		Appelez-nous	-
19	943735		Pan, Crisper		Appelez-nous	-
20	1104626		Pan, Meat		Appelez-nous	-
20	1104648		Pan, Meat (for Platinum Model Only)		Appelez-nous	-
21	WP982704		Container, Utility   (Replaces: 1100491)				$ 31.00
22	WP841180A		Ice Tray   (Replaces: 944744)			Immediately	$ 45.56

    View Diagram in Separate Window       Print Part List
